DAELIM S-FIVE Service Manual

IGNITION SYSTEM
SIDE STAND IGNITION
CUT-OFF SWITCH

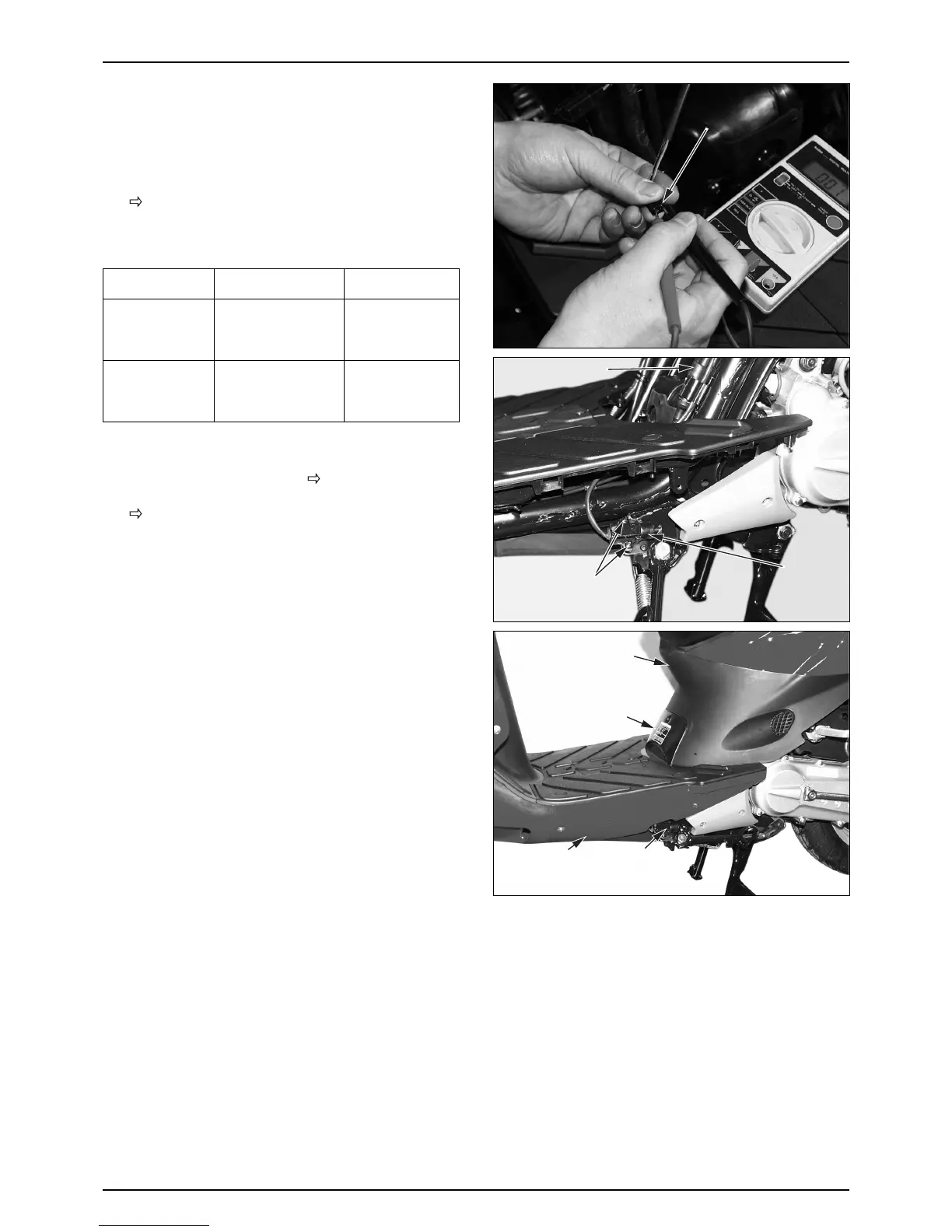

INSPECTION
● Remove the plug maintenance cover/ center cover.
(
3-3 )
● Remove the coupler of the side stand switch.
● Check for continuity between the terminal as shown
below:
REMOVAL
● Remove the floor side cover. ( 3-4 )
● Remove the plug maintenance cover/ center cover.
(
3-3 )
● Remove the side stand switch mounting 2 bolts.
● Release the wire clamps and remove the side stand
switch.
INSTALLATION
● Install in the reverse order of removal.
14-8
SIDE STAND
SWITCH COUPLER
BOLTS
SIDE
STAND
SWITCH
CLAMP
FLOOR SIDE
COVER
SIDE STAND
SWITCH
CENTER COVER
PLUG MAINTENANCE
COVER
ON
(Side stand is
Retracted)
OFF
(Side stand is
Lowered)
NO
CONTINUITY
CONTINUITY
BLACK/WHITE
AND GREEN
BLACK/WHITE
AND GREEN
ITEM TERMINAL SPECIFICATION
