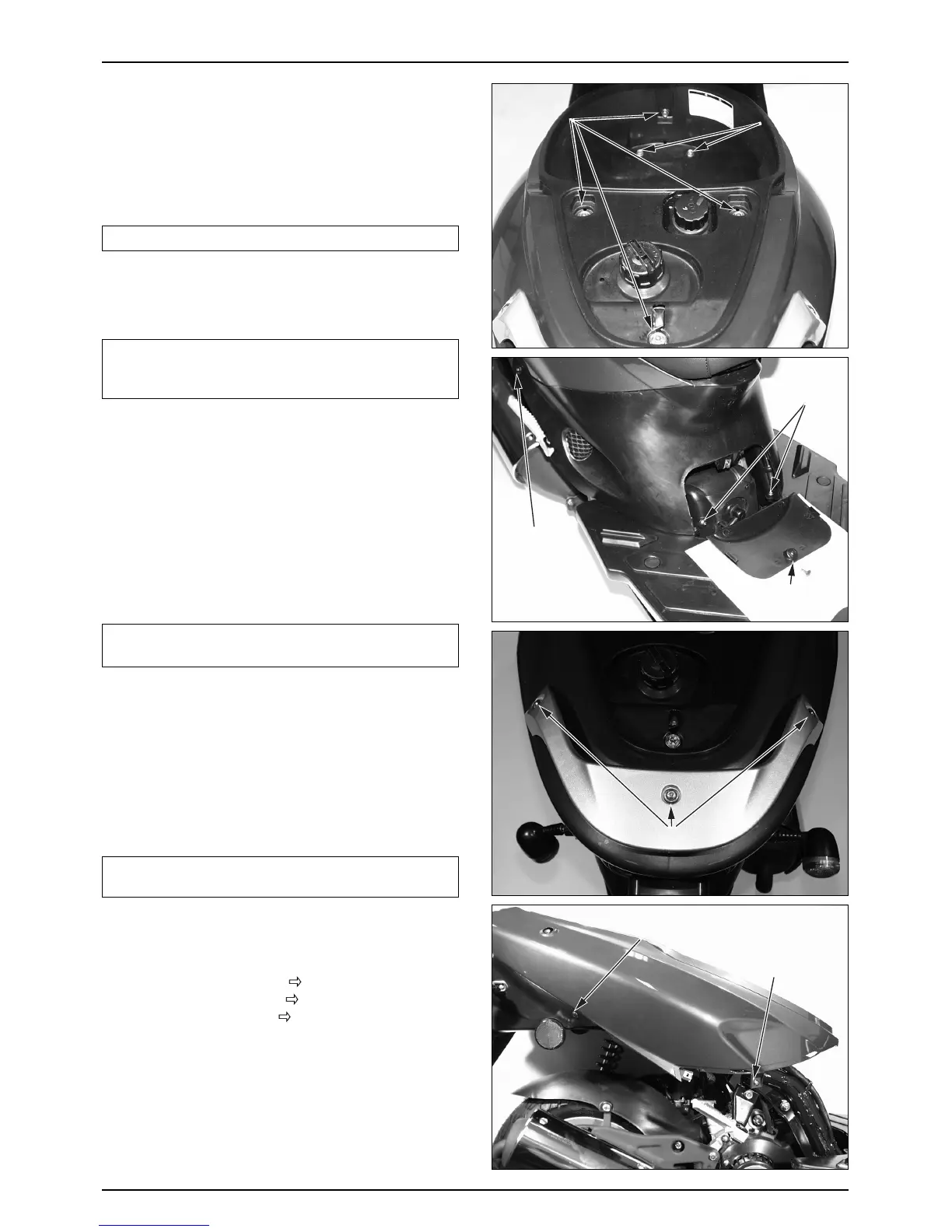

3-3
EXTERNAL PARTS
WASHER BOLT
FLANGE BOLT
SPECIAL SCREW
SPECIAL SCREW
TAPPING SCREW
SPECIAL BOLT
BODY COVER CLIP
SPECIAL SCREW
LUGGAGE BOX
Release the seat lock using the main key to open the
seat.
Loosen 4 washer bolts and 2 flange bolts.
Remove the oil tank cap and the fuel tank cap.
NOTE
Luggage box can be removed with the seat.
Remove the luggage box.
Install in the reverse order of removal.
CAUTION
Install the oil tank cap and the fuel tank cap
temporarily to prevent the foreign material from
entering after removing the luggage box.
PLUG MAINTENANCE COVER/CENTER COVER
Release the seat lock using the main key to open the
seat.
Loosen the washer bolt securing the luggage box.
Loosen the special screw to remove the plug
maintenance cover.
Loosen 2 tapping screw securing the floor panel.
Loosen 2 special screw (R/L) securing the body cover.
Remove the center cover.
CAUTION
If removal is difficult, recheck each connection and
then try removing again.
Install in the reverse order of removal.
REAR CARRIER
Loosen 3 special bolts securing the top of the body
cover.
Remove the rear carrier.
Install in the reverse order of removal.
CAUTION
Pay attention not to break of damage the rear carrier
when installing or removing.
BODY COVER
Remove the luggage box. ( 3-3)
Remove the center cover. (
3-3)
Remove the rear carrier. (
3-3)
Loosen 2 special screw (R/L) securing the frame body.
Loosen 2 body cover clip (R/L) securing the tail light
base.
Remove the body cover.
Install in the reverse order of removal.
