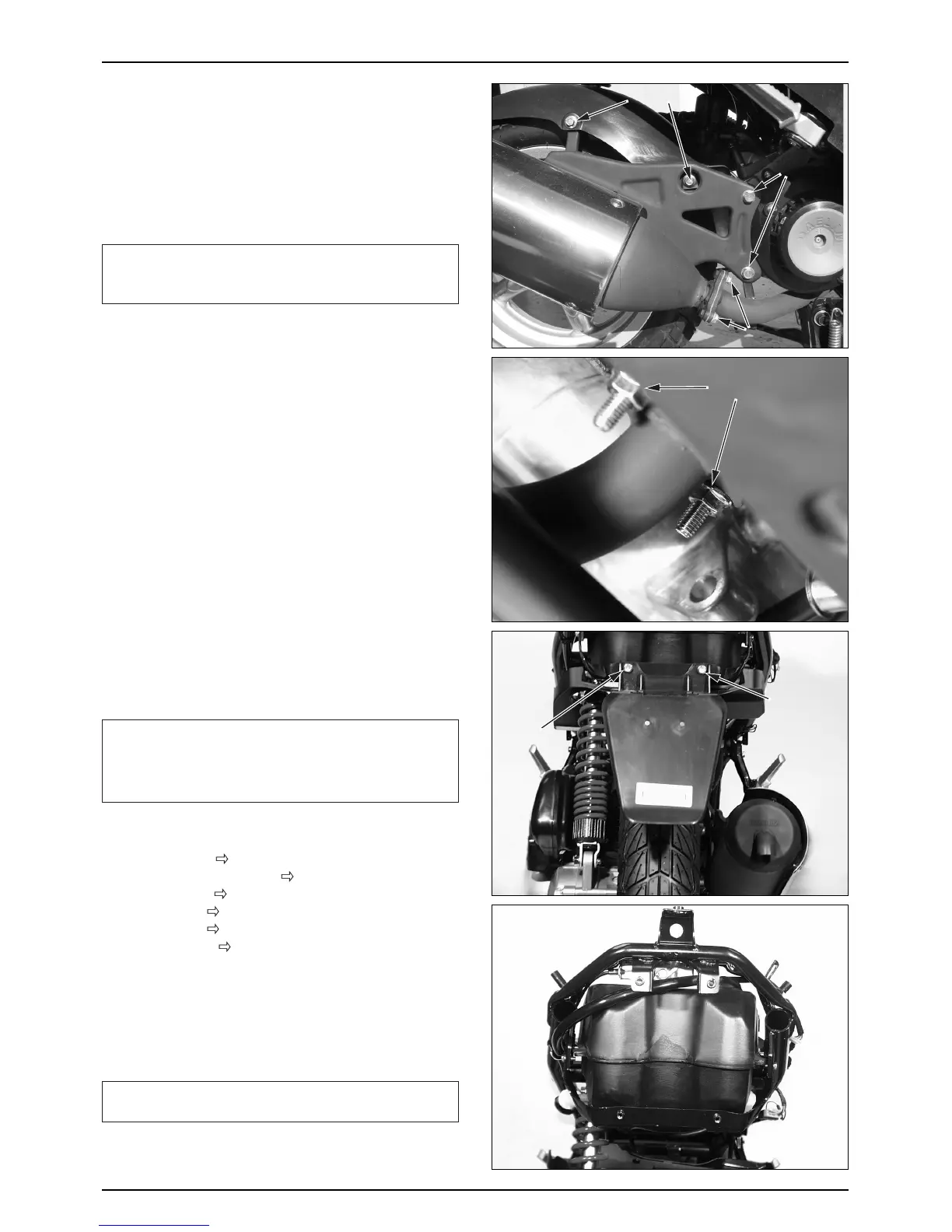

MUFFLER
● Loosen the 3 flange nuts securing the EX pipe comp.
● Loosen the 2 flange bolts securing the R. crankcase.
● Loosen the 2 flange bolts securing the rear wheel mud
guard.
● Remove the EX muffler comp.
WARNING
•Never perform the maintenance of the muffler right
after stopping the vehicle because the muffler is
extremely hot
EX. PIPE REMOVAL
● Loosen the 2 flange bolts securing the cylinder comp.
● Remove the EX pipe by drawing it to the ground
direction.
INSTALLATION
● Install the 2 flange bolts after securing the EX pipe
with the stud bolt of the cylinder comp.
● Install the gasket on the EX muffler, connect the EX
pipe and install the 2 flange nuts temporarily.
● Install the 2 flange bolts on the R. crankcase
temporarily.
● Tighten the 3 flange nuts to install the EX muffler and
the EX pipe.
● Install the 2 flange bolts on the rear wheel mud guard.
● Tighten the muffler securing 2 flange bolts to install the
R. crankcase.
● Tightening torque of the R. crankcase.
TORQUE : 3.3kgf
··
m
CAUTION
•When installing the gasket, replace it with the new
one.
•Check to see if there is any evacuation after installing
the muffler.
REAR FENDER
● Luggage box. ( 3-3)
● Plug maintenance cover. (
3-3)
● Center cover. (
3-3)
● Rear carrier. (
3-3)
● Body cover. (
3-3)
● Taillight base. (
3-4)
● Remove the 2 washer bolts securing the fuel tank
support stay.
● Draw the rear part of the rear fender from the bracket in
the frame.
●
Loosen the rear cushion under bolt, remove the rear fender.
CAUTION
•If removal is difficult, recheck each connection and
try removing again.
● Install in the reverse order of removal.
