5-4
FUEL SYSTEM
FLANGE BOLT
WASHER BOLT
WASHER
SCREW
AIR CLEANER ELEMENT
CONNECTING
BEND
CARBURETOR
CARBURETOR
INSULATOR
CARBURETOR
INSULATOR
FLANGE BOLT

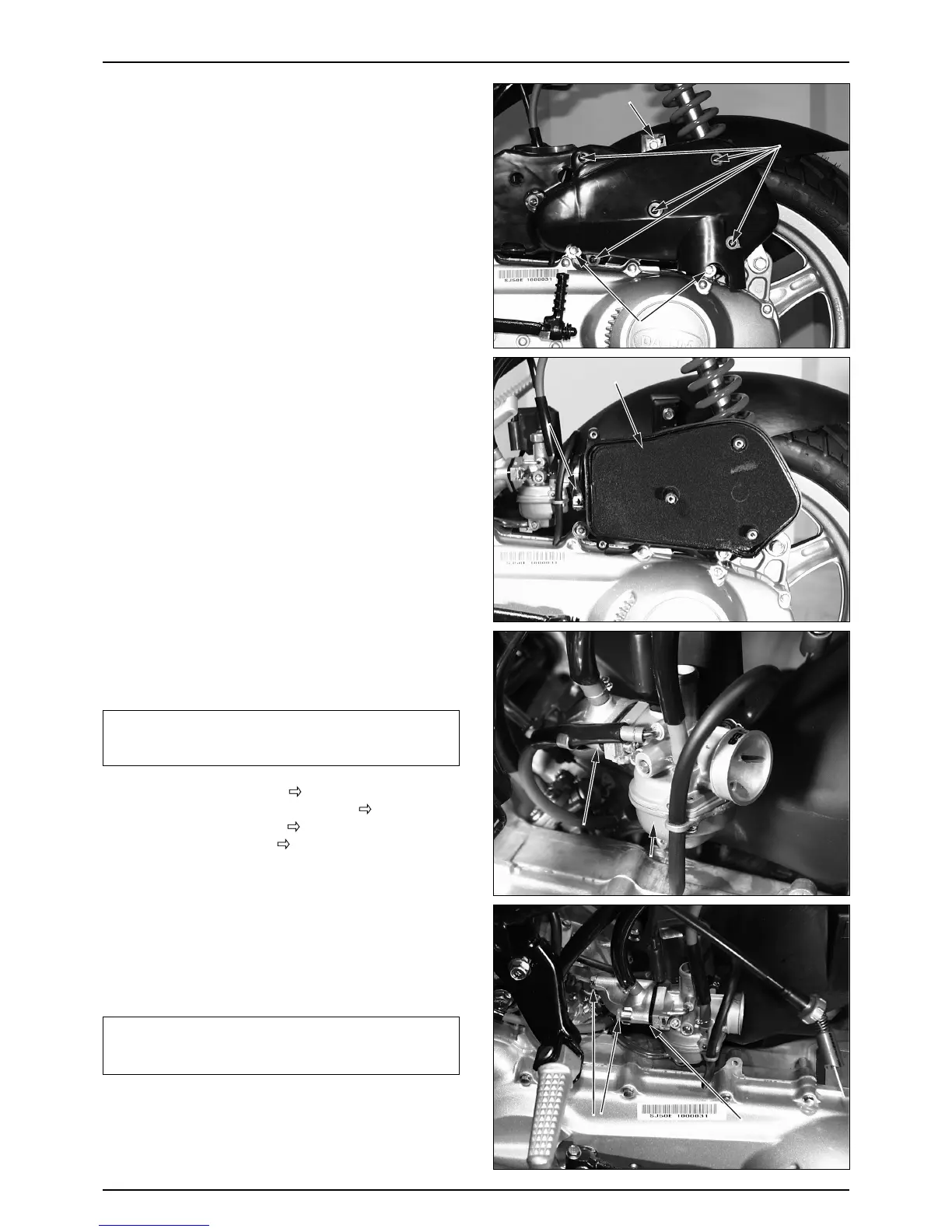

AIR CLEANER REMOVAL
● Loosen the air cleaner connecting bend screw pin.
● Loosen the 2 bottom air cleaner washer bolts.
● Loosen the top rear fender flange bolt.
● Remove the air cleaner from the carburetor.
● Install in the reverse order of removal.
AIR CLEANER ELEMENT DISASSEMBLY
● Loosen the 5 air cleaner cover washer screws.
● Remove the air cleaner cover.
● Remove the air cleaner element.
● Install in the reverse order of disassembly.
CARBURETOR REMOVAL/INSTALLATION
NOTE
•Keepthefireaway.
•Open the drain screw to drain the gasoline in the
carburetor chamber.
● Remove the luggage box. (
3-3)
● Remove the plug maintenance cover. (
3-3)
● Remove the center cover. (
3-3)
● Remove the air cleaner. (
5-4)
● Remove the wiring coupler of the auto by starter.
● Remove the oil pass tube.
● Remove the throttle valve set.
● Remove the 2 flange bolts securing the inlet pipe.
● Remove the carburetor insulator.
● Remove the carburetor.
● Install in the reverse order of removal.
NOTE
•Install the carburetor after aligning the throttle valve
cutaway and the throttle stop screw.
•Tighten the top set correctly so that it is not released.
