DAELIM S-FIVE Service Manual

10-22

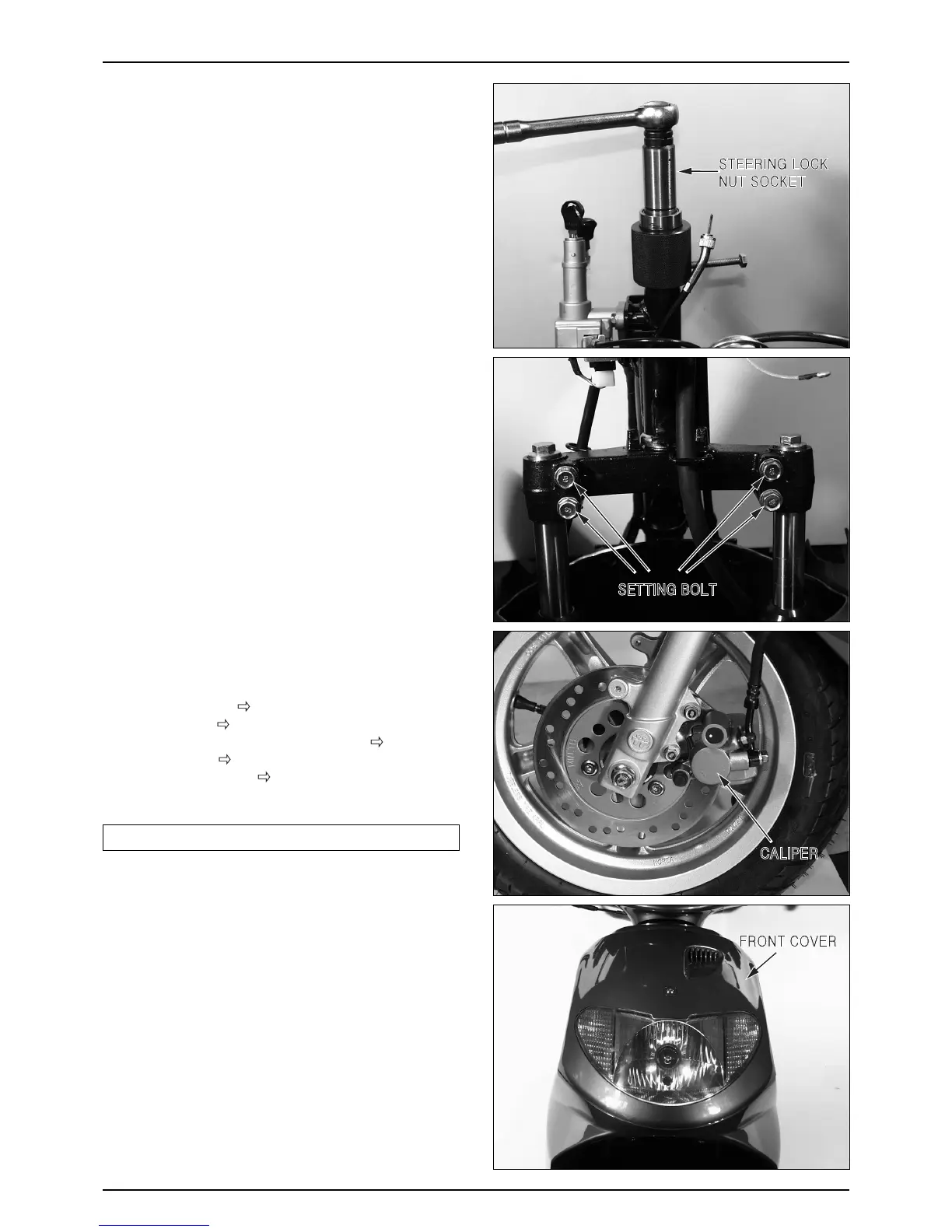

FRONT WHEEL/FRONT FORK/STEERING
● Install the top cone race and the steering head top
thread nut on the steering head.
● Tighten the top thread nut completely, and loosen by
1/8 turn.
TORQUE VALUE : 1.0
㎏
f
·
m
● Check the top and bottom free play, and check for
smooth left and right movement.
● Temporarily install the R/L front forks first, and tighten
the steering stem nuts.
TORQUE VALUE : 7.0kgf
·
m
TOOLS : LOCK NUT WRENCH
EXTENSION BAR
● Install the front fork.
● Install the following parts.
-Steering handle (
10-3)
- Front wheel (
10-5 )
- Front handle cover/ rear handle cover (
3-6 )
- Front fender ( 3-5 )
- Front brake caliper (
12-7 )
NOTE
·Check the cables and wiring for interference.
● Install the front cover.

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
