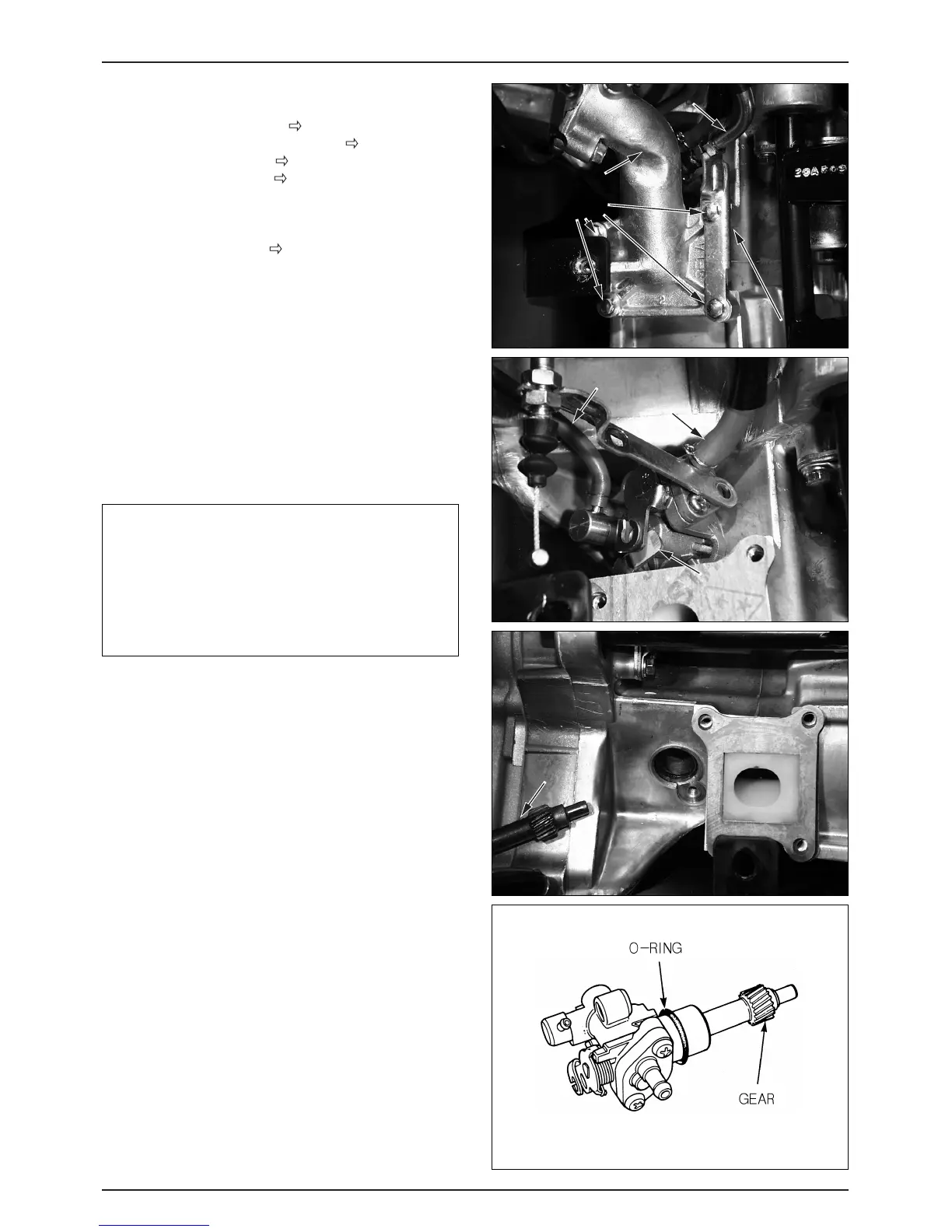

OIL PUMP DISASSEMBLY/ASSEMBLY
Remove the luggage box. ( 3-3)
Remove the rear wheel mud guard. (
3-8 )
Remove the air cleaner. (
5-4 )
Remove the carburetor. (
5-4 )
Loosen the oil pump cable stay bolt to remove the oil
pump anchor plate.
Disconnect the oil control cable from the oil pump.
Remove the inlet pipe. (
5-9)
Remove the oil tube in the oil pump side.
Remove the oil pass tube.
Loosen the flange bolt securing the oil pump.
Remove the setting plate of the oil pump.
Remove the oil pump.
Install in the reverse order of removal.
CAUTION
When assembling/disassembling the oil pump, do
not allow foreign substances from entering the
engine and oil tube by cleaning around the oil pump.
If the air enters into the oil line, it may cause faulty
lubrication or engine sticking. Always remove the air
in the oil line after maintenance.
Pay attention not to damage the O-ring when
assembling the oil pump.
OIL PUMP INSPECTION/ADJUSTMENT
Remove the oil pump.
Rotate the shaft and check for proper rotation.
Check the gear for wear, damage and leak of each seal.
If the oil comes out from the outlet of the oil pump
after connecting the oil tube (which is connecting
between the tank and the oil pump) to the inlet and
rotating the shaft in the driving direction, consider the
oil pump is in good condition.
4-3
LUBRICATION SYSTEM
FLANGE BOLT
OIL ANCHOR PLATE
INLET PIPE
OIL PUMP CONTROL CABLE
OIL PASS TUBE
OIL TUBE
SETTING PLATE
OIL PUMP
