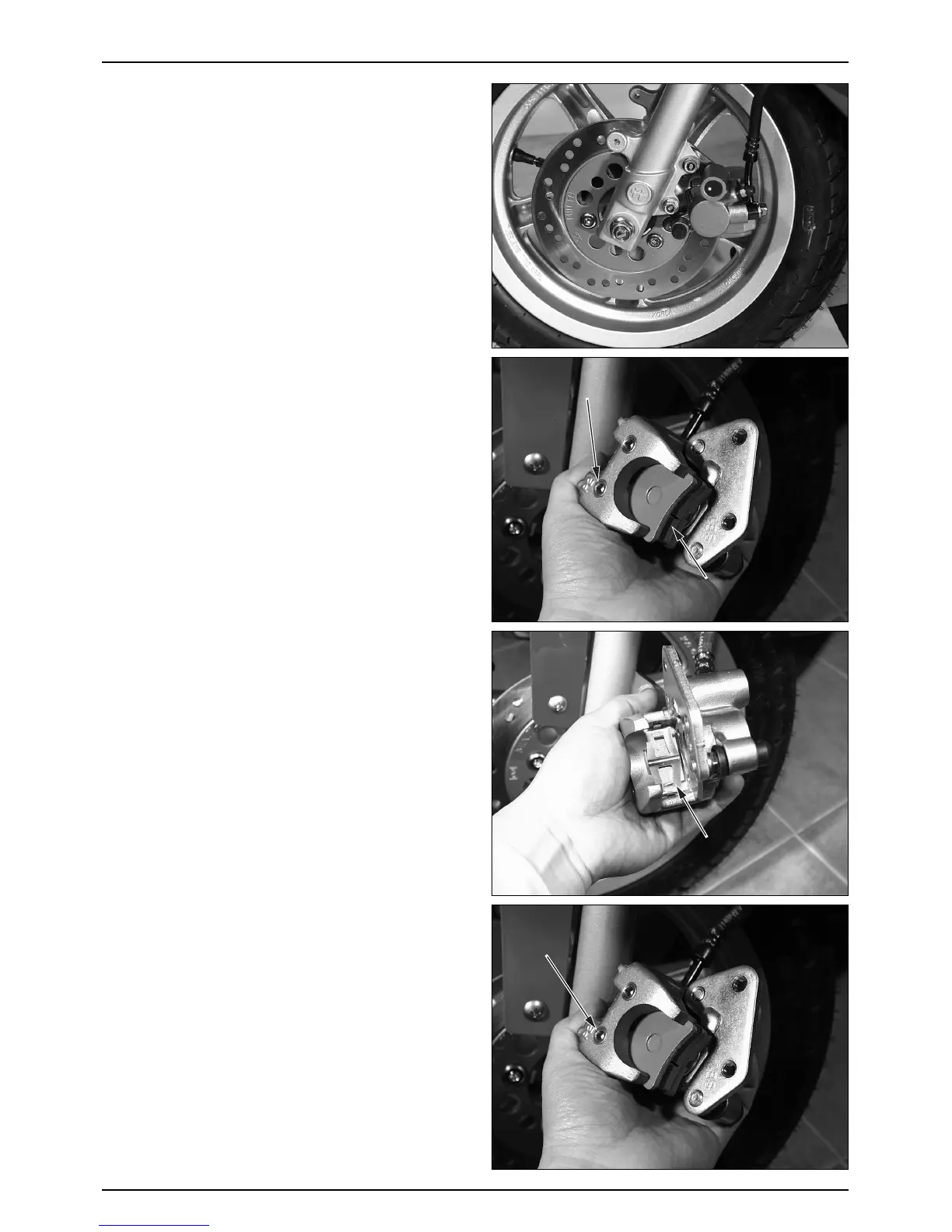

12-5
BRAKE SYSTEM
HANGER PIN
PAD
PAD SPRING
HANGER PIN
Loosen the 2 front brake caliper fixing bolts from the
front fork.
Remove the front caliper.
To install a new brake pad into the brake, press the
piston to return to the original position.
Remove the hanger pin, pad shim, and brake pad.
Verify that the pad spring is installed in specific
position.
Install a new brake pad, pad shim, and hanger pin.
