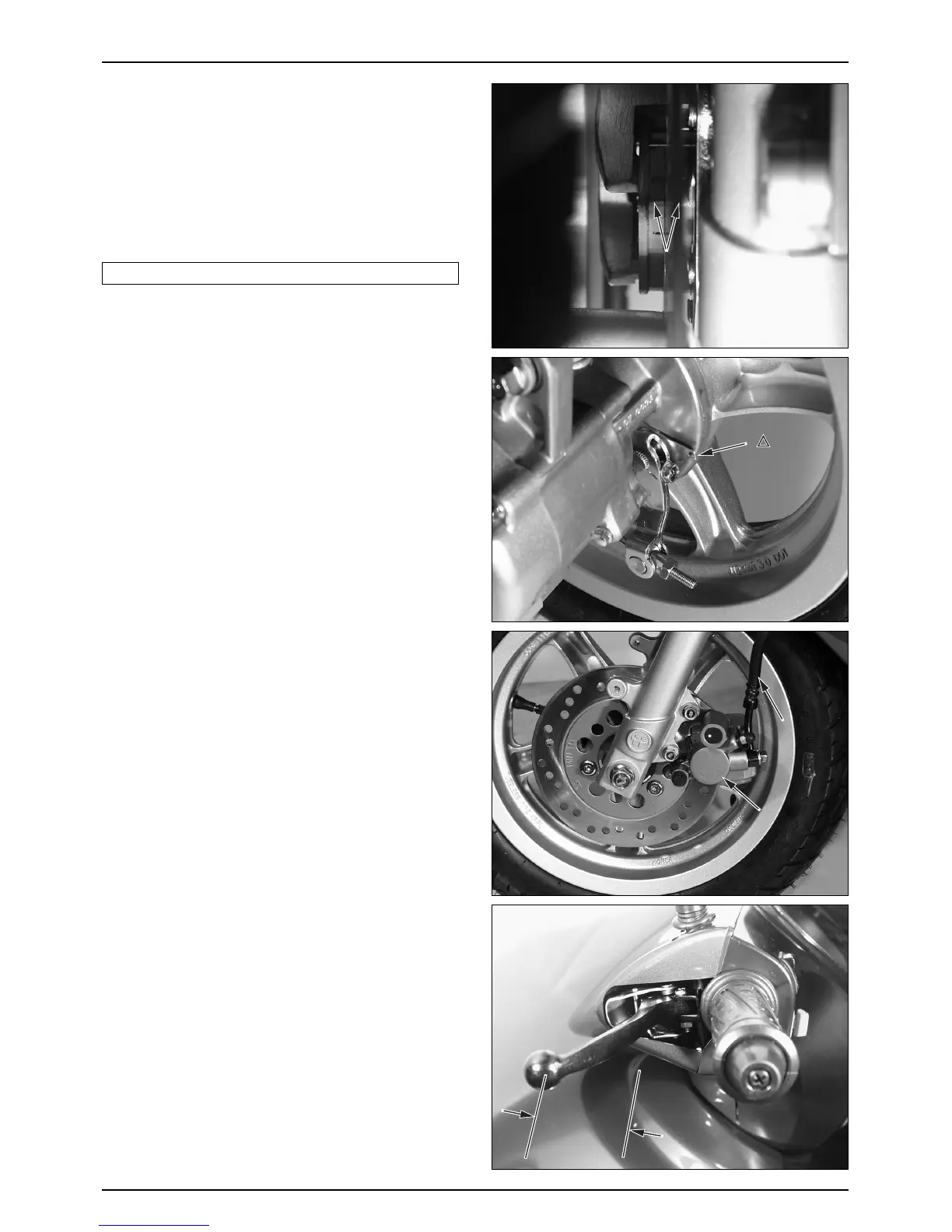

BRAKE PAD/SHOE
BRAKE PAD REPLACEMENT
● Check the brake pads for wear.
● If the red mark on the pad reaches the brake disc,
replace the pads.
NOTE
•Replace the brake pads in sets.
BRAKE SHOE REPLACEMENT
● If the arrow mark of the wear limit aligns with the ‘△’
mark when the rear brake lever is fully pressed, it
indicates the brake lining has reached the service limit.
Replace the brake shoes.
BRAKE SYSTEM
● Check the front brake hose for cracks or damage. If any
leaks are found, replace immediately.
● Check the brake rod for looseness or damage, and
replace it if necessary.
BRAKE LEVER FREE PLAY
● Check the free play after pulling the lever.
FRONT : 10~20mm
REAR : 10~20mm
2-7
INSPECTIONS/ADJUSTMENTS
