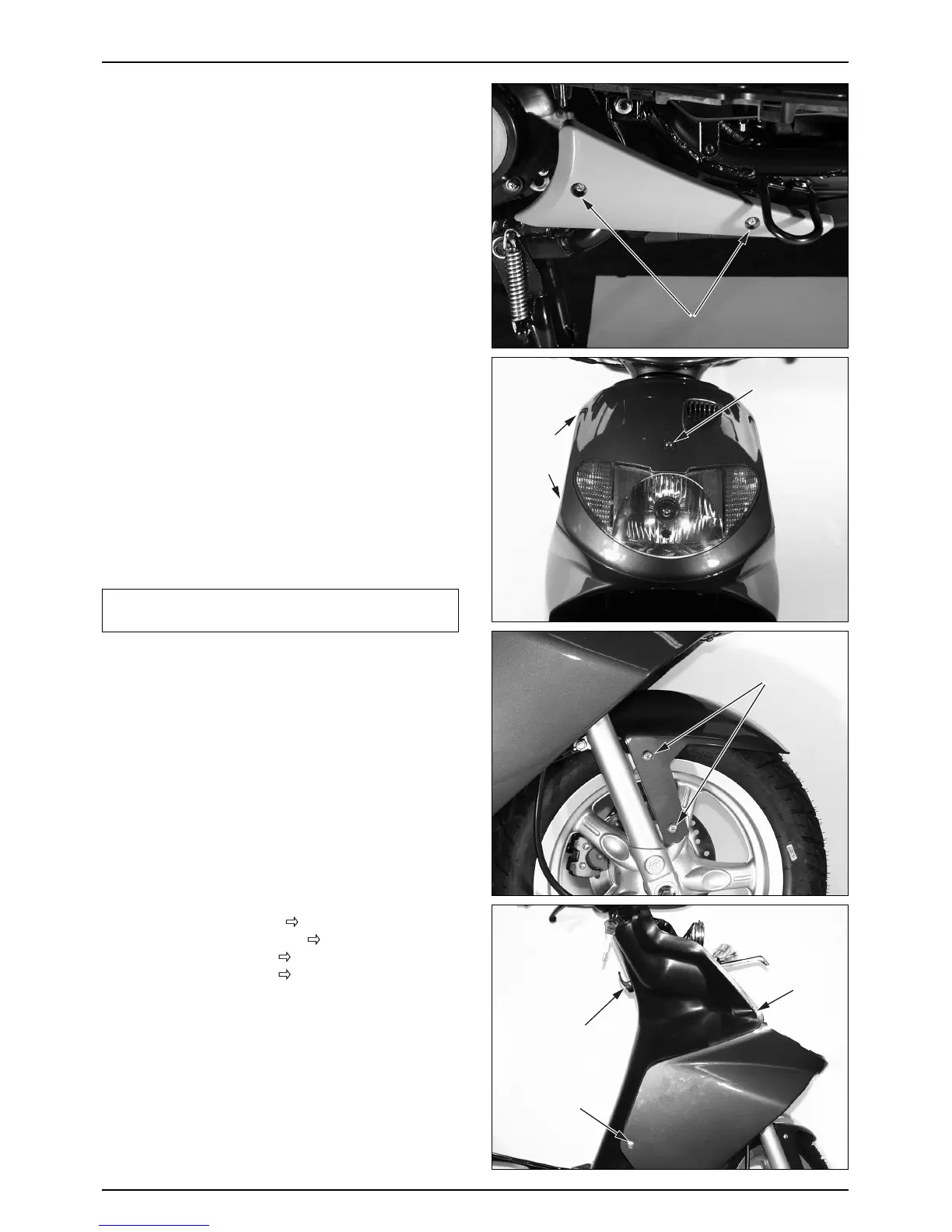

3-5
EXTERNAL PARTS
WASHER SCREW
SETTING
SCREW
SPECIAL BOLT
SPECIAL SCREW
SPECIAL SCREW
SETTING SCREW
TAPPING
SCREW
ENGINE HANGER SIDE COVER
Loosen the 2 washer screw securing the engine hanger
side cover.
Install in the reverse order of removal.
FRONT COVER
Loosen the upper cover set screws (R/L) securing the
inner box.
Loosen the upper cover set screws (R/L) securing the
front under cover.
Loosen the special bolt securing the front of the front
cover.
Draw the upper part of the front cover to remove it.
Disconnect the head light wiring and remove the front
cover.
Install in the reverse order of removal.
NOTE
Check for proper alignment of the connection (hook)
before performing installation.
FRONT FENDER
Loosen the flange bolts (R/L) securing the front fork.
Remove the front fender.
Install in the reverse order of removal.
INNER BOX
Remove the center cover. ( 3-3)
Remove the floor side cover. (
3-4)
Remove the floor panel. (
3-4)
Remove the front cover. (
3-5)
Loosen the tapping screws (R/L) securing the front
under cover.
Loosen the special bolts securing the right and left
sides of the front cover.
Turn the main key cover slightly to release the locking
and remove the cover.
Remove the cover set screw securing the back holder,
take off the joint part of the front under cover and
remove the inner box.
Install in the reverse order of removal.
