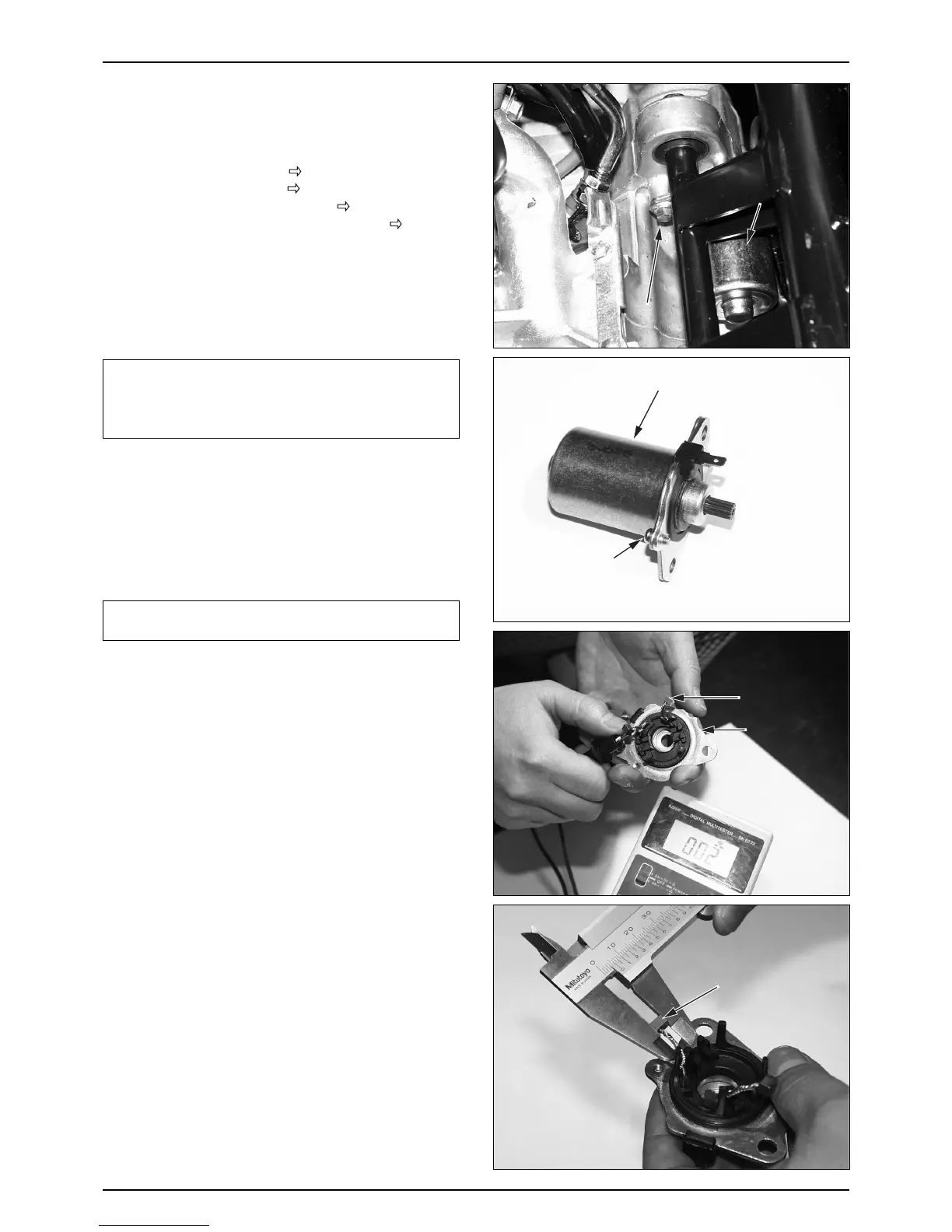

STARTER MOTOR
REMOVAL/INSTALLATION
● Remove the luggage box. ( 3-3 )
● Remove the center cover. (
3-3 )
● Remove the floor side RH. cover. (
3-4 )
● Remove the engine hanger side cover RH. (
3-5 )
● Disconnect the starter wire connector, remove the wire
from the wire fixing clamp.
● Loosen the 2 starter motor fixing bolts.
● Remove the starter motor.
● Install in the reverse order of removal.
NOTE
·Accurately tighten the earth wire.
·Turn off the main switch prior to servicing the starter
motor. If power is connected, the starter motor may
be activated and damaged.
DISASSEMBLY
● Remove the starter motor screws and remove the motor
cover.
NOTE
·Record the order so the parts can be installed
correctly later.
INSPECTION
● Check for continuity of the starter motor case.
-Between cord terminal“⊕” and bracket“⊖”: normal
if no continuity.
-Between cord terminal and brush (black wire) :
normal if there is continuity.
● If abnormal, replace with a new one.
● Measure the brush length. Replace the brush if it is
worn beyond the service limit.
SERVICE LIMIT : 3mm
15-4
STARTING SYSTEM
