DAELIM S-FIVE Service Manual

14-6
IGNITION SYSTEM

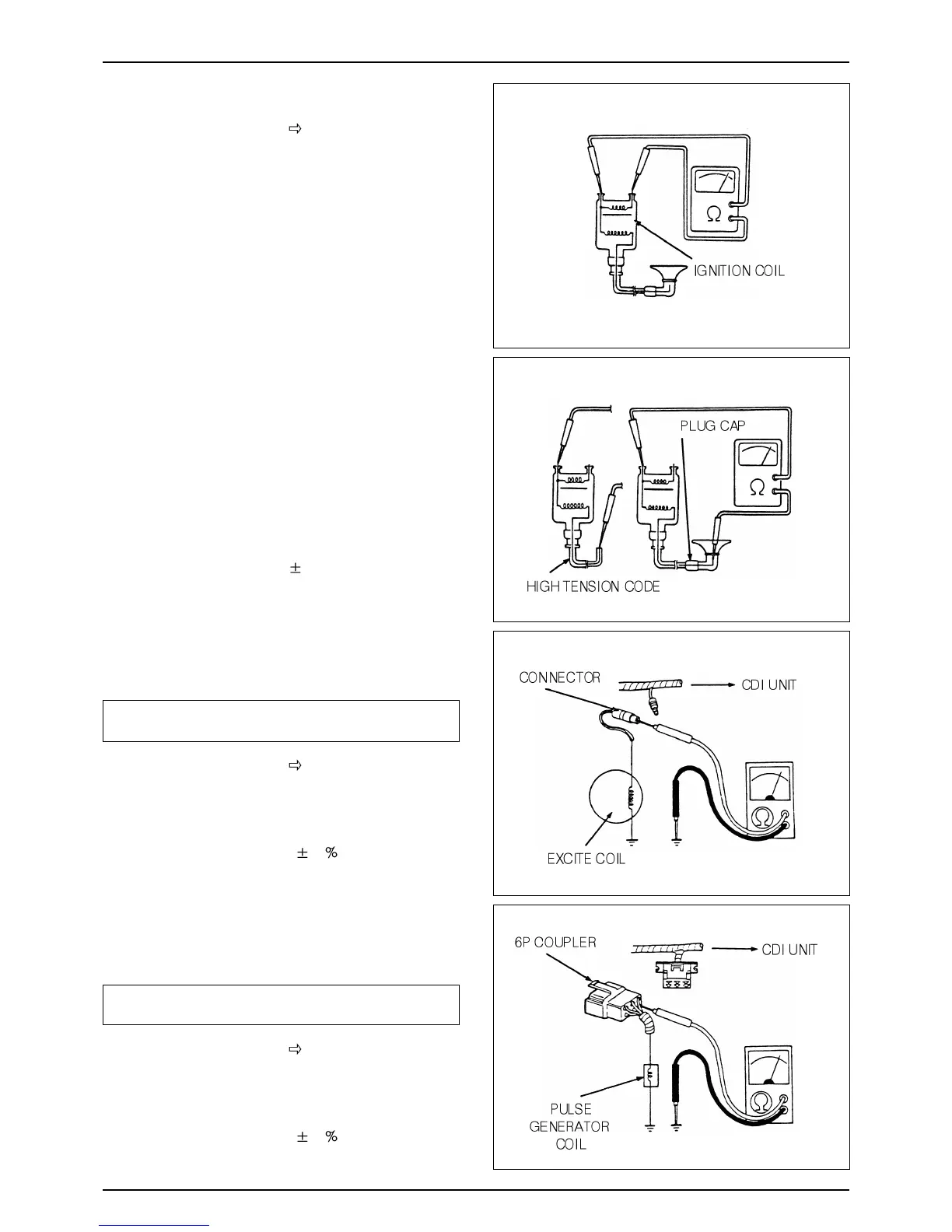

INSPECTION (RESISTANCE MEASUREMENT)
● Remove the luggage box. ( 3-3 )
● Measure primary coil resistance between the green and
black/yellow terminals.
STANDARD VALUE : 0.1~0.5
Ω
(20
℃
)
● Measure the secondary coil resistance between the plug
cap and green wire terminals.
RESISTANCE VALUE
(SPARK PLUG CAP CONNECTION) : 6.5~9.5
㏀㏀
(20
℃
)
● The coil which the resistance value indicate
“∞”(disconnection) remove the plugcap, and measure
the resistance of secondary coil.
● Measure the resistance between the high tension code
and green code terminals.
RESISTANCE VALUE : 2.6 1.25
㏀㏀
(20
℃
).
EXCITE COIL INSPECTION
NOTE
·Assembly the spark plug to the cylinder head, and
inspect in an state having compression pressure.
● Remove the luggage box. (
3-3 )
● Remove the connection of the AC Generator wire
connector (black/red), measure the resistance between
the terminal of AC generator and body earth.
STANDARD VALUE : 500
Ω
20 (20
℃
)
PULSE GENERATOR INSPECTION
NOTE
·The inspection of pulse generator is performed in a
state assembling to the engine.
● Remove the luggage box. (
3-3 )
● Remove the connection of the AC generator 6P
coupler, and measure the resistance between the blue/
yellow of starter and green code.
STANDARD VALUE : 100
Ω
20 (20
℃
)

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
