DAELIM S-FIVE Service Manual

10-20
FRONT WHEEL/FRONT FORK/STEERING
STEERING STEM
REMOVAL
● Front cover ( 3-5 )
● Front fender (
3-5 )
● Front handle cover/rear handle cover (
3-6 )
● Steering handle (
10-3 )
● Front wheel (
10-5 )
● Front brake caliper (
12-7 )
● Front fork (
10-14 )

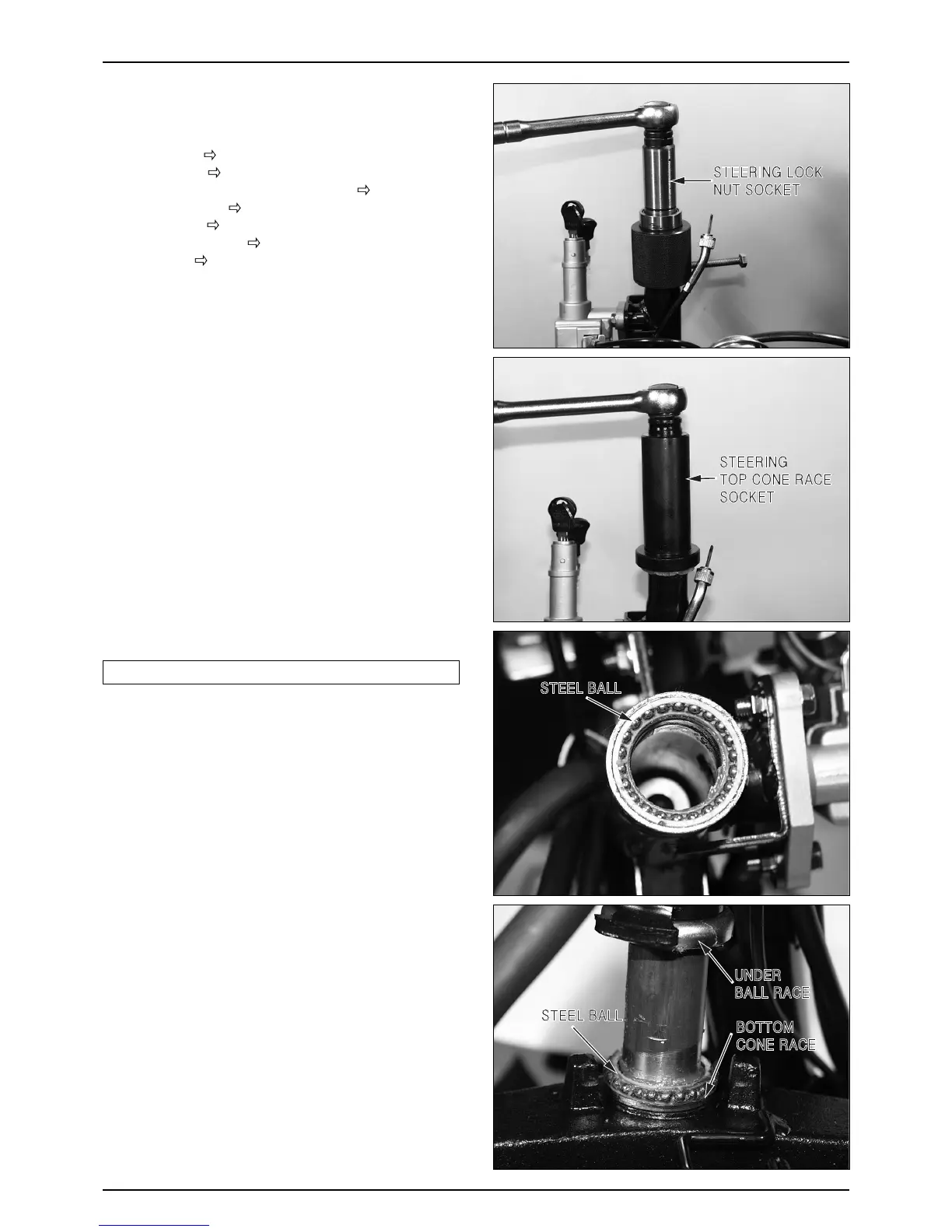

● Loosen the steering stem lock nut.
● Remove the speedometer cable and front brake hose
from the steering stem bracket.
● Loosen the steering top cone race.
● Remove the steering stem.
NOTE
·Place steel ball in a pan to prevent from being lost.
● Check the steel ball, cone race, and ball race for wear
or damage. Replace worn or damaged ones.
● Remove the steering steel ball/ upper steering ball race/
steering bottom cone race.

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
