DAELIM S-FIVE Service Manual

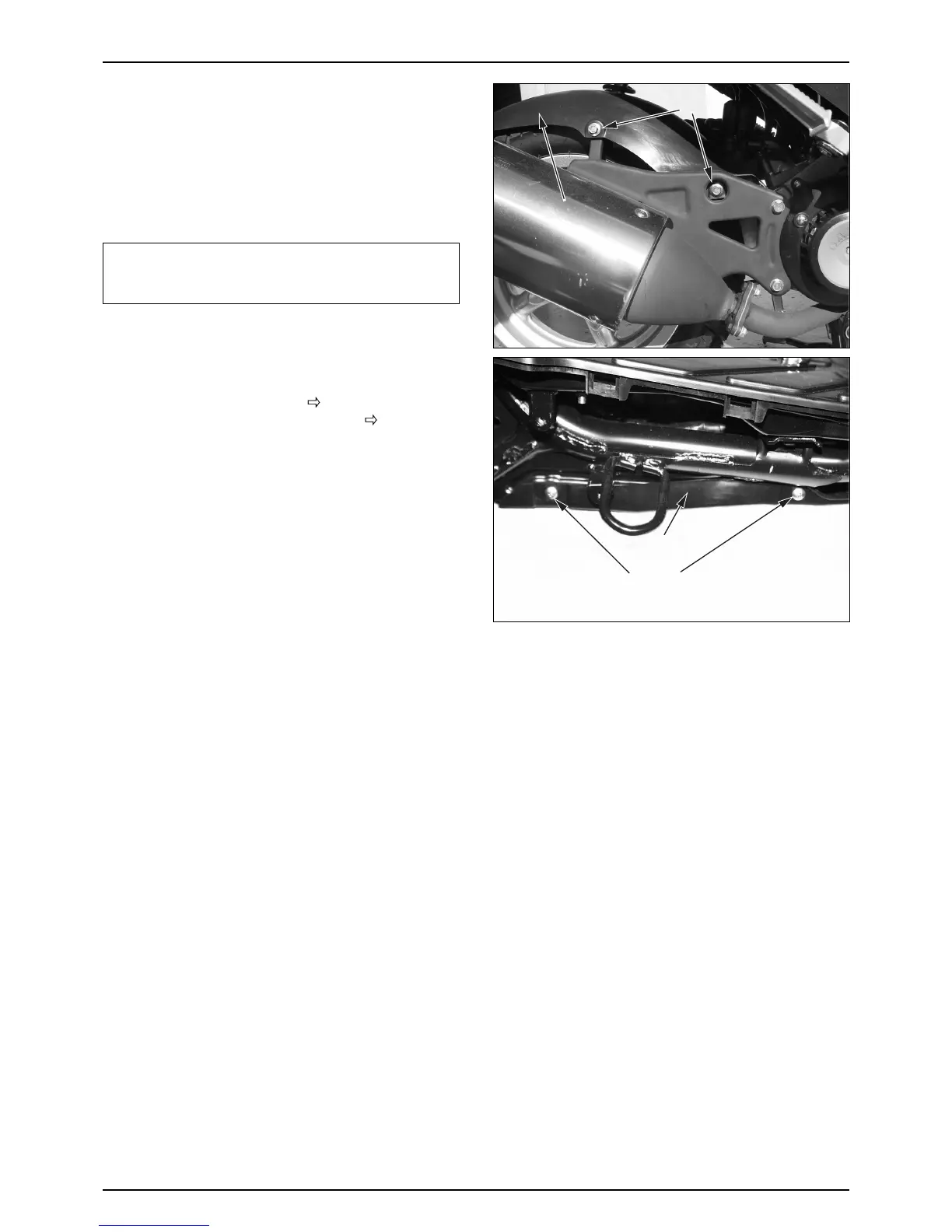

REAR WHEEL MED GUARD
● Loosen the 2 flange bolts securing the EX muffler.
● Loosen the flange bolt securing the air cleaner.
● Loosen the flange bolt securing the inlet pipe.
● Remove the rear wheel mud guard.
● Install in the reverse order of removal.
NOTE
•Never perform the maintenance of the muffler right
after stopping the vehicle because the muffler is
extremely hot.
UNDER COVER
● Remove the floor side cover. ( 3-4)
● Remove the engine hanger side cover. (
3-5)
● Loosen the 2 R/L setting screws securing the frame.
● Remove the under cover.
● Install in the reverse order of removal.
FLANGE BOLT
REAR WHEEL MUD GUARD
UNDER COVER
SETTING SCREW
EXTERNAL PARTS
3-8

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
