DAELIM S-FIVE Service Manual

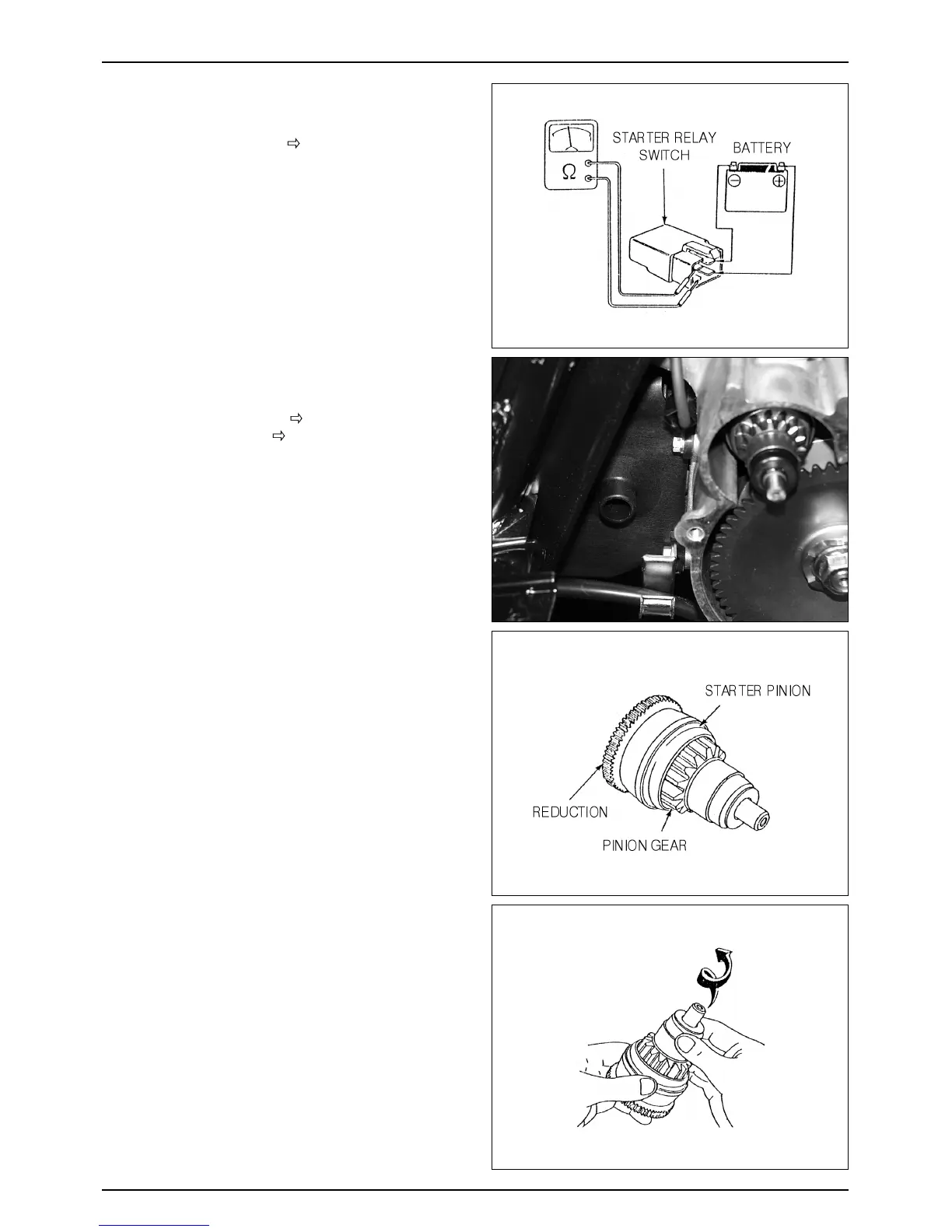

STARTER RELAY INSPECTION
● Remove the luggage box. ( 3-3 )
● When battery voltage is applied between the starter
relay green/yellow wire and yellow/red terminals, there
should be continuity between the red and red/white
terminals. The terminals are distinguished by the
corresponding wire color of the wire harness connector.
STARTER PINION GEAR INSPECTION
● Remove the L. side cover. ( 7-2 )
● Remove the drive face. (
7-6 )
● Remove the starter pinion gear.
● Install in the reverse order of removal.
INSPECTION
● Wear or damage to the pinion, reduction gears.
→ Replace with a new one.
● Worn journals.→ Replace with a new one.
● Check if the pinion gear moves smoothly along the
axis.
● Pinion gear does not move smoothly. → Replace with
a new one.
15-7
STARTING SYSTEM
