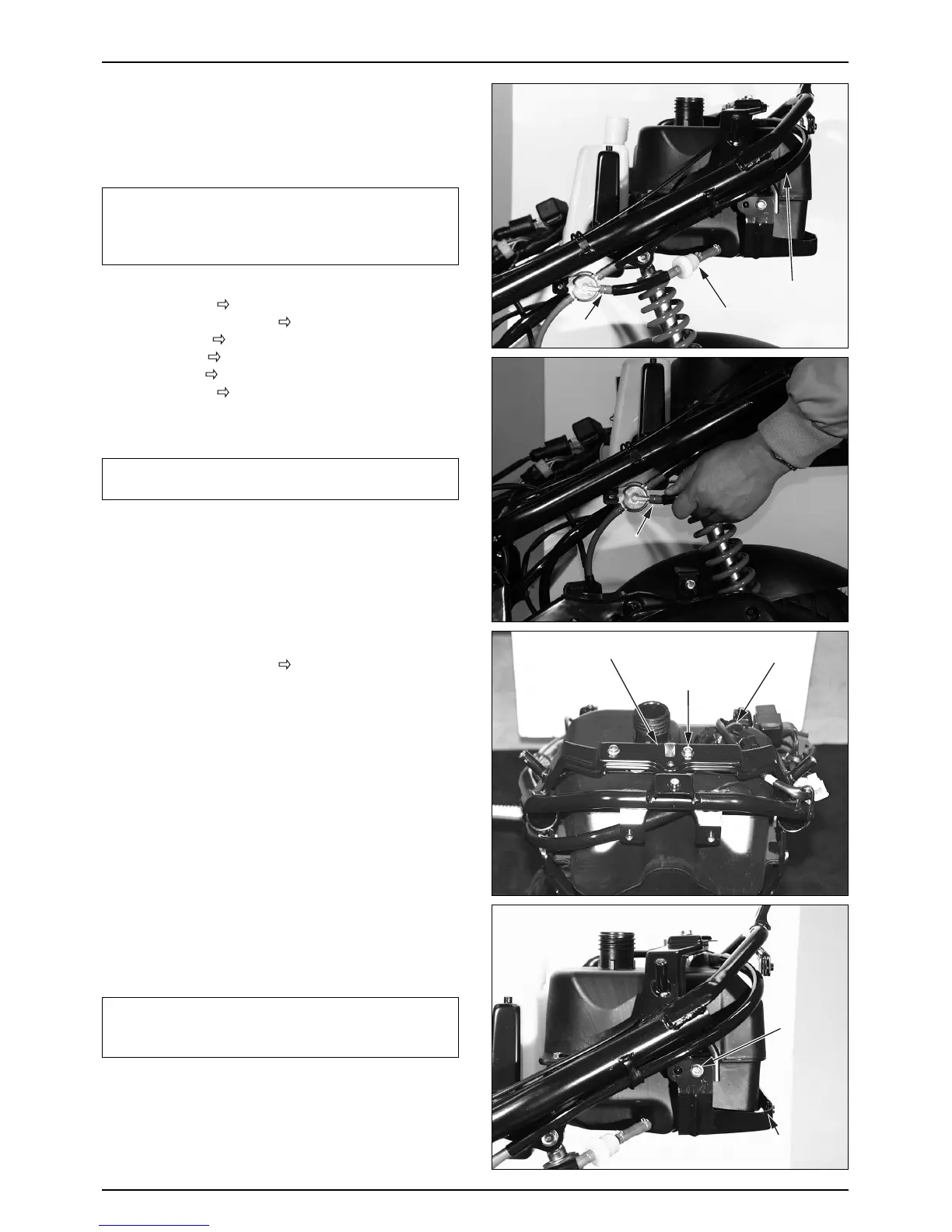

5-3
FUEL SYSTEM
FUEL TUBE B
AUTO COCK
FUEL STRAINER
FUEL TUBE A
FUEL UNIT
SEAT CATCH
FLANGE
BOLT
FLANGE
BOLT
FUEL TANK SUPPORT STAY
FUEL TANK
REMOVAL
WARNING
Gasoline is extremely flammable. Avoid fire during
work, and pay particular attention to electric sparks.
Furthemore, the evaporated (gasified) gasoline is
highly explosive. Work in a well-ventilated areas.
Remove the following parts.
- Luggage box. (
3-3)
- Plug maintenance cover.(
3-3 )
- Center cover. (
3-3)
- Rear carrier. (
3-3)
- Body cover. (
3-3)
- Taillight base. (
3-4)
Remove the fuel tube from the fuel auto cock.
NOTE
Use the tube clip or the cap to prevent the gasoline
from leaking.
Remove the fuel unit wire coupler.
Remove the rear fender. ( 3-7)
Loosen the 2 flange bolts and remove the seat catch.
Loosen the 2 flange bolts and remove the fuel tank
support stay.
Loosen the 2 flange bolts and remove the fuel tank.
INSTALLATION
Install in the reverse order of removal.
NOTE
Check for gasoline leakage.
Gasolinemark is on the fuel tank cap.
Check this mark when filling gasoline.
