DAELIM S-FIVE Service Manual

12-6
BRAKE SYSTEM
HANGER
PIN
BRAKE DISK
DIAL GAUGE

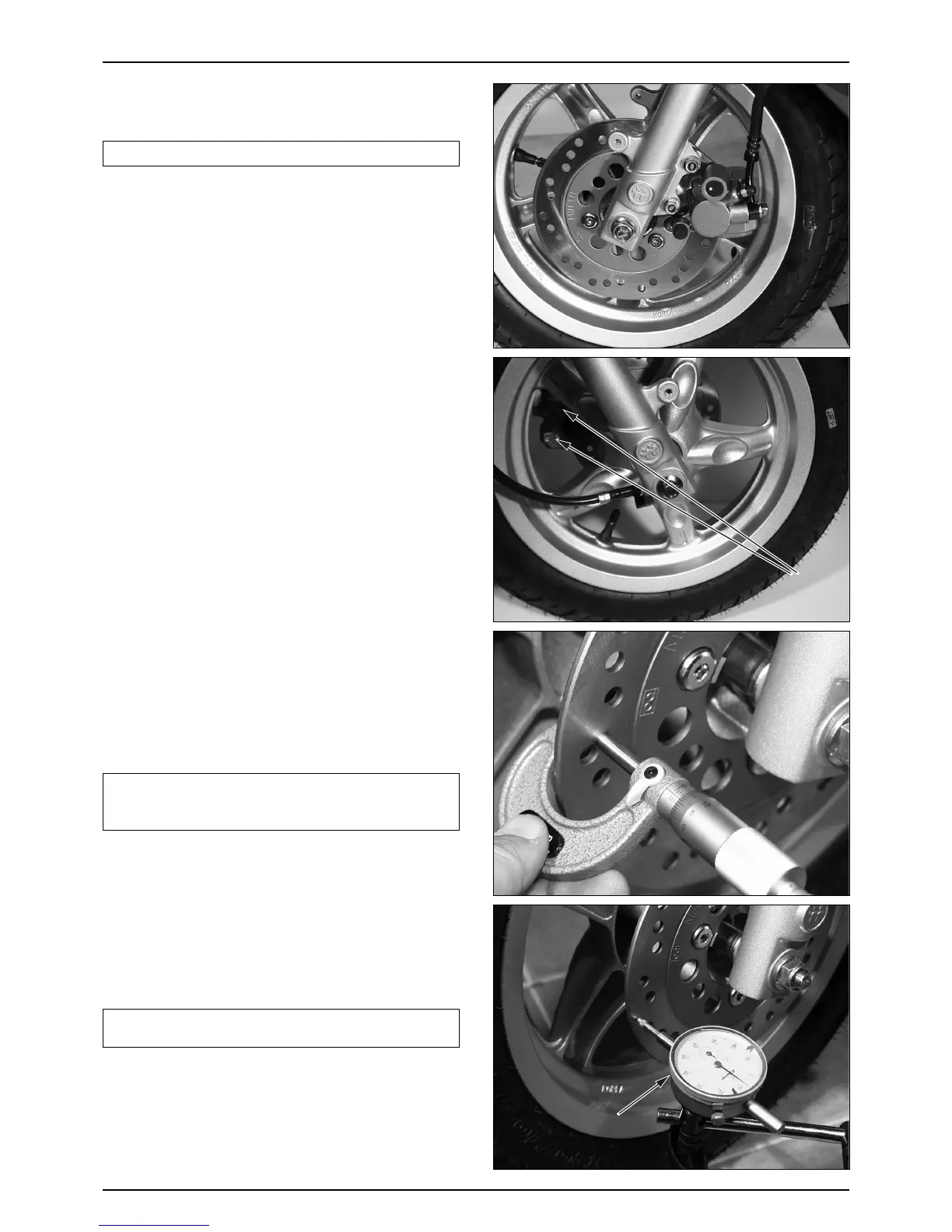

● Install the brake caliper into the left front fork.
NOTE
·Be careful not to damage the brake pad.
● Tighten the caliper braket bolt.
TORQUE : 2.7kgf
·
m
● Tighten the hanger pin.
BRAKE DISK INSPECTION
● Measure the thickness of the disk.
SERVICE LIMIT : 3.0mm
NOTE
·Measure the brake disk thickness at the several
points and replace if the smallest measurement is less
then the specified service limit.
● Check the brake disk for bent and twist.
SERVICE LIMIT : 0.4mm
NOTE
·Replace the brake disk if the disk for damage or
cracks.

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
