10-3
FRONT WHEEL/FRONT FORK/STEERING

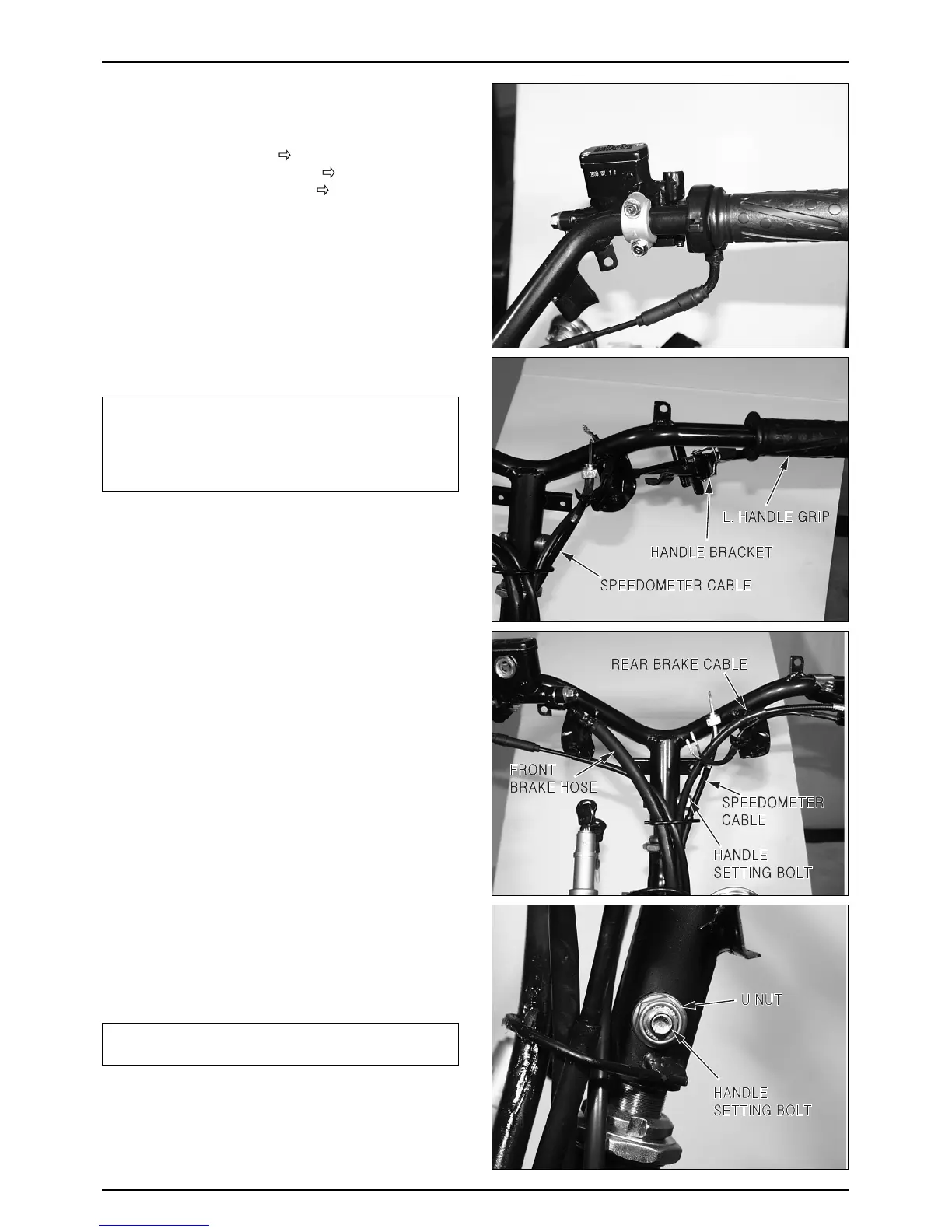

STEERING HANDLE
REMOVAL
● Remove the front cover. ( 3-5 )
● Remove the front handle cover. (
3-6 )
● Remove the rear handle cover. (
3-6 )
● Removal must be performed with the rear handle cover
and the speedometer installed.
● Loosen the throttle housing fixing pin screw.
● Remove the throttle upper housing.
● Remove the throttle under housing.
● Remove the throttle grip.
● Loosen the 2 master cylinder holder bolts, remove the
master cylinder.
CAUTION
·Support master cylinder properly to prevent brake
fluid from leaking.
·If the master cylinder is dropped upside down, air
may enter the hydraulic system. Fix it to the vehicle
while maintaining the correct assembled location.
● Loosen the handle bracket fixing washer bolt.
● Remove the handle bracket bend.
● Remove the handle bracket.
● Remove the L. handle grip.
● Loosen the handle setting U-nut, remove the handle set
collar and flange bolt.
● Remove the rear brake cable, front brake hose,
speedometer cable, handle cable from the guide.
● Remove the steering handle from the steering stem.
INSTALLATION
● Install steering handle to the steering stem.
● Install the handle setting bolt, U-nut, handle set collar.
NOTE
·When installing the handle setting collar, match it
with the groove accurately.
TORQUE VALUE : 5.0kgf
·
m
