10-5
FRONT WHEEL/FRONT FORK/STEERING
FRONT WHEEL
REMOVAL

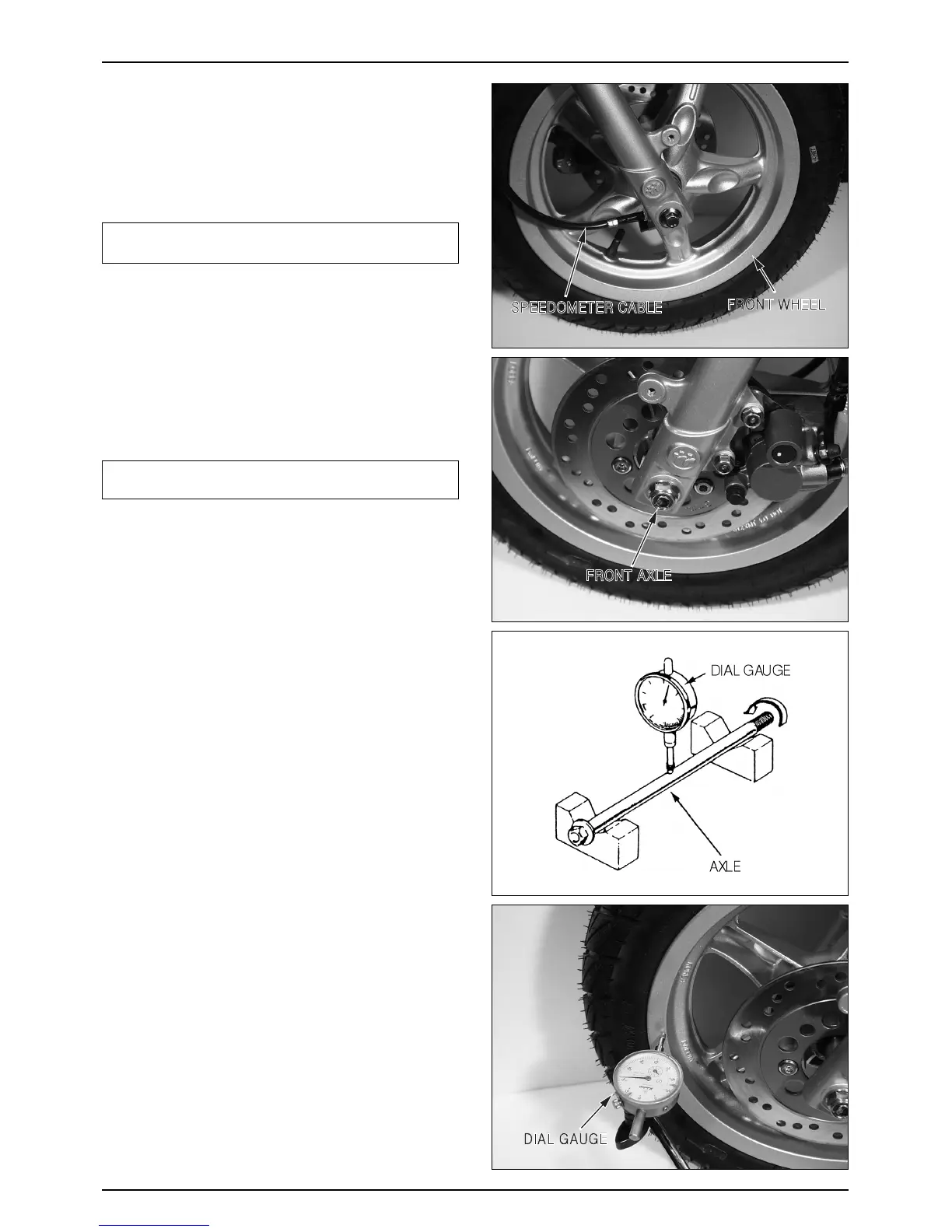

● Remove screws from the speedometer gear box, and
separate the speedometer cable.
NOTE
·Loosen axle nuts. Support bottom of engine with a
jack until the front wheel is lifted.
● Loosen the axle nut.
● Remove the front axle.
● Remove the front wheel.
NOTE
·Do not operate brake lever after the front wheel is
removed.
● Remove the speedometer gear box.
INSPECTION
● Check the front axle for deflection. Place the front axle
on a V-block, and measure deflection with a dial gauge.
SERVICE LIMIT : 0.2mm
● Place the front wheel on an inspection stand. Slowly
turn the wheel, and check the rim runout with a dial
gauge.
SERVICE LIMIT : Radial 2.0mm
Axial 2.0mm
