10-7
FRONT WHEEL/FRONT FORK/STEERING

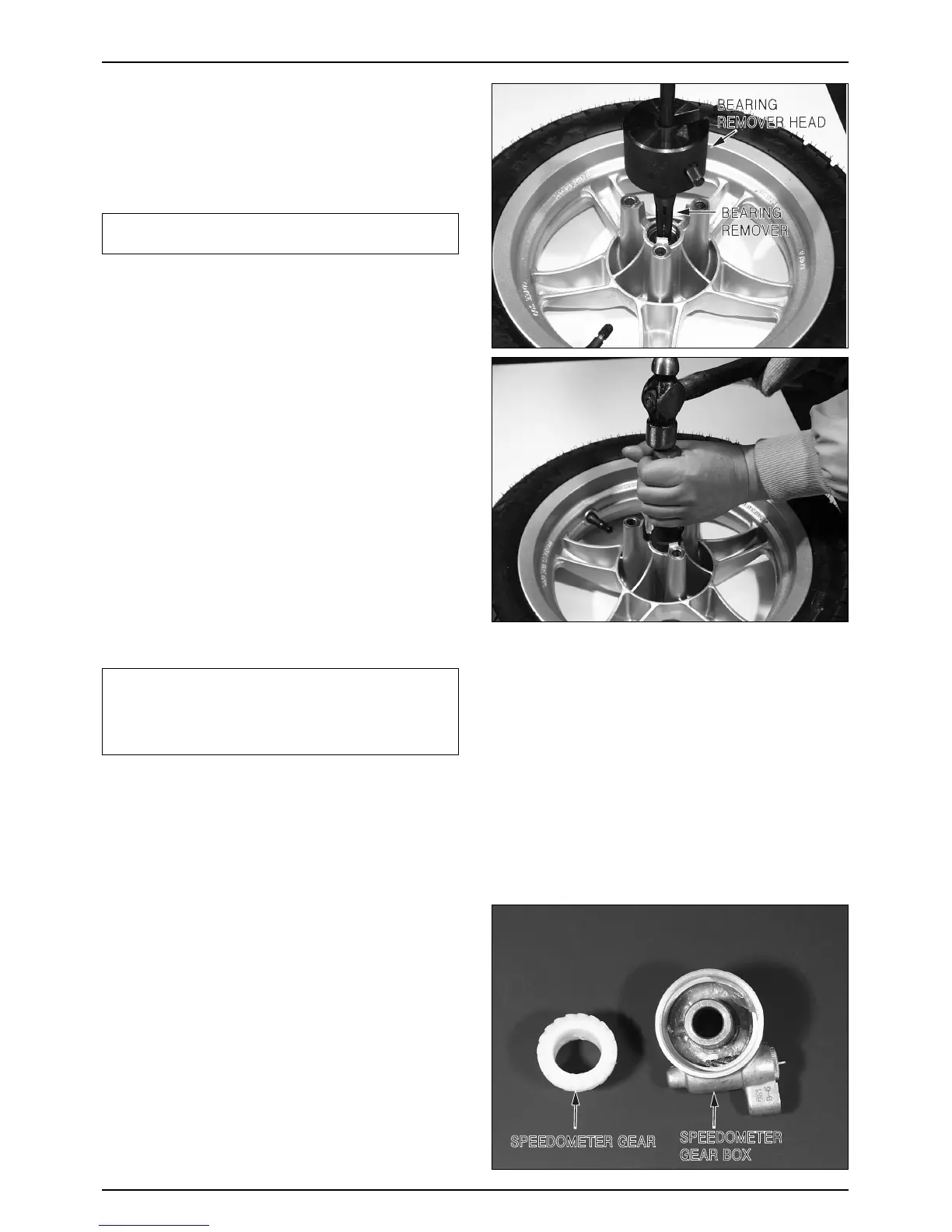

WHEEL BEARING REPLACEMENT
● Install the bearing remover head and the remover shaft
on the wheel, and remove the bearing and distance
collar.
NOTE
·Always replace bearings in pairs, and never use old
bearings.
TOOLS : BEARING REMOVER HEAD
BEARING REMOVER
● Apply sufficient amount of grease to the bearing.
● Insert the right bearing with its seal surface facing
outside.
● Do not tilt the bearing. Insert accurately.
● Upon assembling the distance collar, insert the left
bearing with its seal surface facing outside.
TOOLS : DRIVER
ATTACHMENT, 32x35mm
PILOT, 15mm
CAUTION
·The bearing inserted in the last must be inserted until
it contacts with the distance collar.
·Excessively inserted bearing can cause damage the
opposite side bearing.
SPEEDOMETER GEAR REPLACEMENT
● Remove the speedometer gear and washer from the
speedometer gear box.
● Check the gear for wear or damage.
● Install the washer.
● Apply grease to the speedometer gear prior to
assembling.
