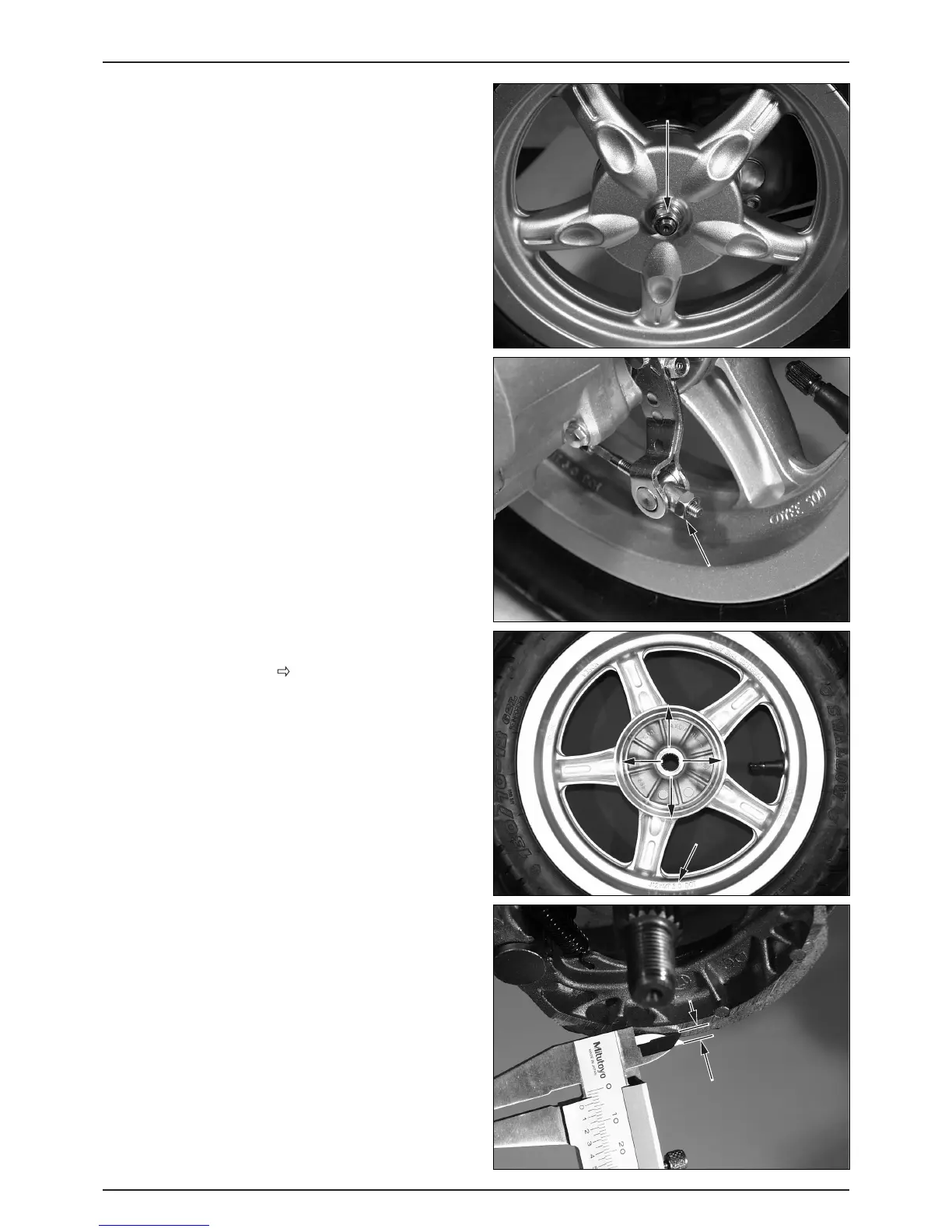

● Insert the washer, and tighten with the U nut.
TORQUE VALUE : 6.0~8.0kgf
·
m
● Install the brake arm joint B.
● Install the rear brake cable.
● Install the rear brake rod adjusting nut.
● Install the rear wheel mud guard.
● Install the muffler.
REAR BRAKE
● Remove the rear wheel. ( 11-3 )
INSPECTION
● Measure the brake drum of inner diameter
SERVICE LIMIT : 111mm
● Measure the thickness of the brake lining.
SERVICE LIMIT : 2.0mm
11-4
REAR WHEEL/BRAKE/SUSPENSION
U NUT
ADJUST NUT
REAR WHEEL
X
Y
BRAKE LINING
THICKNESS
