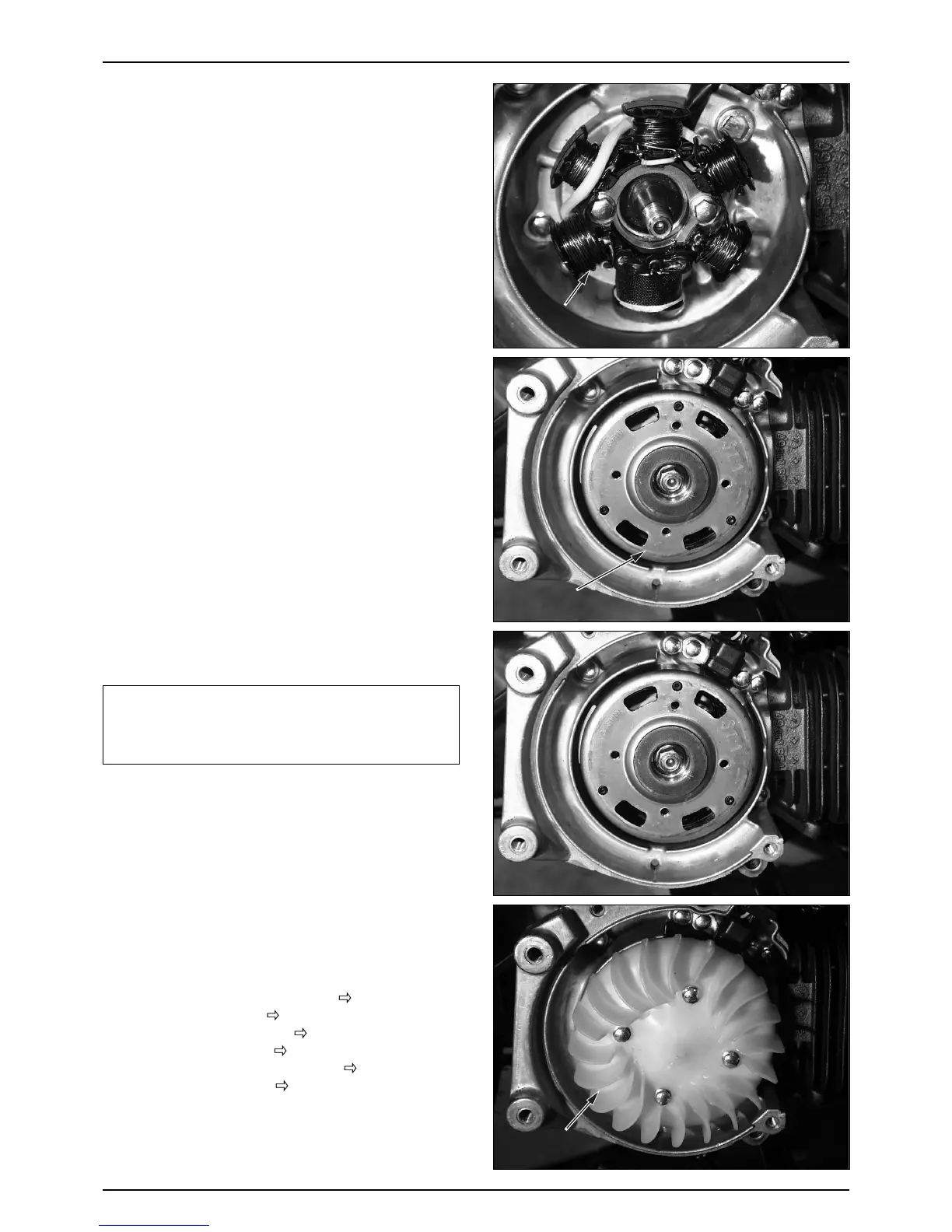

STATOR INSTALLATION
● Note the direction of stator, and install the stator on the
crankcase.
● Install the grommet to R. crankcase cover.
● Install AC generator wire coupler to wire harness.
● Install the connector to starter motor, then install the
ground wire.
FLYWHEEL INSTALLATION
● Clean the tapered portion of the crankshaft.
● If the flywheel is installed with dust or dirt on the taper,
the taper will not make secure contact with the
flywheel and there will be excessive force on the
woodruff key.
● Insert the woodruff key into the key groove in the
crankshaft.
● Set the flywheel groove to the woodruff key and install
the flywheel on the crankshaft.
● Tighten the flywheel bolt (or nut) with your fingers.
CAUTION
·Before installing the flywheel, check that no nuts or
bolts are magnetically attached to the flywheel.
Installing the flywheel with anything attached to it
could damage the stator coil.
● Hold the flywheel rotor with a holder and tighten the
bolt (nut) to the specified torque.
● Install the cooling fan.
● Install the fan cover.
● Install the fan cover rubber.
● Install the fan cover and the fan cover element A,B.
● Install the engine hanger side RH. (
3-5 )
● Install the floor panel. (
3-4 )
● Install the floor side cover. (
3-4 )
● Install the center cover. (
3-3 )
● Install the plug maintenance cover. (
3-3 )
● Install the luggage box. (
3-3 )
13-8
BATTERY/CHARGING SYSTEM
