DAELIM S-FIVE Service Manual

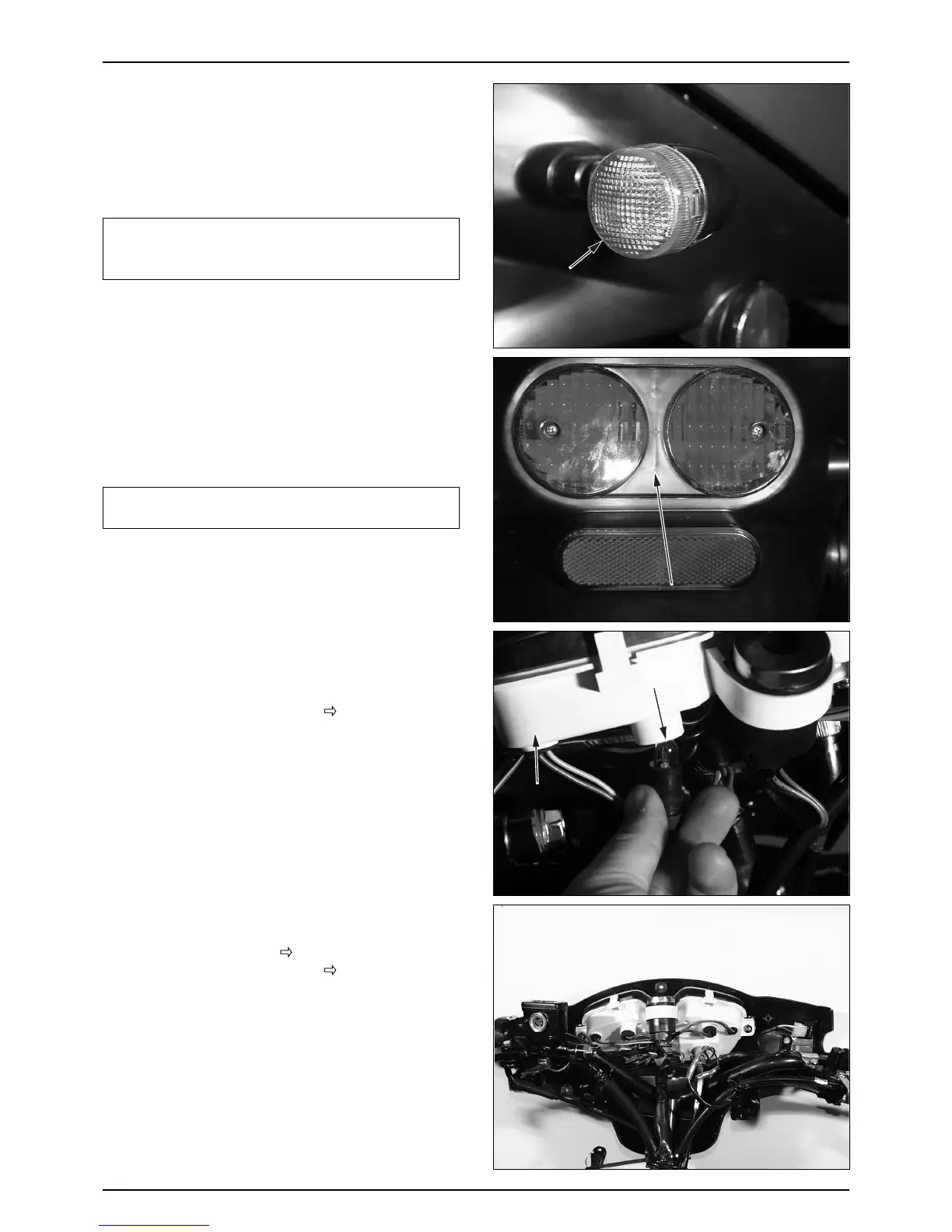

REAR WINKER BULB REPLACEMENT
● Press the winker lens groove and open the winker lens
using plain screwdriver.
● Remove the bulb from the socket, replace with new bulb.
● Install in the reverse order of removal.
NOTE
·Pay attention not to damage the lens.
·Do not apply excessive force when removing the
lens.
TAILLIGHT BULB REPLACEMENT
● Loosen the 2 pan screws, remove the tail light lens.
● Replace the tail stop light bulb with the new one.
NOTE
·Pay attention not to damage the tail light lens when
removing it.
METER BULB REPLACEMENT
● Remove the front handle cover. ( 3-6 )
● Remove the bulb socket, replace with new bulb.
METERS REPLACEMENT
● Remove the front cover. ( 3-5 )
● Remove the front handle cover. (
3-6 )
● Remove the front/rear stop swtich wire.
● Remove the speedometer cable from the meter.
● Loosen the 4 steering handle tapping screws.
● Remove the speedometer coupler connected to the wire
harness
● Remove the speedometer wiring from the steering
handle cable guide.
● Remove the speedometer and the gear handle cover
assemblied from the steering handle.
16-6
LIGHTS/METER/SWITCHES
REAR WINKER
TAIL LIGHT LENS
BULB
SPEEDOMETER

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
