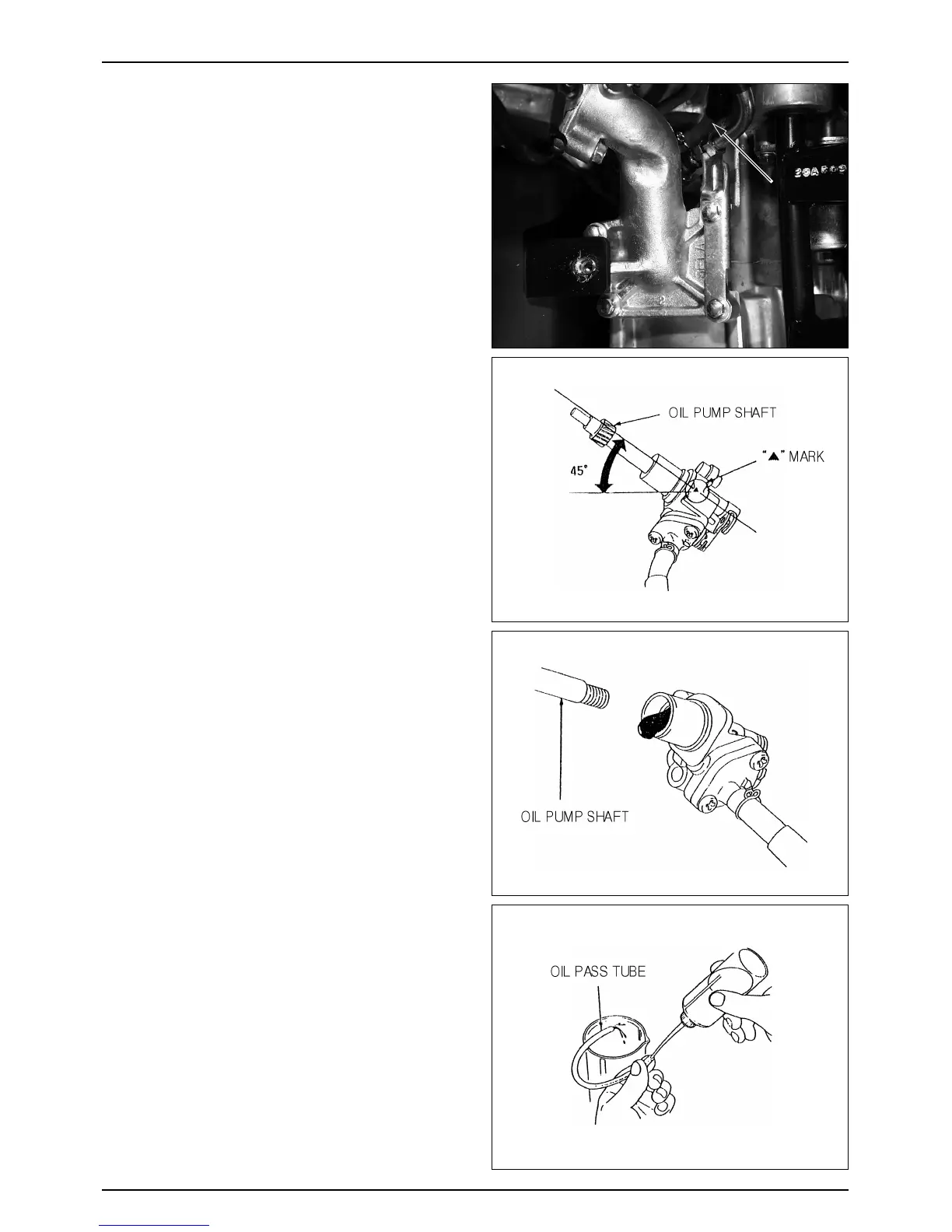

OIL PUMP/OIL TUBE
● Fill the oil tank with engine oil.
● Cap around the oil pump and the carburetor with dry
cloth.
● Locate the end of the oil tube in the level lower than the
oil tank and drain the oil to bleed the air.
● Install the oil tube in the oil pump.
●Incline the oil pump to locate the oil pump shaft at the
angle of 45。from the “▲”mark with oil tube
connected.
●In this state, locate the oil pump in the level lower
than the oil tank and drain the oil to bleed the air.
●Install the oil pump shaft in the oil pump after
completing the bleeding.
●Install the oil pump in the crankcase.
OIL PASS TUBE
● Bend the oil pass tube in the “U” shape, keep the two
ends parallel with each other and fill the oil pass tube
with the oil.
4-5
LUBRICATION SYSTEM
