● Apply a liquid gasket to the L. crankcase joining face,
install the dowel pins.
● Install the R. crankcase.
● Install the 6 flange bolts.
NOTE
·Make sure that there is no adhesion of gasoline to the
R., L. crankcase liquid gasket face.
·Do not apply excessive liquid gasket fluid
excessively.

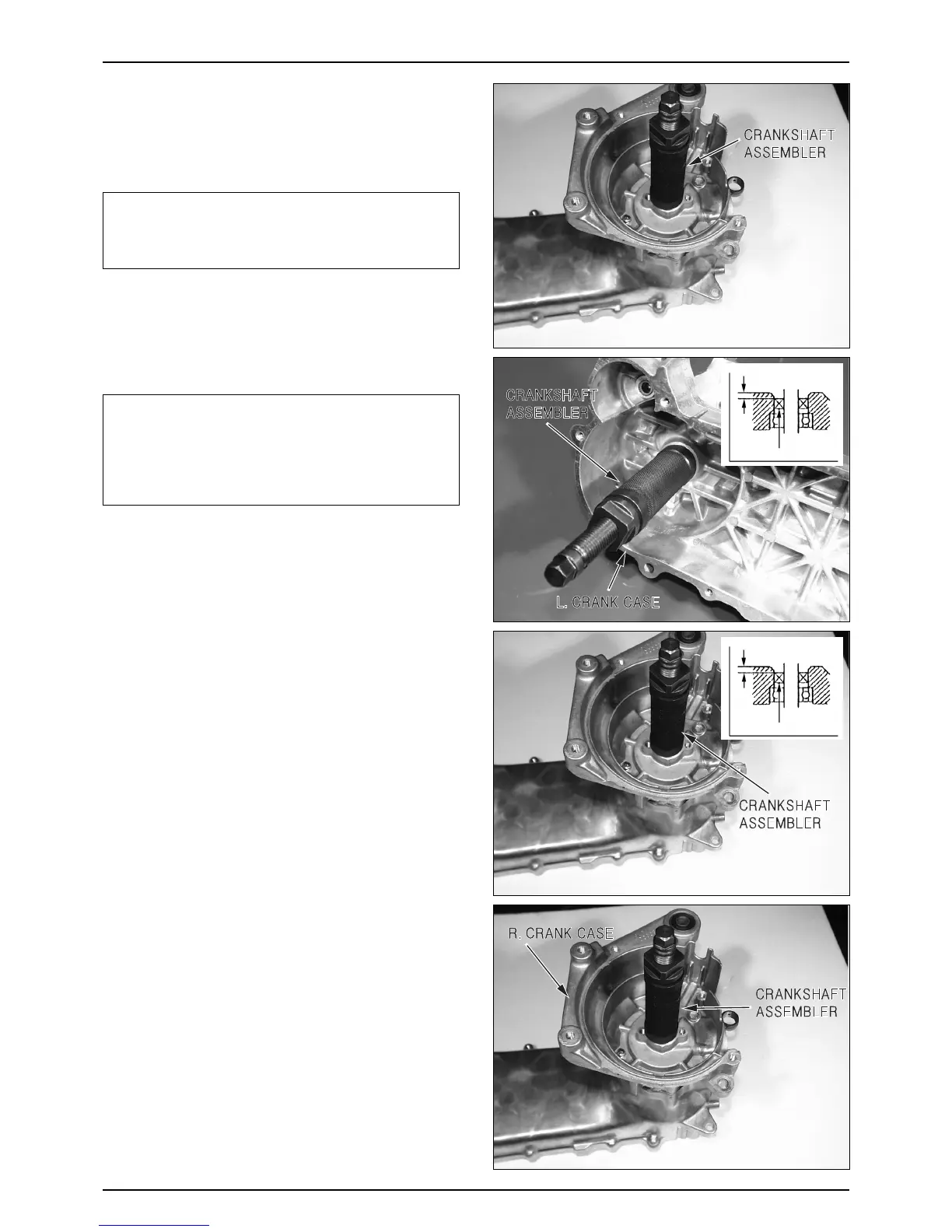

TOOL : CRANKSHAFT ASSEMBLER
CAUTION
·Make sure that the crankshaft is rotated smoothly
after installation (prior to oil seal installation).
·If the smooth rotation is not acquired, tap the
crankshaft bearing part of crankcase with plastic
hammer to ensure proper installation without
mismatch.
● Install a new L. oil seal in the crankcase end portion at
1.0mm depth.
● Install a new R. oil seal in the crankcase end portion at
5.0mm depth.
9-8
TRANSMISSION/CRANKSHAFT/CRANKCASE
OIL SEAL
OIL SEAL
1.0mm
5.0mm
To Next Page
