CYLINDER HEAD / VALVE
CAMSHAFT
REMOVAL

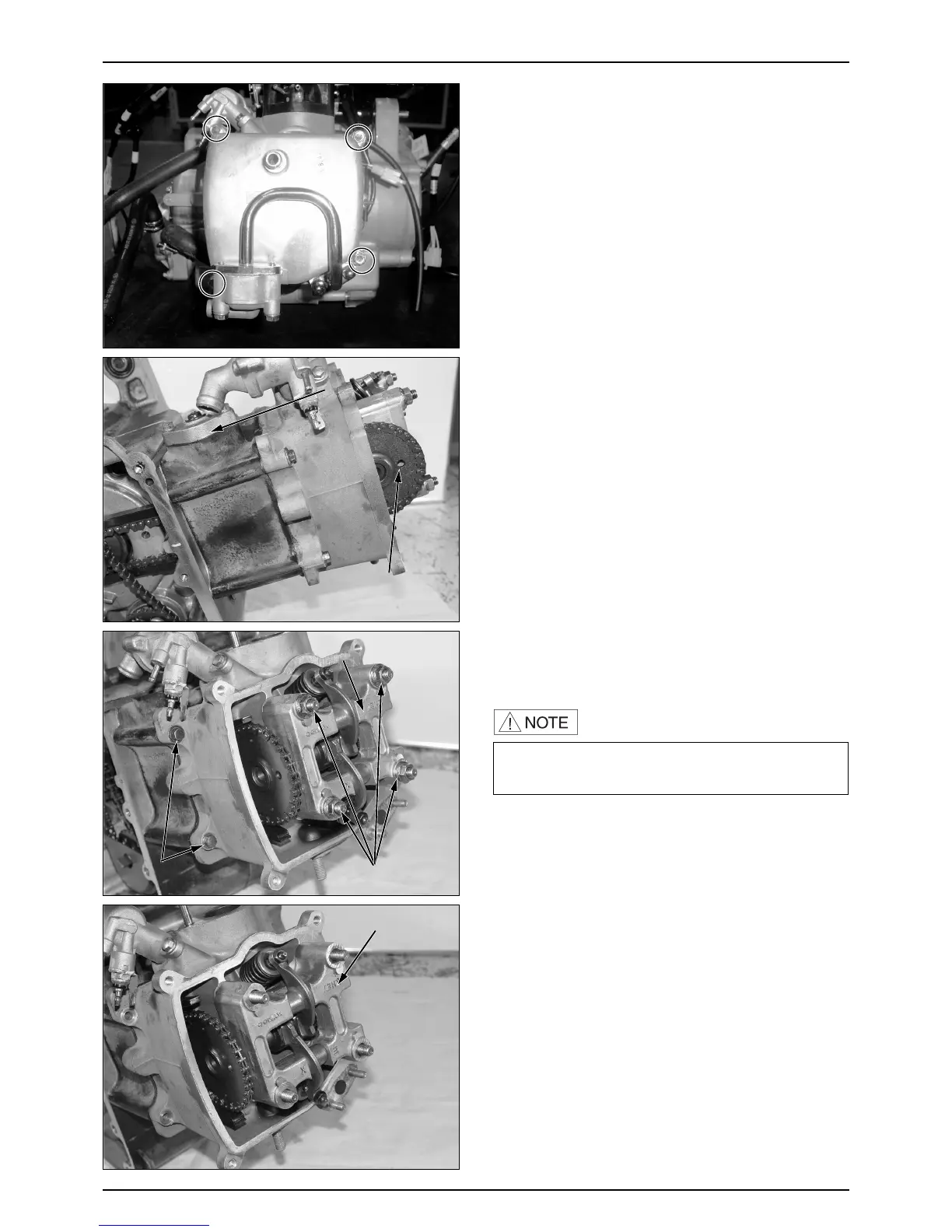

● Turn the A.C. generator flywheel so that the “T” mark
on the flywheel aligns with the index mark on the
crankcase.
● Hold the round hole on the camshaft gear facing up
and the location is the top dead center on the
compression stroke.
● Remove the 2 bolts attaching cam chain tensioner and
the tensioner.
CYLINDER HEAD COVER
REMOVAL
● Remove the center cover.
● Remove the luggage box.
● Remove the cylinder head cover 4 bolts and then
remove the cylinder head cover.
● First remove the 2 bolts between the cylinder head and
cylinder.
● Remove the 4 cap nuts securing cylinder head.
● Remove the camshaft holder and dowel pins.
·Diagonally loosen the cylinder head cap nuts in 2 or
3 times.
