DAELIM S2 250

10-3
CYLINDER HEAD / VALVE

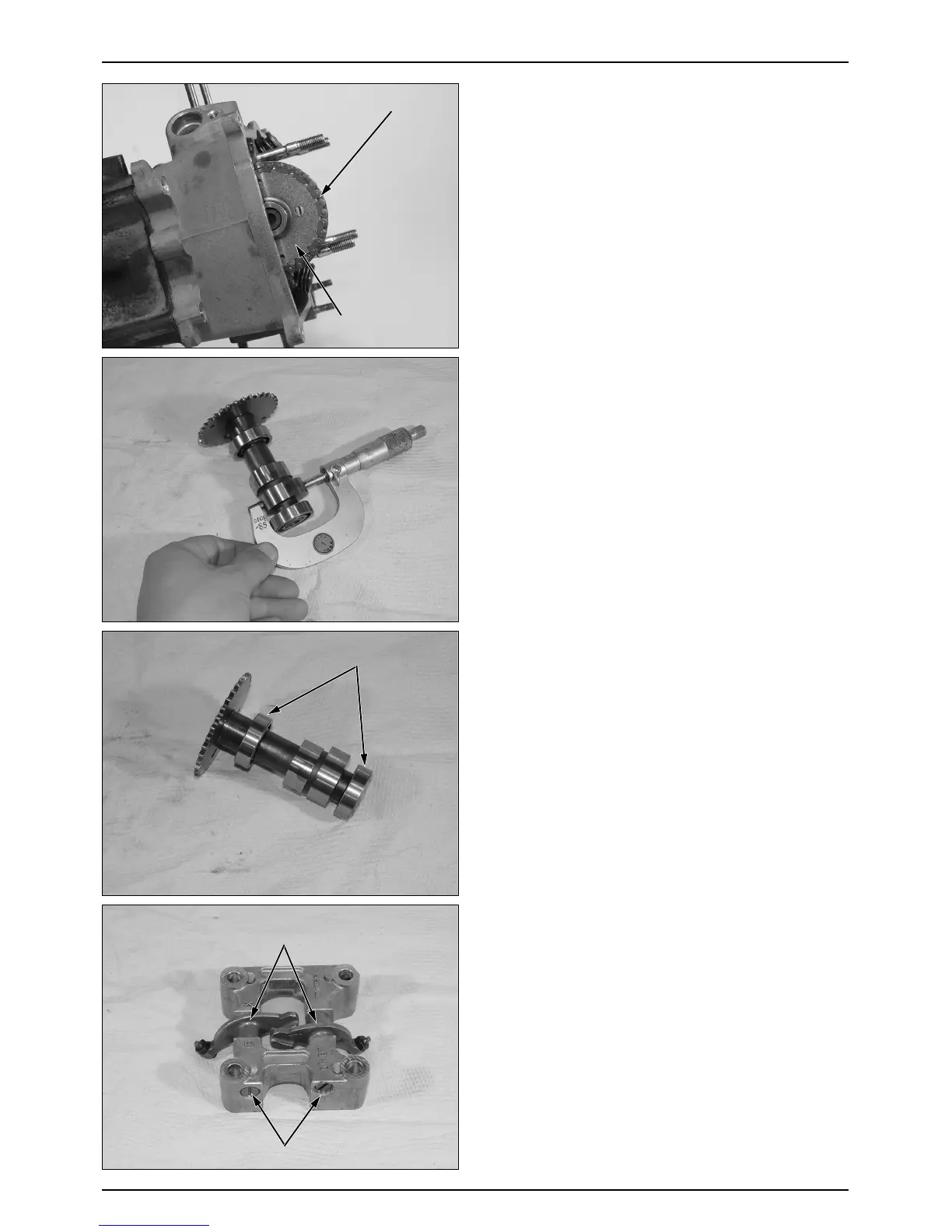

● Remove the camshaft gear from the cam chain to
remove the camshaft.
INSPECTION
● Check each cam lobe for wear or damage.
● Measure the cam lobe height.
SERVICE LIMITS:
IN : 34.14mm replace if below
EX: 34.02mm replace if below
● Check each camshaft bearing for play or damage.
Replace the camshaft assembly with a new one if the
bearings are noisy or have excessive play.
CAMSHAFT HOLDER DISASSEMBLY
● Remove the valve rocker arms.
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
CAM CHAIN
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
ROCKER ARM SHAFT
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
CAMSHAFT GEAR
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
VALVE ROCKER ARMS
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
CAMSHAFT BEARING
