11-6

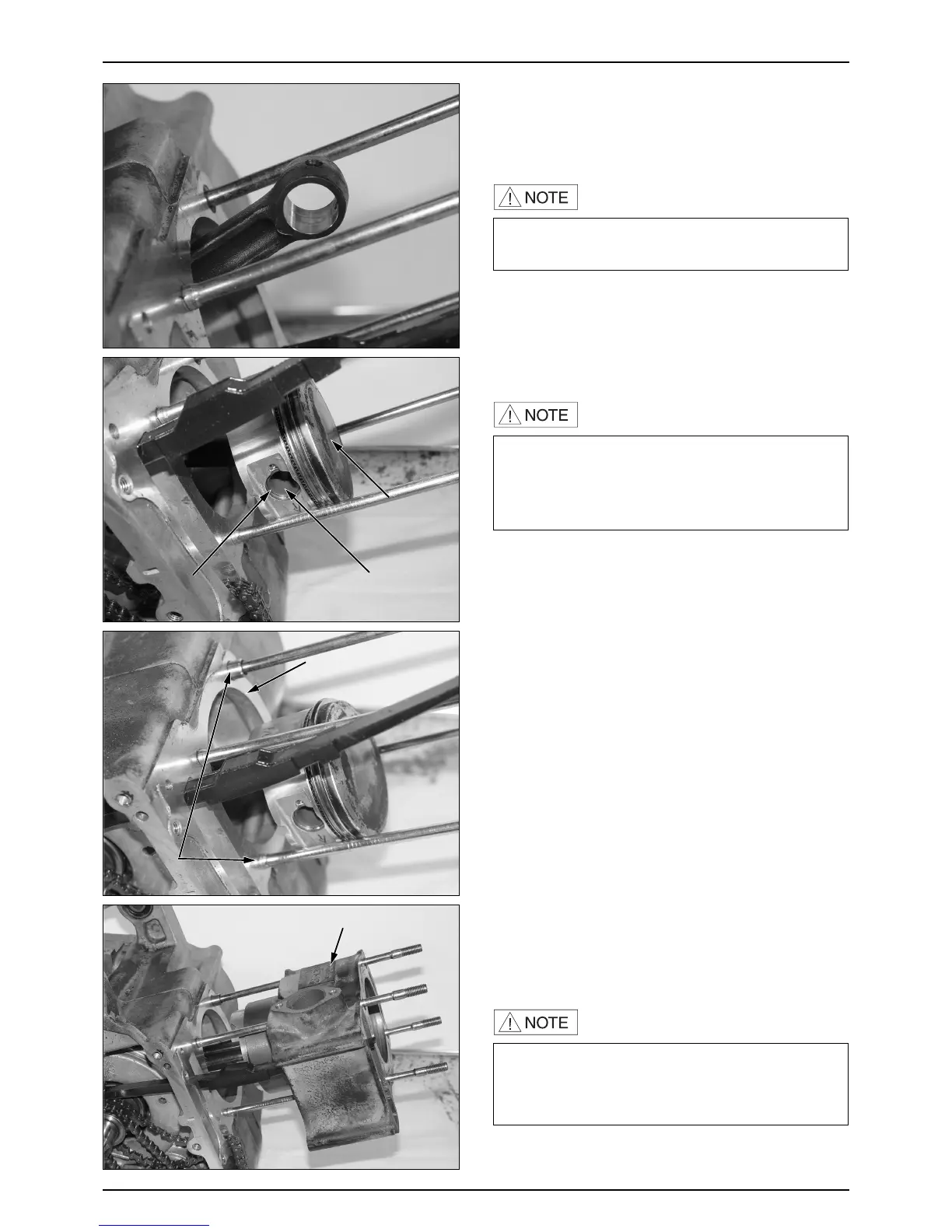

CYLINDER/PISTON

·Be careful not to drop foreign matters into the

crankcase.

PISTION INSTALLATION

● Remove any gasket material from the crankcase

surface.

CYLINDER INSTALLATION

● Install the dowel pins and a new cylinder gasket on the

crankcase.

·Position the piston “IN” mark on the intake valve

side.

·Place a clean shop towel in the crankcase to keep the

piston pin clip from falling into the crankscase.

● Install the piston, piston pin and a new piston pin clip.

·Be careful not to damage or break the piston rings.

·The piston ring end gaps should not be parallel with

or at 90°to the piston pin.

● Coat the cylinder bore, piston and piston rings with

clean engine oil.

● Carefully lower the cylinder over the piston by

compressing the piston rings.

PISTON PIN CLIP

PISTON

PISTON PIN

DOWEL PINS

GASKET

CYLINDER
