DAELIM S2 250 Service Manual

11-7
CYLINDER/PISTON

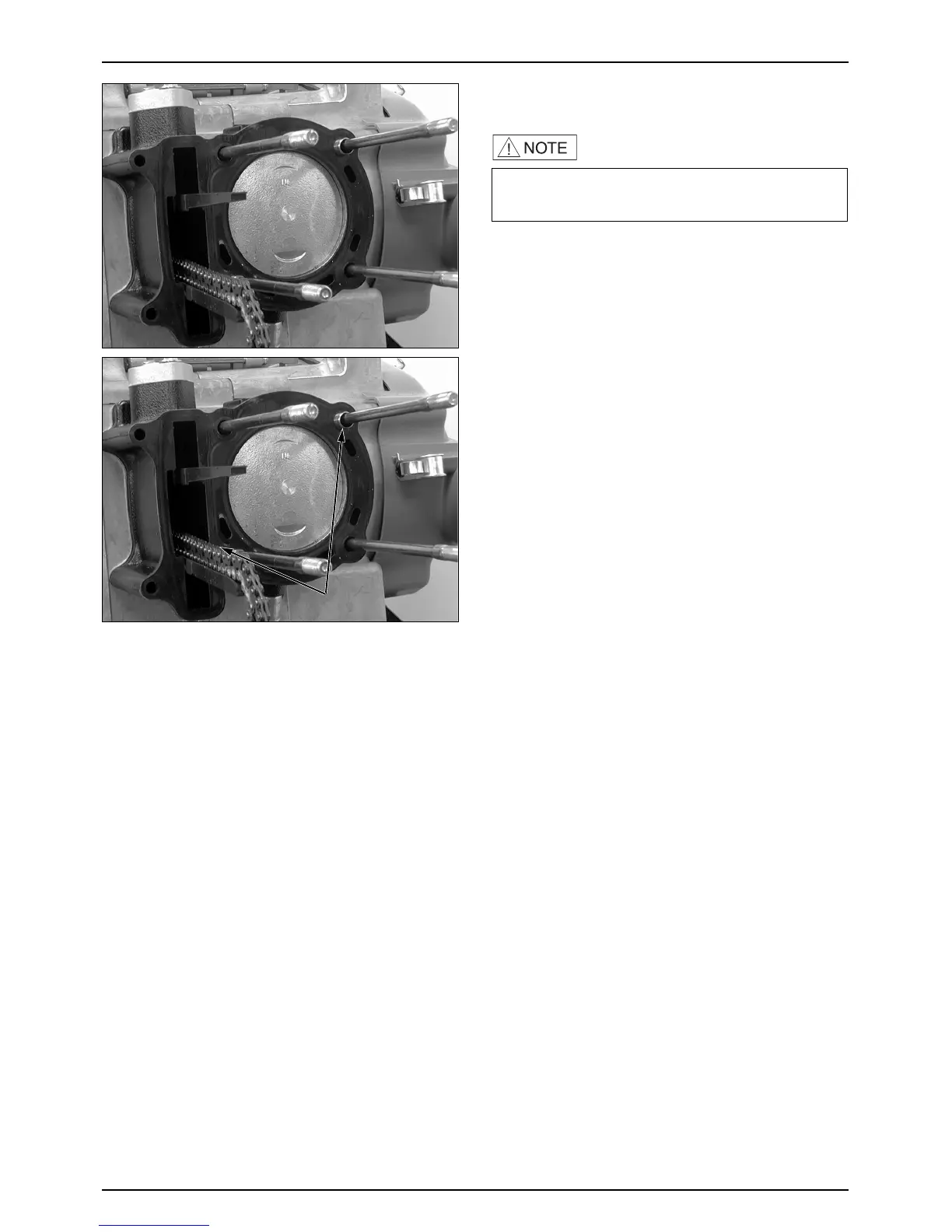

● Install the cam chain guide.
● Install the cylinder gasket and dowel pins.
● Connect the water hohse to the cylinder.
● Install the cylinder head.
● Tighten the cylinder base bolt.
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
DOWEL PIN
·Insert the tab on the cam chain guide into the
cylinder groove.
