DAELIM S2 250 Service Manual

12-4
CRANKSHAFT/CRANKCASE

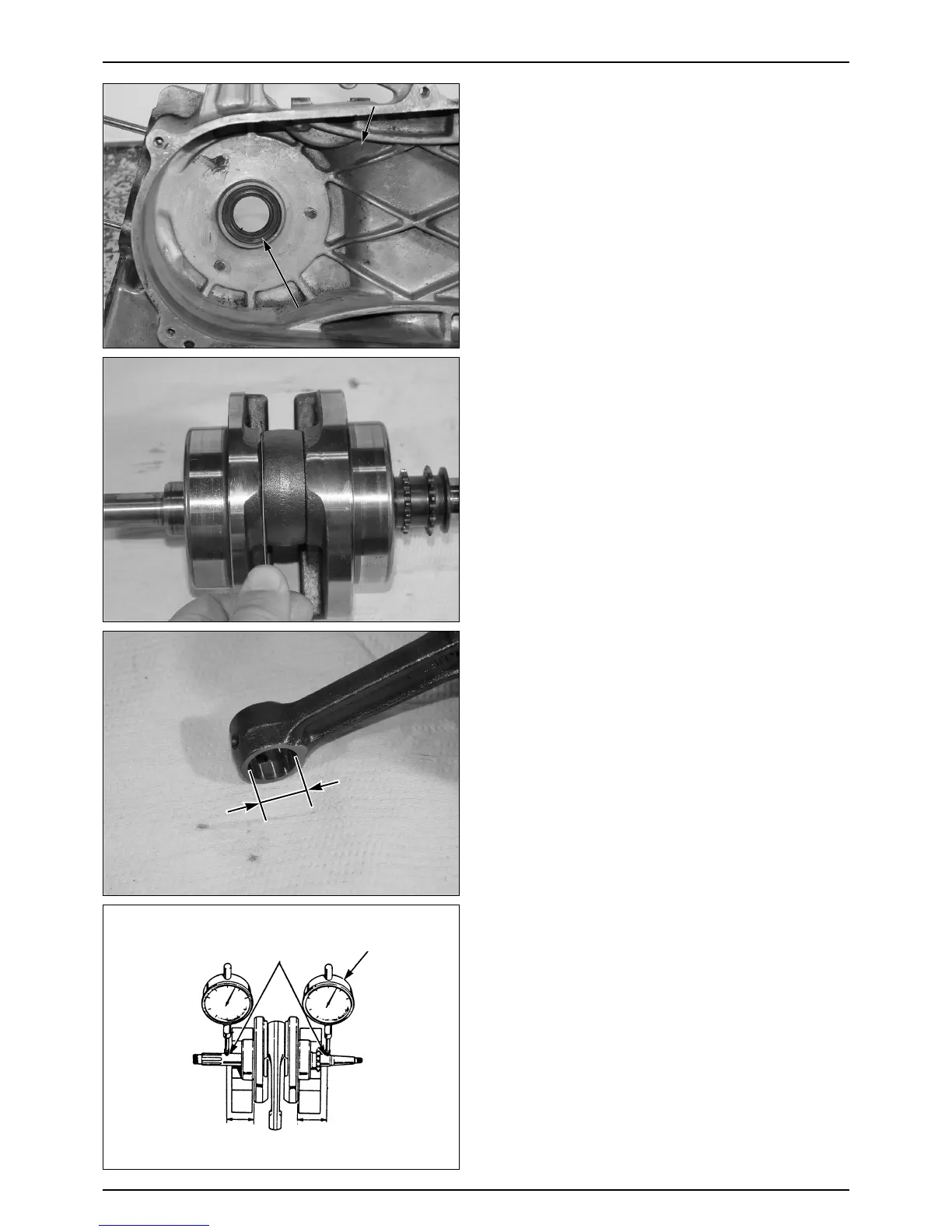

● Remove the oil seal from the LH. crankcase.
● Install a new drive shaft oil seal.
CRANKCASE INSPECTION
● Measure the connecting rod big end sied clearance.
SERVICE LIMITS : 0.6mm replace if over
● Measure the connecting rod small end I.D.
SERVICE LIMITS : 17.06mm replace if over
● Measure the crankshaft runout.
SERVICE LIMITS : 0.10mm replace if over
