DAELIM S2 250

12-5
CRANKSHAFT/CRANKCASE

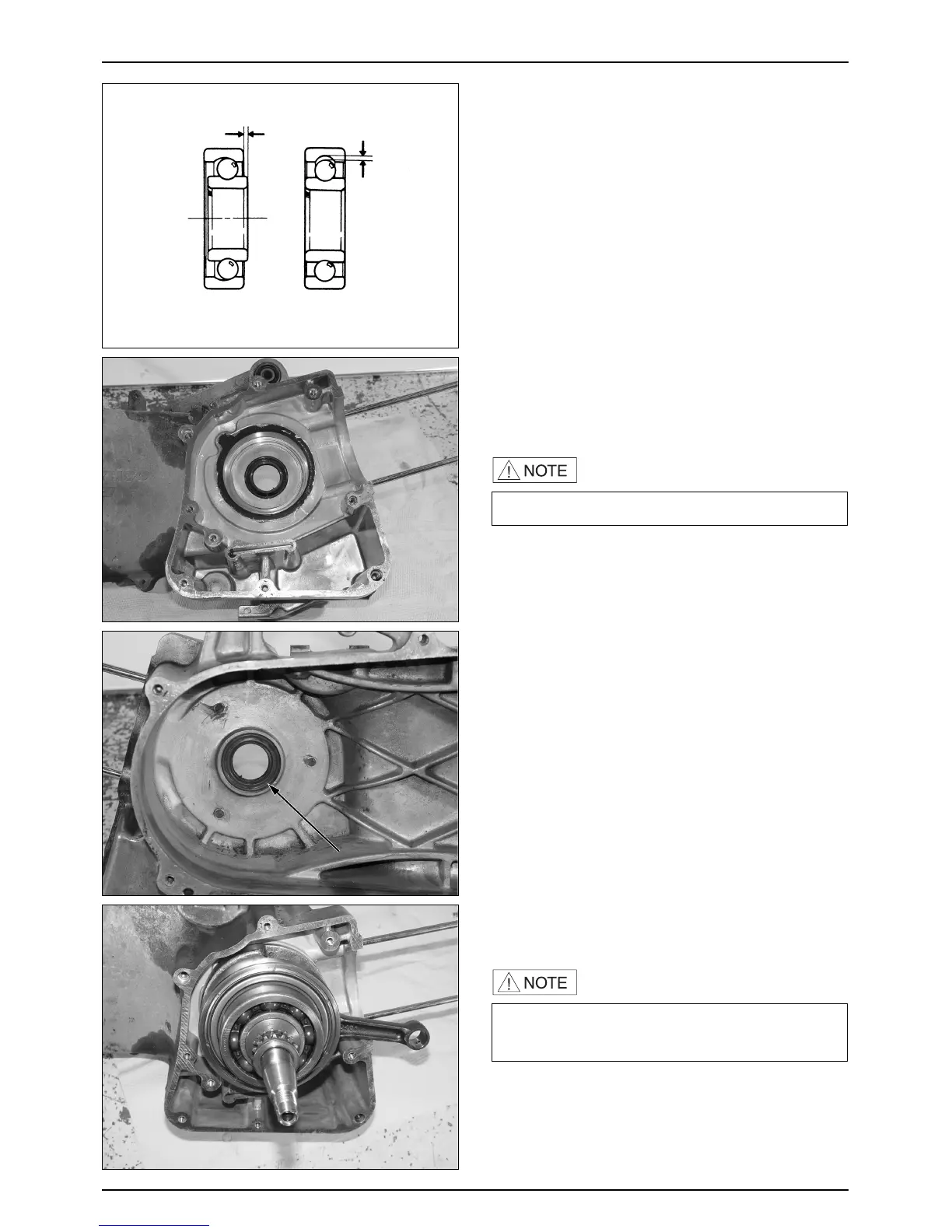

● Install a new oil seal into the LH. crankcase.
● Measure the crankshaft bearing play.
SERVICE LIMITS :
AXIAL : 0.20mm replace if over
RADIAL : 0.05mm replace if over
CRANKCASE INSTALLATION
● Clean off all gasket material from the crankcase mating
surfaces.
● Place the LH. crankcase down and install the
crankshaft into the LH. crankcase.
·Avoid damaging the oil seal.
·Apply grease to the lip of the oil seal.
PLAY
AXIAL RADIAL
PLAY
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
OIL SEAL
·Avoid damaging the crankcase mating surfaces.
