DAELIM S2 250 Service Manual

13-2
FINAL REDUCTION
FINAL REDUCTION

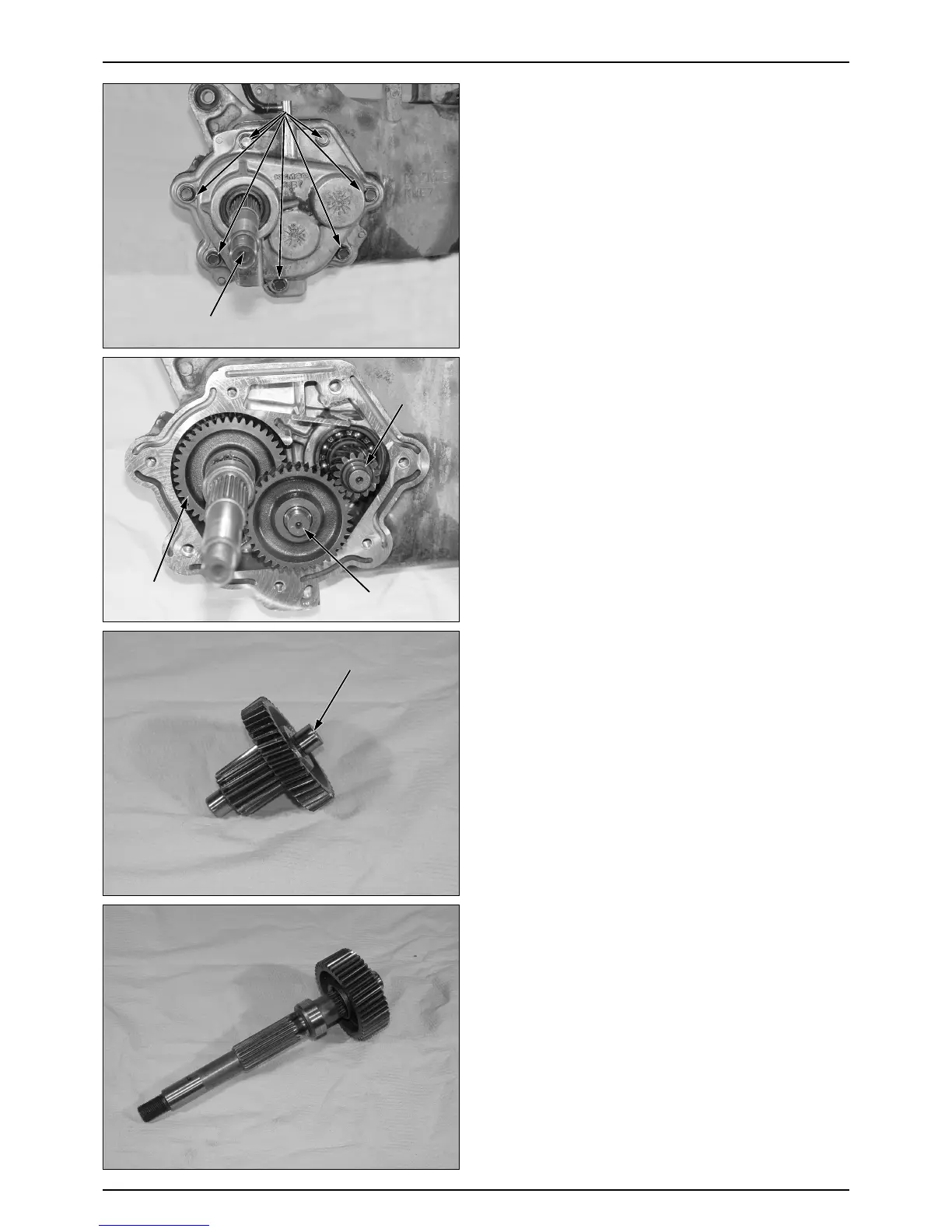

DISASSEMBLY
● Remove the exhaust muffler.
● Remove the rear brake caliper.
● Remove the RH. rear shock absorber.
● Remove the rear fork.
● Remove the rear wheel.
● Remove the left crankcase cover.
● Remove the clutch/driven pulleys.
● Drain the transmission gear oil into a clean container.
● Remove the transmission case cover bolts.
● Remove the transmission case cover.
● Remove the gasket and dowel pins.
● Remove the final gear and countershaft.
FINAL REDUCTION
INSPECTION
● Inspect the countershaft and gear for wear or damage.
● Inspect the final gear and final shaft for wear, damage
or seizure.
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL SHAFT
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
FINAL GEAR
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
COUNTER SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
DRIVE SHAFT
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
BOLTS
