FINAL REDUCTION

● Check the LH. crankcase bearings for excessive play

and inspect the oil seal for wear or damage.

● Inspect the drive shaft and gear for wear or damage.

● Check the transmission case covers bearings for

excessive play and inspect the final shaft bearing oil

seal for wear or damage.

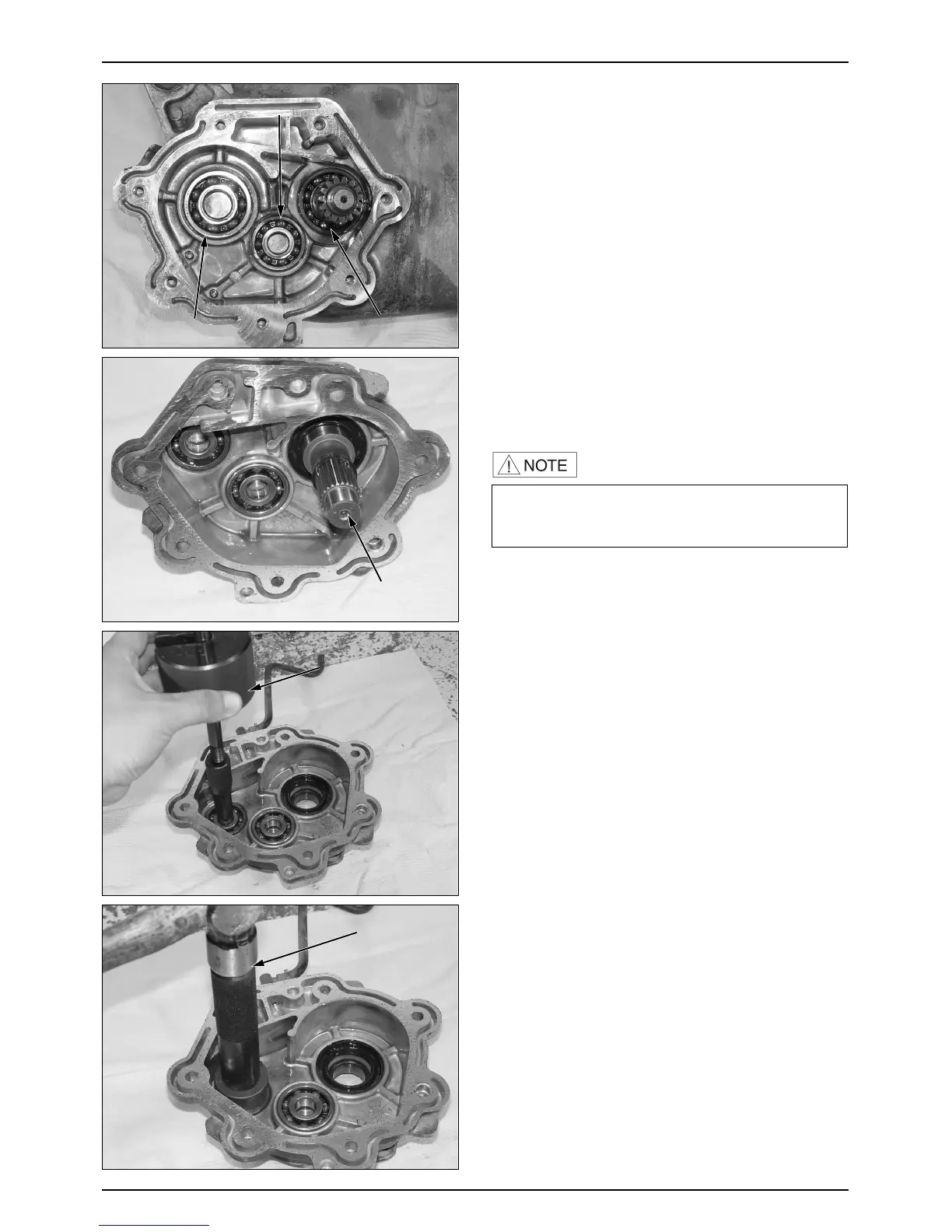

BEARING REPLACEMENT

(TRANSMISSION CASE COVER)

● Remove the transmission case cover bearings using the

bearing remover.

● Remove the final shaft oil seal.

● Drive new bearings into the transmission case cover.

COUNT SHAFT BEARING

FINAL SHAFT BEARING

FINAL SHAFT

DRIVE SHAFT BEARING

BEARING REMOVER, 15mm

PILOT, 15mm

•Do not remove the transmission case cover except

for necessary part replace-ment. When replacing the

drive shaft, also replace the bearing and
