DAELIM S2 250

13-4
FINAL REDUCTION
BEARING REPLACEMENT
(TRANSMISSION CASE COVER)

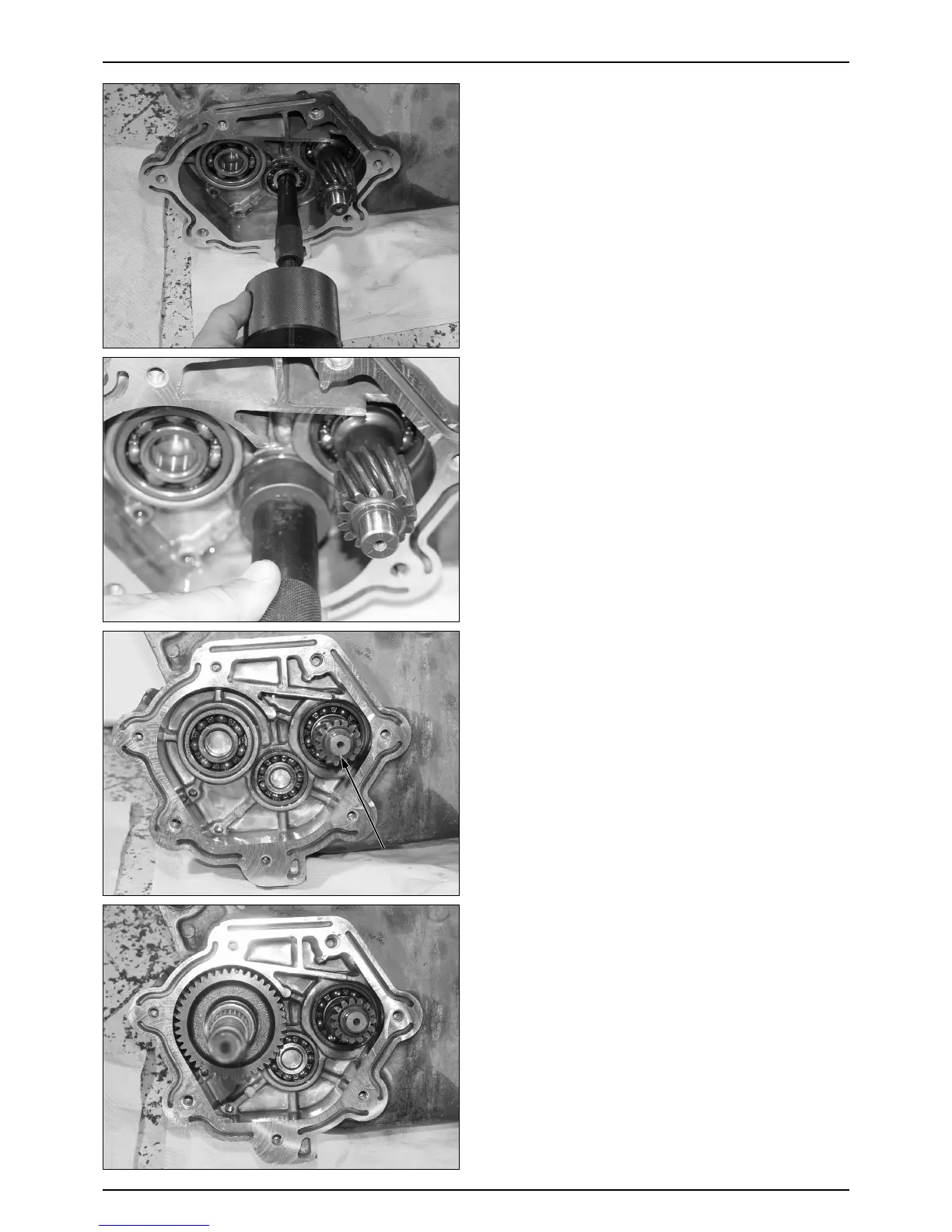

● Remove the transmission case cover bearings using the
bearing remover.
● Remove the final shaft oil seal.
● Install the final gear and final shaft into the left
crankcase.
FINAL REDUCTION
ASSEMBLY
● Install the drive shaft into the left crankcase.
● Drive new bearings into the left crankcase.
● Install a new drive shaft oil seal.
