FINAL REDUCTION

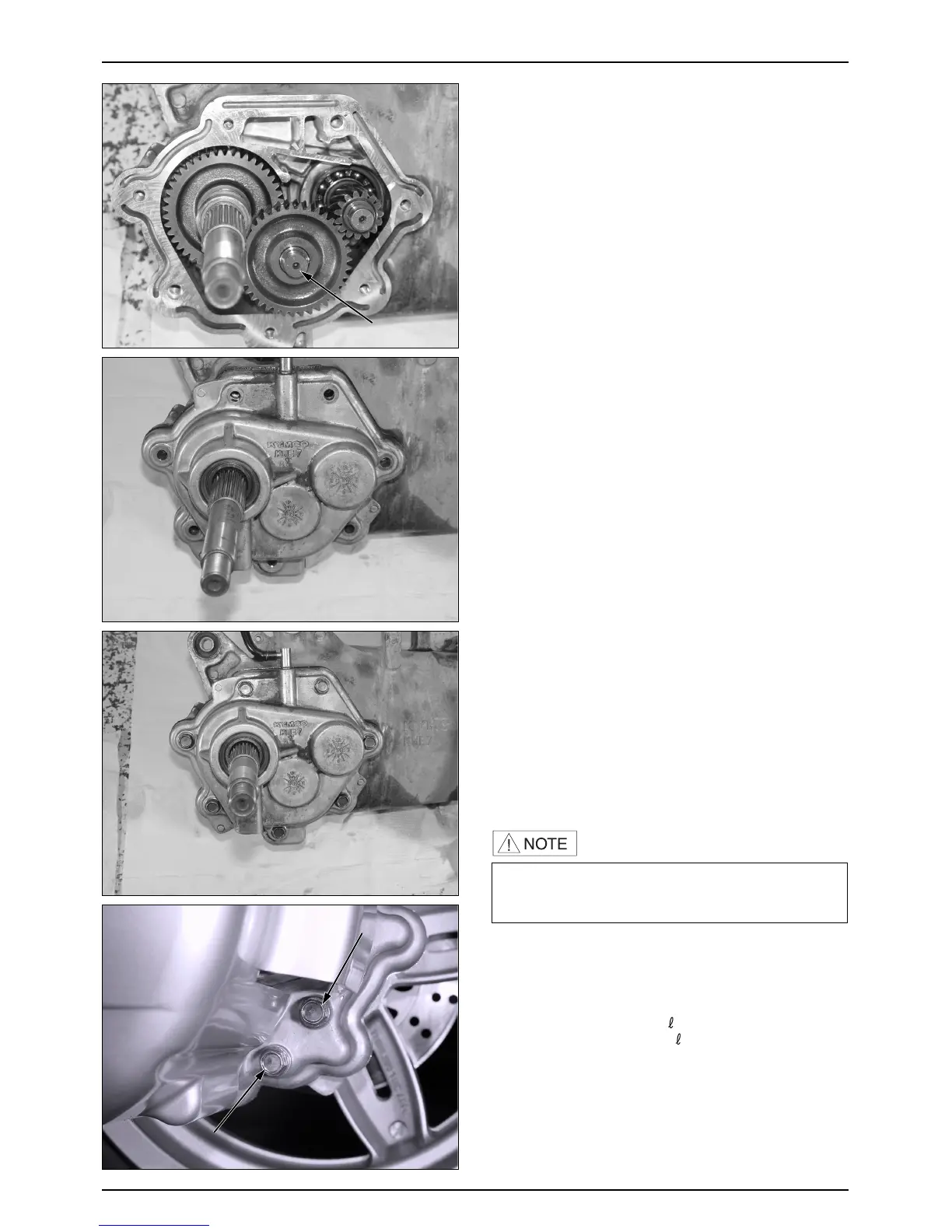

● Install the countershaft and gear into the left crankcase.

● Install the resin washer onto the counter-shaft.

● Install the dowel pins and a new gasket.

● After installation, fill the ransmission case with the

specified oil.

● After installation, fill the ransmission case with the

specified oil.

SPECIFIED GEAR OIL : SAE90#

OIL CAPACITY :

At disassembly : 0.2

At change : 0.18

● Install and tighten the oil check bolt.

TORQUE VALUE : 0.78~1.18kgf

● Start the engine and check for oil leaks.

● Check the oil level from the oil check bolt hole and add

the specified oil to the proper level if the oil level is

low.

● Install and tighten the transmission case cover bolts.

● Install the clutch/dirven pulley.

● Install other removed parts in the reverse order of

removal.

● Install the transmission case cover.

•Place the motorcycle on its main stand on level

ground.

•Check the oil-sealing washer for wear or damage.

COUNTERSHAFT

OIL CHECK BOLT HOLE

DRAIN BOLT
