18-6
STARTER SYSTEM

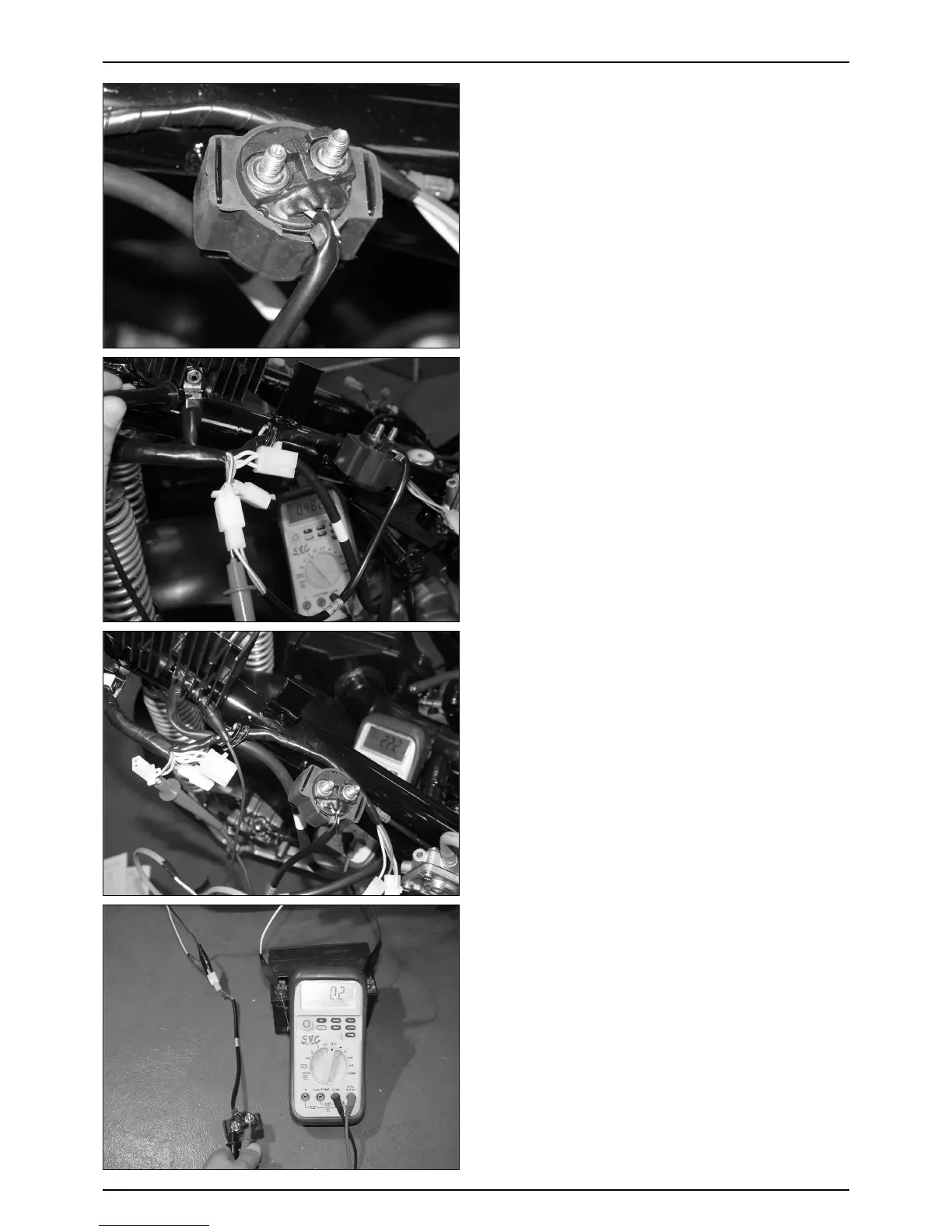

Starter magnetic switch voltage
● Measure the voltage between the yellow / red wire (+)
and ground at the starter magnetic switch connector.
● If battery voltage appears only when the starter switch
is pressed, it is normal.
Starter magnetic switch ground line
● Disconnect the wire connector from the starter
magnetic switch and check for continuity between the
ground wire (green / yellow) and ground.
OPERATION CHECK
● Disconnect the magnetic switch wire connector.
● Apply battery voltage between terminals, when the
yellow / red wire is connected to the positive (+)
battery terminal and the green / yellow wire to the
negative (-) battery terminal.
● If there is continuity between battery and motor
terminal, it is normal.
REMOVAL
● Release the seat lock with the main key.
● Remove the luggage box.
● Remove the center cover.
● Remove the battery (+) cable from the starter magnetic
switch terminal.
● Remove the starter motor cable from the starter
magnetic switch terminal.
● Disconnect the yellow / red connector and green /
yellow connector from the wire harness.
● Remove the starter magnetic switch from the switch
setting bracket securing the frame.
● Install in the reverse order of removal.
