DAELIM S2 250

18-5
STARTER SYSTEM

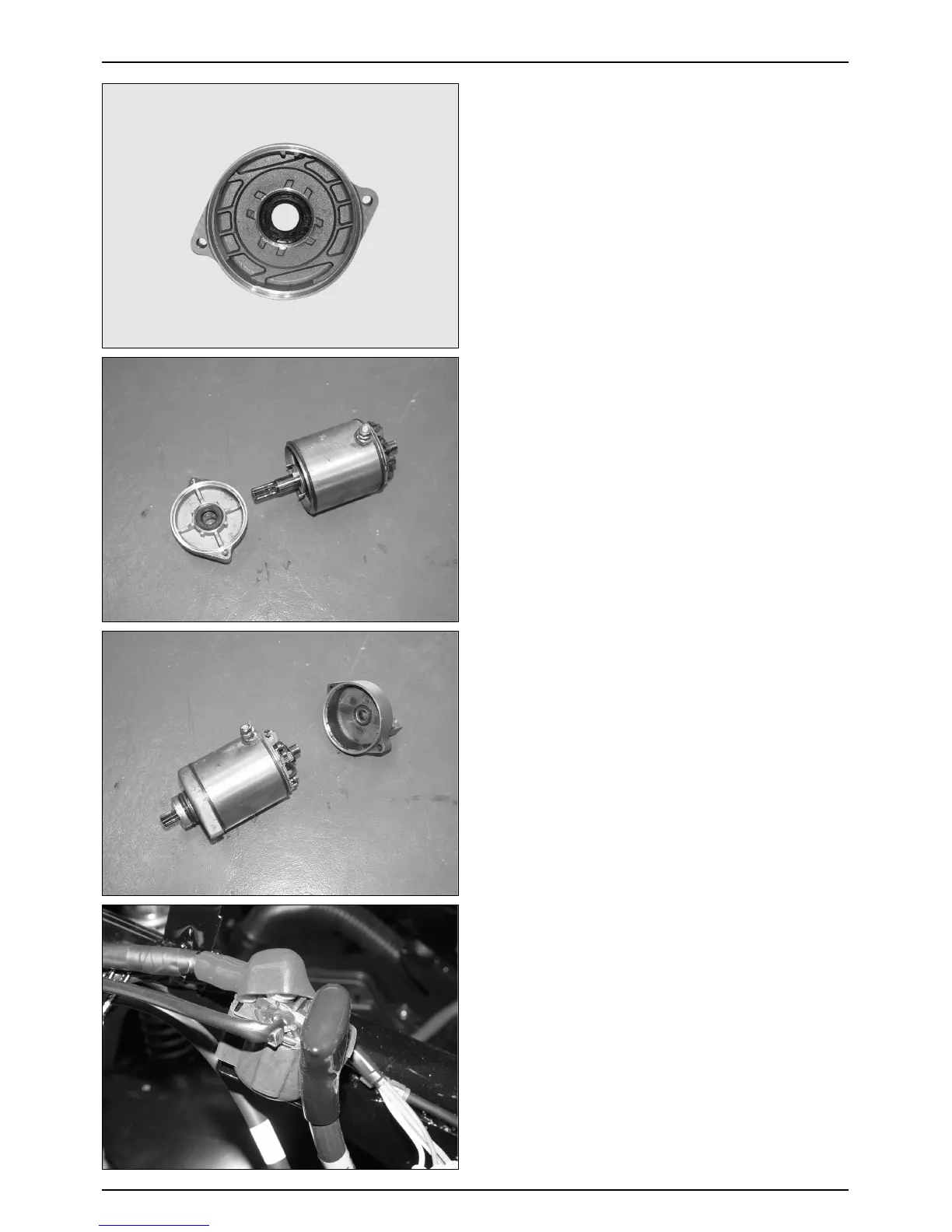

ASSEMBLY
● Apply grease to the dust seal in the front cover.
● Install the brushes onto the brush holders.
● Apply a thin coat of grease to the two ends of the
armature shaft.
● Insert the commutator into the front cover.
● Install a new O-ring to the front cover.
● Install the starter motor case, aligning the tab on the
motor case with the groove on the front cover.
● Tighten the starter motor case screws.
STARTER MAGNETIC SWITCH
INSPECTION
● Check if the starter magnetic switch “clicks” when it is
turned ON.
-Clicks →·Poorly connected battery terminal and
motor terminal of the switch. (Check
the starter magnetic switch)
-No clicks →·No starter magnetic switch input
voltage. (Faulty relay ground line and
starter magnetic switch)
● Check if the needle bearing in the front cover turns
freely and has no excessive play. Replace if necessary.
● Check the dust seal for wear or damage.
