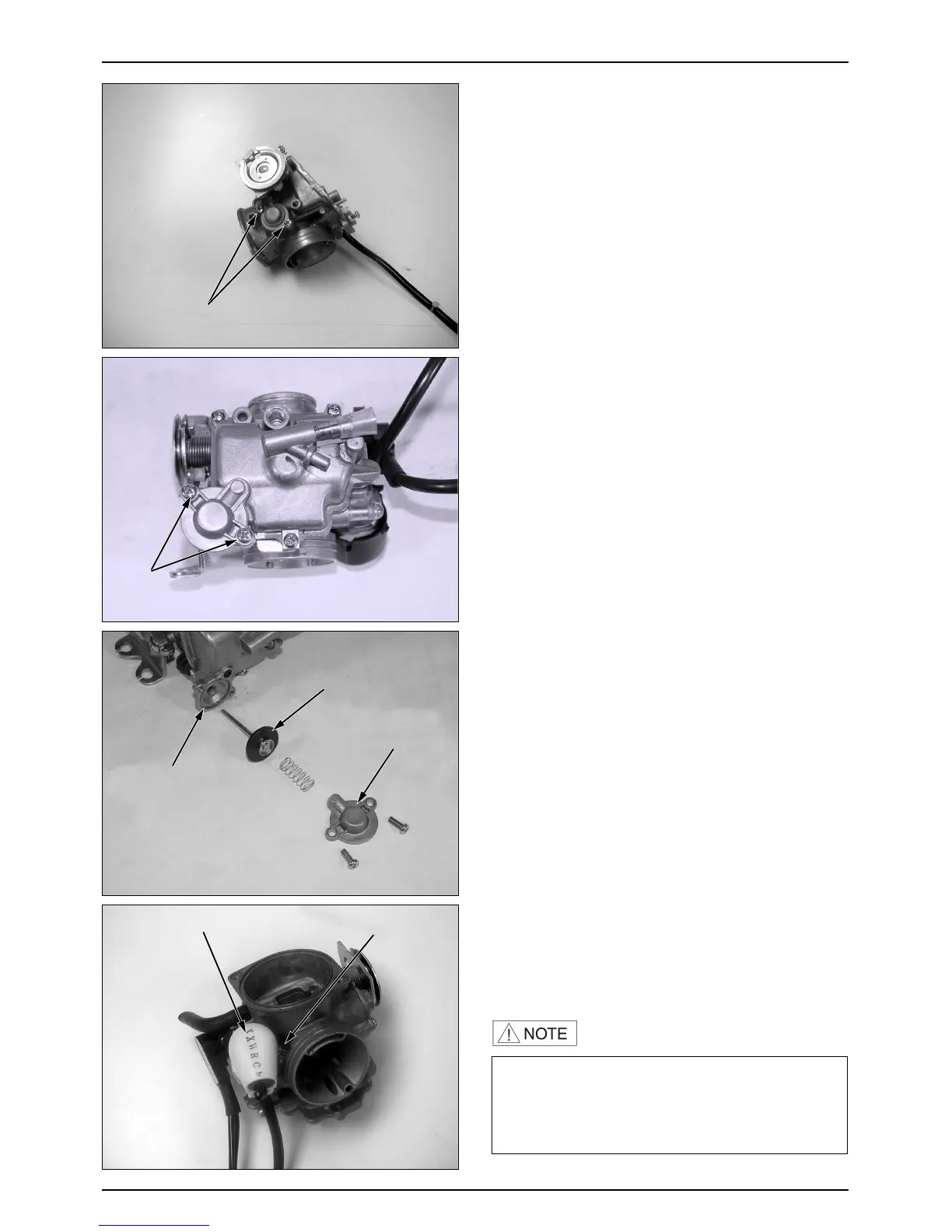

FUEL SYSTEM

● Install and tighten the two screws attaching the air cut-

off valve cover.

● Connect the hose.

•Insert the auto bystarter into the carburetor body

until it bottoms and position the set plate into the

upper groove in the bystarter.

•Install the set plate with its round face facing down.

ACCELERATING PUMP

DISASSEMBLY

● Remove the two accelerating pump cover screws and

accelerating pump cover.

● Remove the spring and accelerating pump diaphragm.

AUTO BYSTARTER

INSTALLATION

● Install the auto bystarter and set plate.

● Install and tighten the two screws.

INSPECTION

● Inspect the accelerating pump diaphragm for cracks,

damage or deterioration. Replace if necessary.

● Assemble the accelerating pump in the reverse order of

disassembly.

SCREWS

O-RING

DIAPHRAGM

COVER

AUTO BYSTARTER

SCREWS
