5-10

FUEL SYSTEM

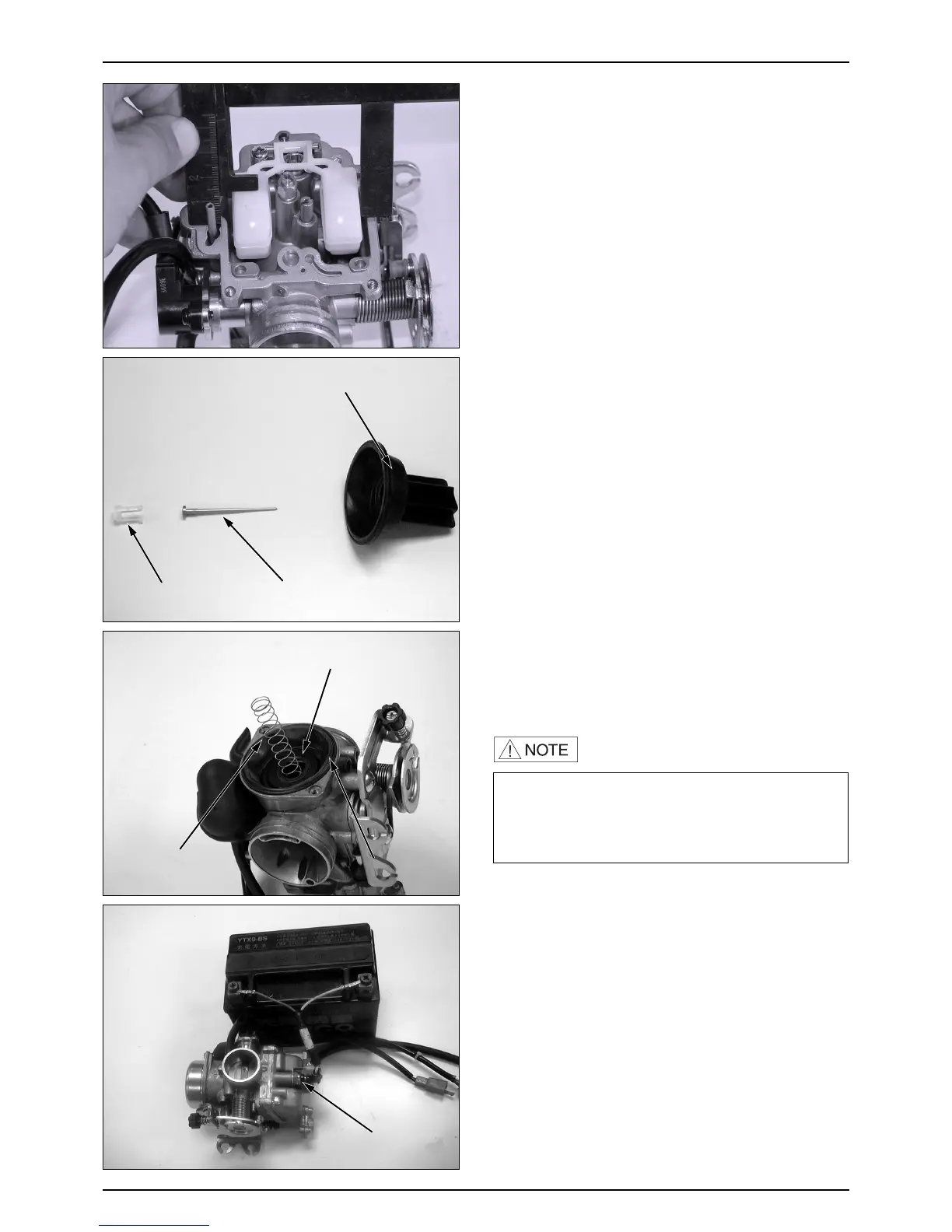

FLOAT LEVEL INSPECTION

● Install the float valve, float and float fin.

● Measure the float level at the location of the main jet

(just contacting the float valve)

Float Level : 18.5

±1.0mm

● Replace the float if the level is incorrect.

● Check the operation of the float and then reinstall the

float chamber.

VACUUM CHAMBER ASSEMBLY

● First install the jet needle and spring into the vacuum

chamber and then install the needle holder.

● Install the vacuum piston into the carburetor body.

● Install the spring.

● Install the vacuum chamber cover and tighten it with

the two screws.

● Check the heater with battery.

● If the heater is getting hot, means the heater without

problem, otherwise the heater has to be changed.

•Be careful not to let the diaphragm slip.

•If the diaphragm cannot be positioned correctly

because of expansion, dry the diaphragm before

installation.

VACUUM PISTON

JET NEEDLE

VACUUM PISTON

HEATER

DIAPHRAGM

SPRING

NEEDLE HOLDER
