DAELIM S2 250

6-8
COOLING SYSTEM

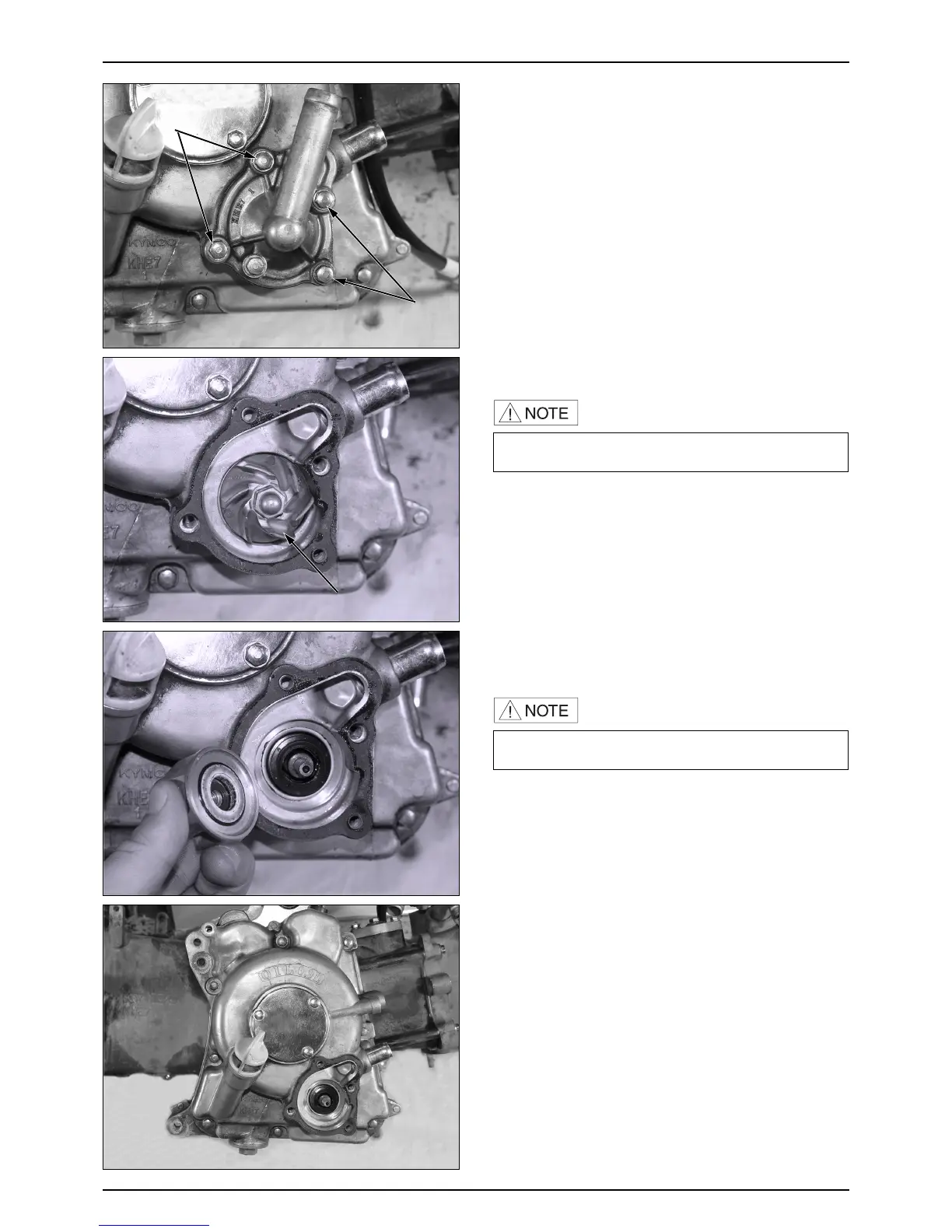

● Remove the 4 bolts and the water pump cover.
● Remove the gasket and 2 dowel pins.
● Remove the water pump impeller.
·The impeller has left hand threads.
● Inspect the mechanical (water) seal and seal washer for
wear or damage.
·The impeller has left hand threads.
WATER PUMP SHAFT REMOVAL
● Disconnect the water hose from the right crankcase
cover.
● Remove the eight bolts attaching the right crankcase
cover.
