DAELIM S2 250

6-9
COOLING SYSTEM

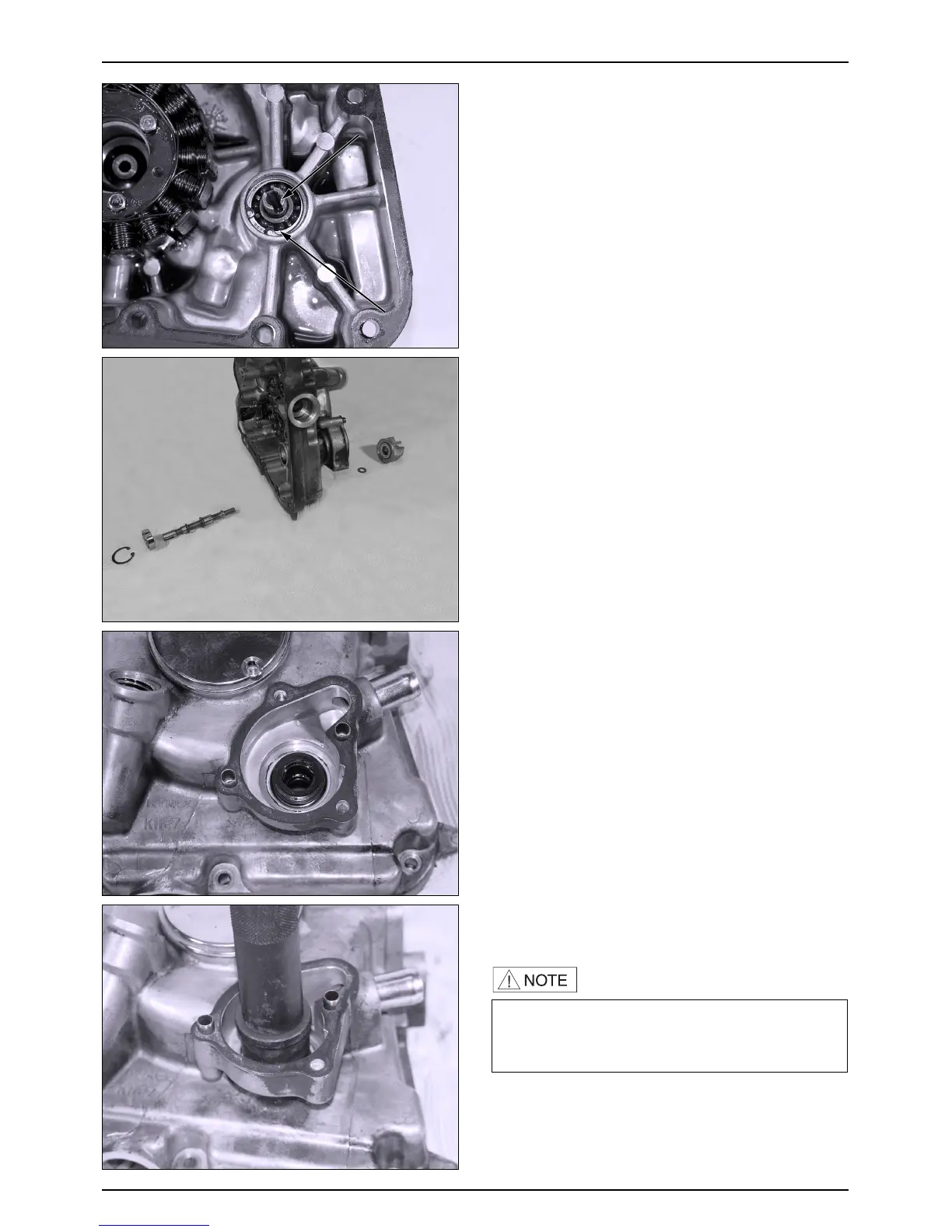

● Remove the water pump bearing snap ring from the
water pump assembly.
● Remove the water pump shaft and inner bearing.
● Remove the water pump shaft outer bearing.
·Apply sealant to the right crankcase cover fitting
surface of a new mechanical seal and then drive in
the mechanical seal.
MECHANICAL SEAL REPLACEMENT
● Drive the mechanical seal out of the water pump
assembly from the inside.
● Drive in a new mechanical seal using a mechanical
seal driver.
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
WATER PUMP SHAFT
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
SNAP RING
