DAELIM S2 250 Service Manual

8-3
LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
DRIVE FULLEY

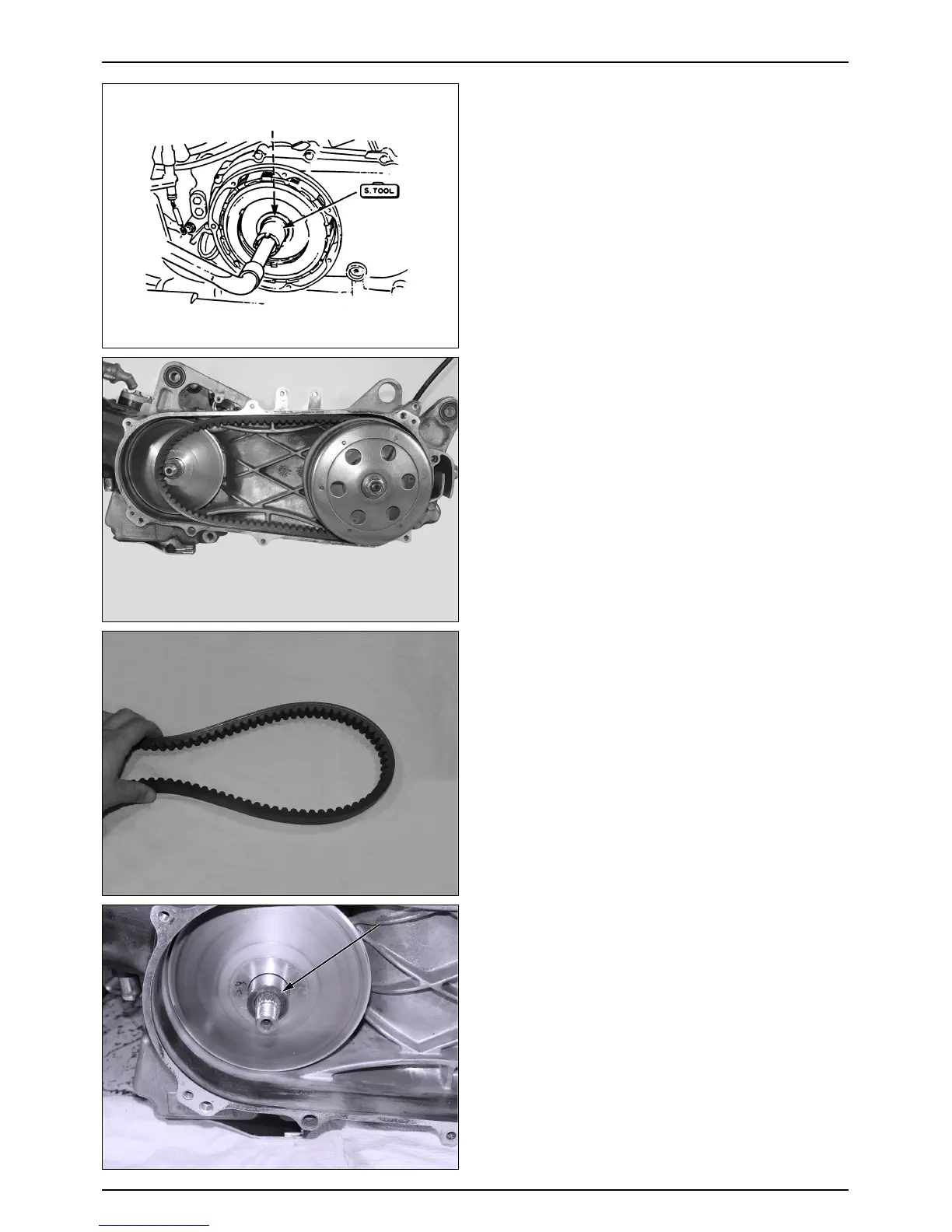

REMOVAL
● Remove the LH. crankcase cover.
● Loosen the Drive face flange nut with the drive face
holder.
● Remove the drive face.
● Remove the drive bolt from the movable drive face.
● Remove the movable drive face assembly.
● Remove the drive pulley collar.
INSPECTION
● Check the drive bolt for cracks sepuration or abnormal
or excessive wear.
● Inspect the drive belt width.
SERVICE LIMIT : 22.0mm replace if below
LOCK WASHER/LOCK NUT
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
COLLAR
LOCK NUT
WRENCH
