DAELIM S2 250 Service Manual

8-4

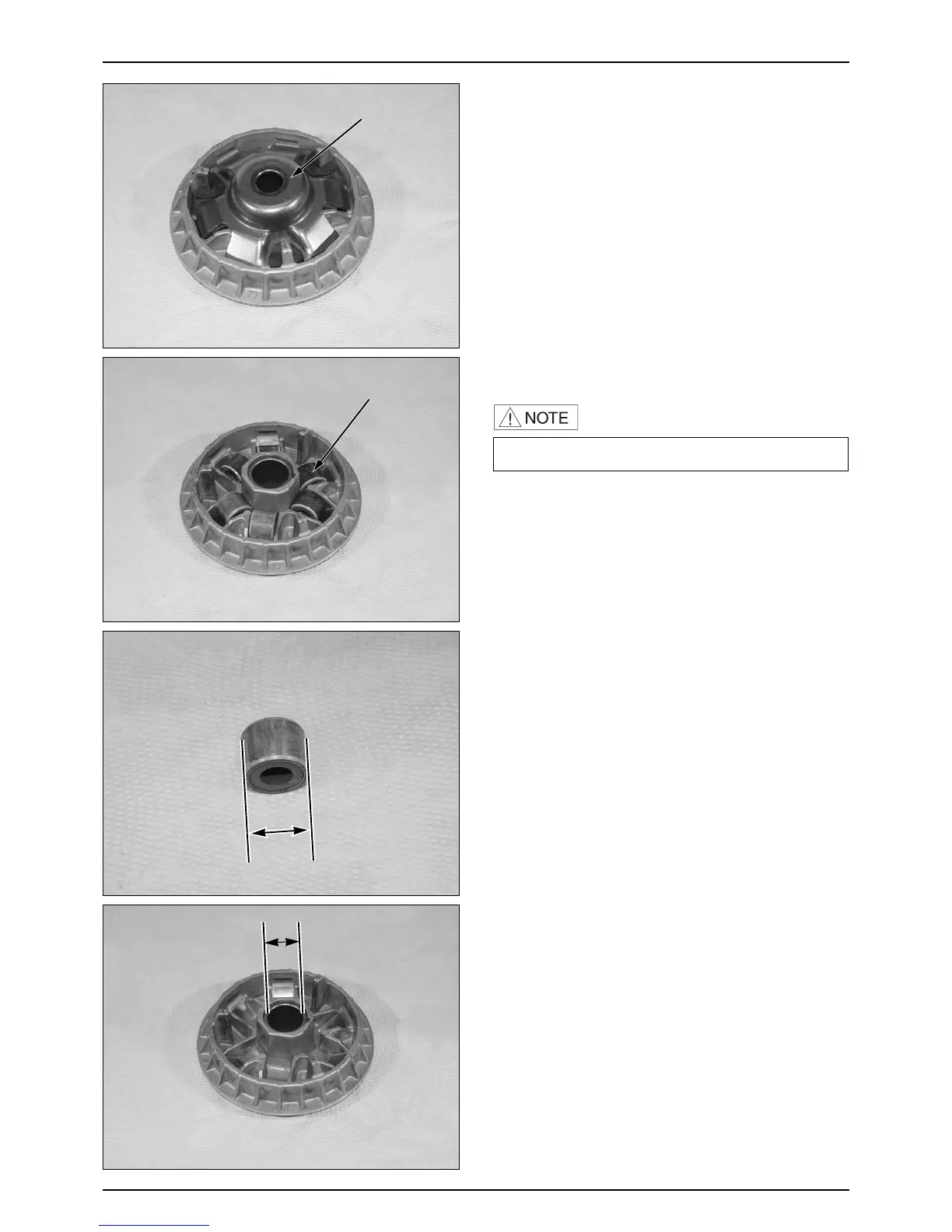

LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
DISASSEMBLY
● Remove the ramp plate.
● Remove the weight rollers.
● Check the weight roller for wear or damage.
● Measure the weight roller O.D.
SERVICE LIMIT : 22mm replace if below
● Measure the movable drive face bushing I.D.
SERVICE LIMIT : 27.13mm replace if over
·Check the pump shaft to rotate smoothly.
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
