DAELIM S2 250 Service Manual

8-5

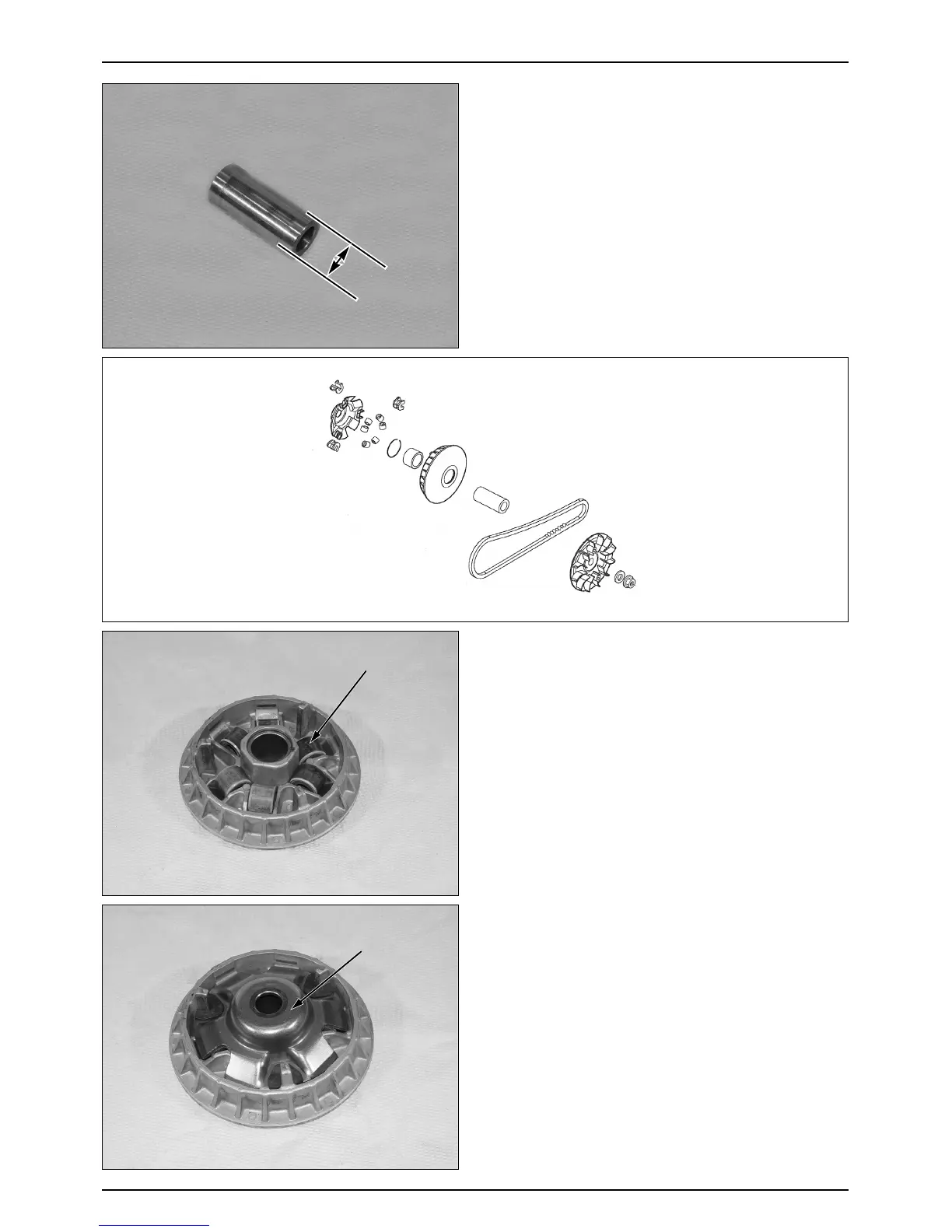

LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
● Check the drive pully collar for damage or wear.
● Measure the O.D of the drive pully collar sliding
surface.
SERVICE LIMIT : 26.9mm replace if below
● Install the ramp plate.
● Install the weight rollers into the movable face.
ASSEMBLY
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
RAMP PLATE
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
WEIGHT ROLLERS
