DAELIM S2 250 Service Manual

8-6
LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

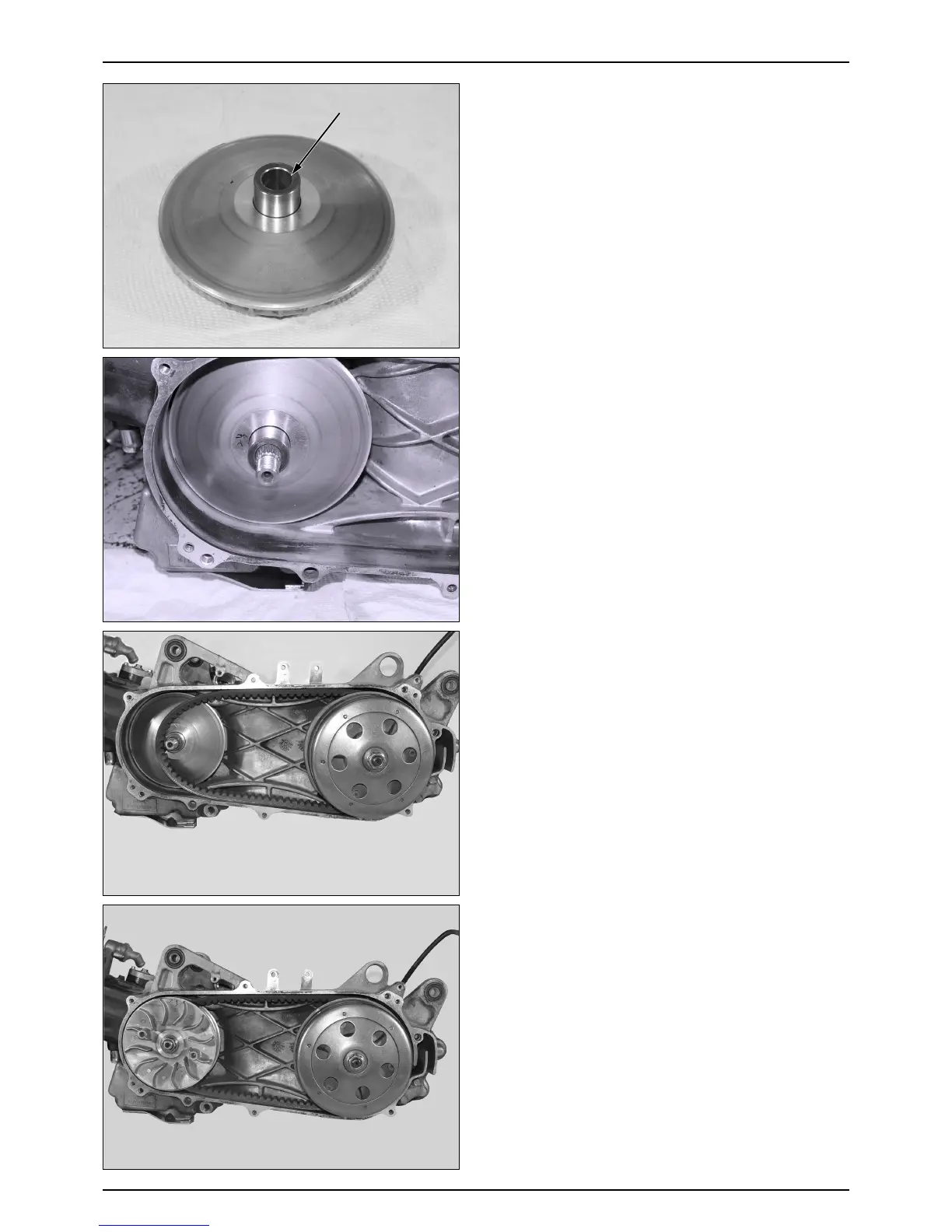

● Insert the drive pulley collar into the movable drive
face.
● Install the movable drive face onto the crankshaft.
● Lay the drive belt on the driven pulley.
● Set the drive belt on the drive pulley collar.
● Install the washer and drive nut into the drive pulley
face temperarilly.
