8-9
LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

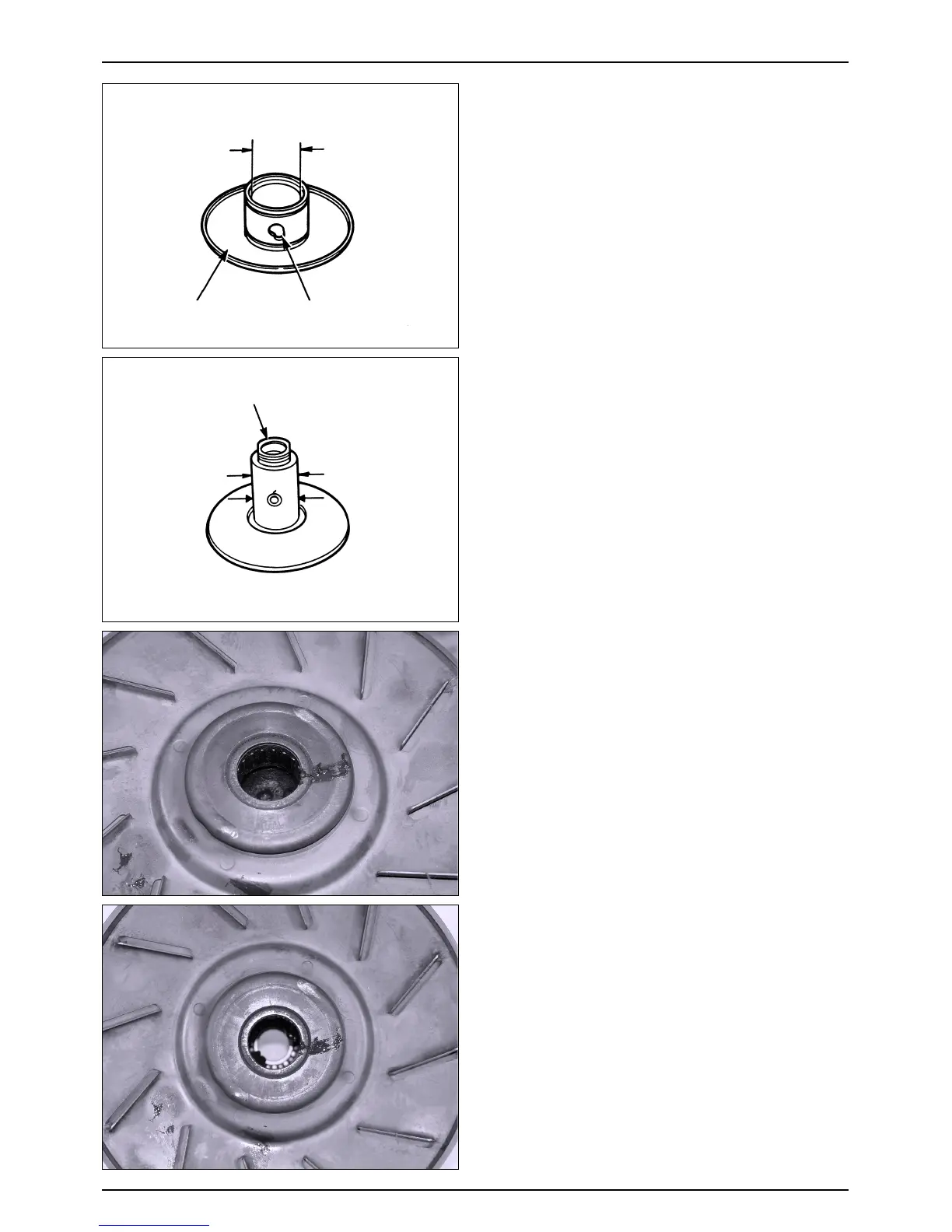

● Check the driven face assembly for wear or damage.
● Measure the driven face O.D.
SERVICE LIMIT : 39.85mm replace if below
● Check the movable driven face for wear or damage.
● Measure the movable driven face I.D.
SERVICE LIMIT : 40.06mm replace if over
DRIVEN PULLEY FACE BEARING
REPLACEMENT
● Remove the inner needle bearing out of the driven
pulley face.
● Remove the snap ring and drive the outer bearing out
of the driven face.
● Apply grease to the outer bearing.
● Install a new outer bearing into the driven face with the
sealed end facing up.
● Seat the snap ring in its groove.
● Apply grease to the driven face bore areas (9~9.5g)
MOVABLE
DRIVEN FACE
DRIVEN FACE
GUIDE GROOVE
