DAELIM S2 250

8-10

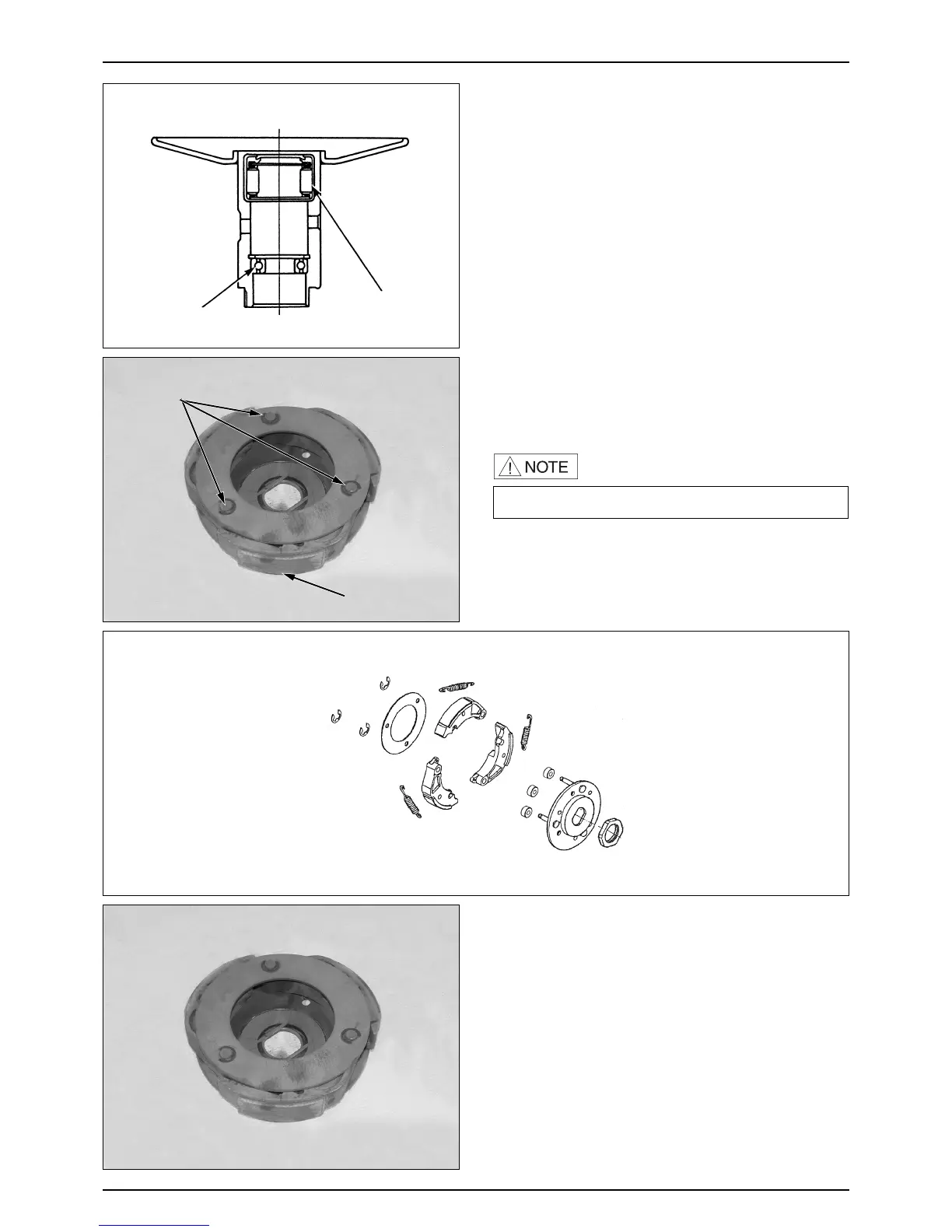

LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
● Press a new needle bearing into the driven face.
CLUTCH DISASSEMBLY
● Remove the circlips and retainer plate to disassemble
the clutch.
CLUTCH ASSEMBLY
● Install the damper rubbers on the drive plate pins.
● Install the clutch weights/shoes and clutch springs onto
the drive plate.
● Install the retainer plate and secure with the circlips.
•Keep grease off the clutch linings.
BALL BEARING
(OUTER)
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CIRCLIPS
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
CLUTCH LINING
NEEDLE BEARING
(INNER)
