EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Removal and installation 95XF series
4-26
3
4
5
6
7
8
10
11
12
13
14
9
S7 00 401
2
1

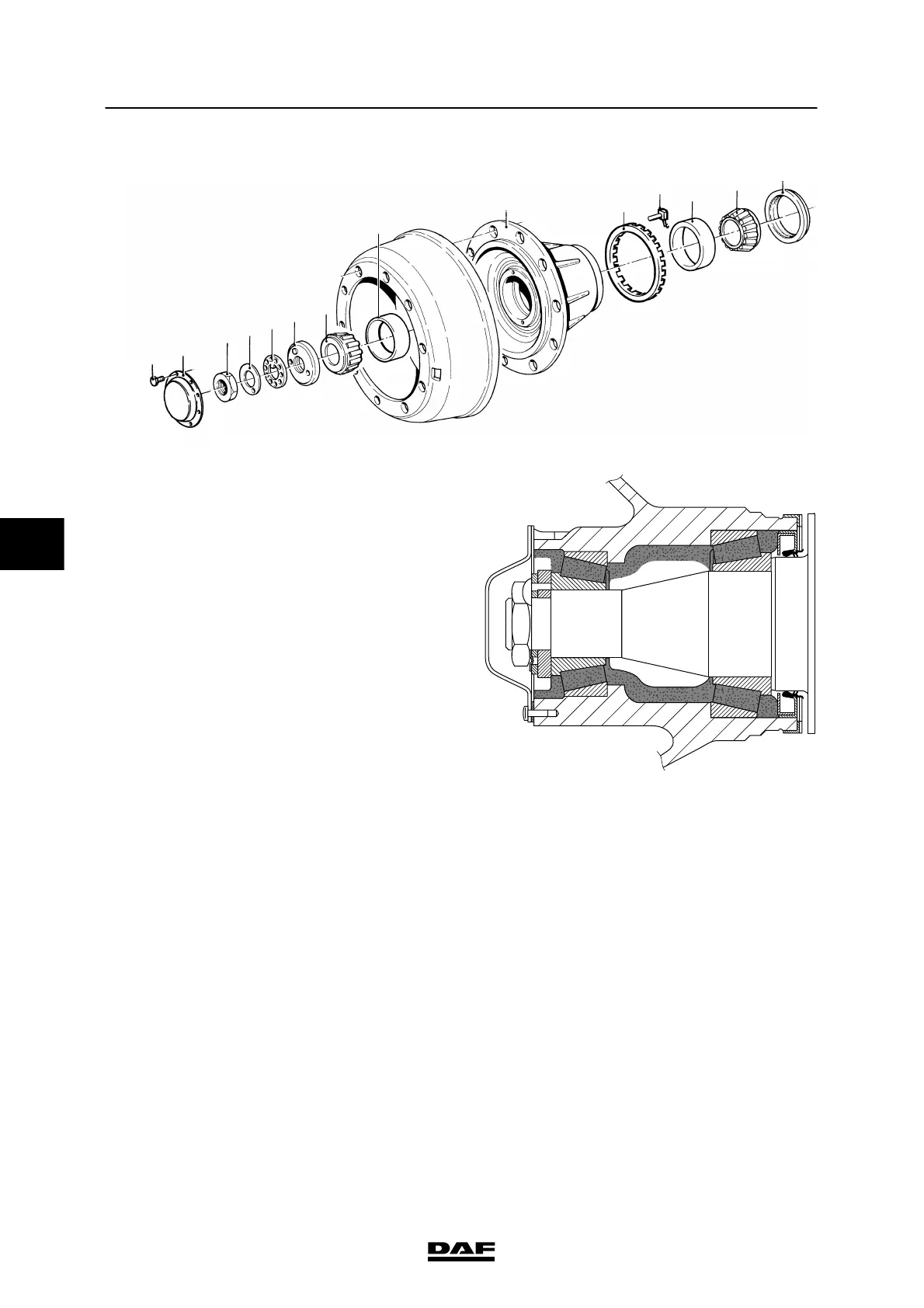

Installing the wheel hub
1. Check the wheel hub and the wheel
bearings for wear and damage, see
“Inspection and adjustment”.
2. Fit a new wheel speed sensor ring (10) to
the hub, if necessary.
3. Fit new wheel bearings into the hub, if
necessary.
4. Blow-dry the wheel bearings (7) and (13)
using c ompressed air.
5. Fill the wheel bearings with the specified
wheel bearing grease.
Also apply a layer of grease to the wheel
bearing c ircumference.
6. Fit the wheel bearing (13) into the hub (9).
7. Fill the inside circumference of the hub with
wheel bearing grease.
8. Fit a new hub seal (14) in the hub (9).
9. Apply a little grease to the sealing lips of the
seal (14).
10. Check that the wheel speed sensor (11) is
correctly clamped in the stub axle. Replace
the c lamping sleeve of the sensor, if
necessary.
11. Position the wheel in front of the axle
journal using the tyre lift.
Fit the outer wheel bearing (7) into the hub
so that the outer wheel bearing can also
serve as a guide when installing the hub.
S7 00 140
5
200424
