Components
3.4.1 Led Status

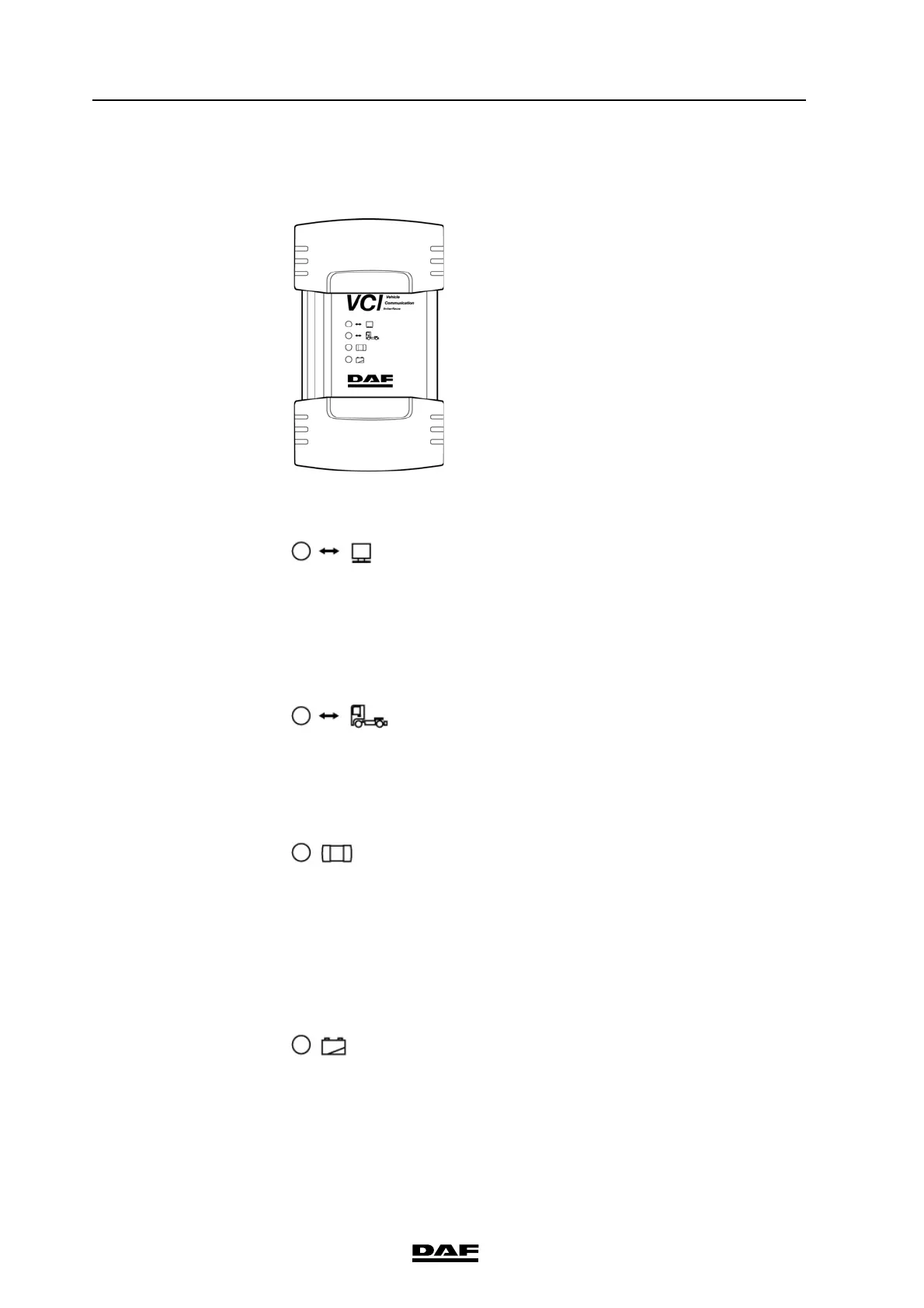

Figure 3-4 VCI Front view LED
Yellow LED: DAVIE XDc Communication
On: Communication
Slow flashing: WLAN-Mode changing Adhoc <--> Infrastructure
Off No communication
Blue LED: Vehicle communication
On: Communication
Off: No vehicle communication
Green LED: VCI Internal status
On: Firmware is running
Slow flashing: Update
Fast flashing: Over temperature
Off VCI off or internal error
Red LED: Battery status
On: Battery malfunction
Slow flashing: Not ready for buffering and last 10 seconds of
buffering
Fast flashing: Over temperature, no charging possible
Off: No battery or battery ready
