DAVIE XDc II
Administration
Figure 8-11

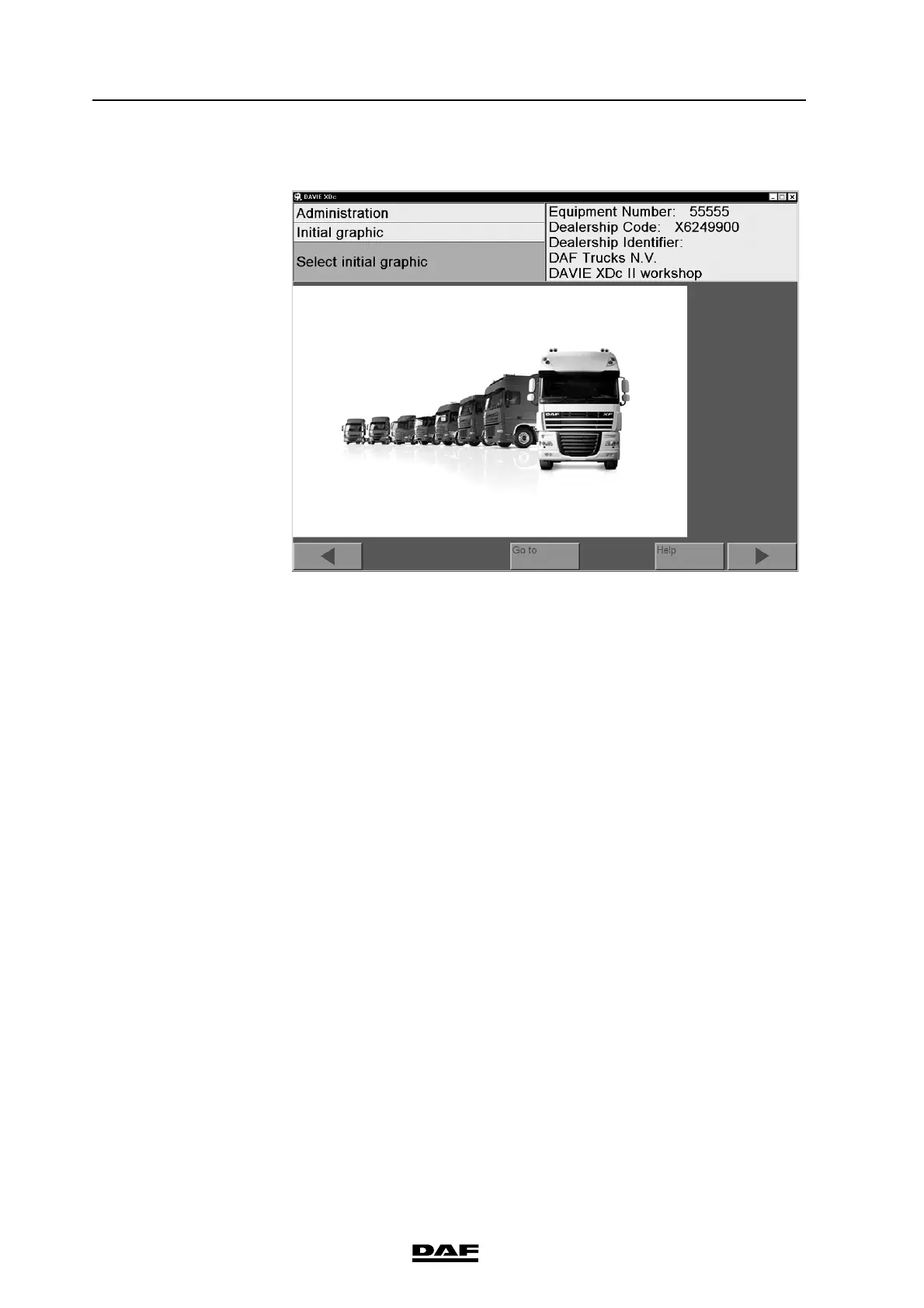

Select "Initial Graphic
"
8.8
Version information
When you select the "Version information"
function in the function list, the
screen displays ver
sion information ab
out
the installed Runtime, Application
and Parts Rapido Sub
set.
91
93
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Notices
9
Important Safety Notices
10
2 General Information
13
General Notes
13
Safety Instructions
13
Designated Use
14
Associated Documents
14
EC Declaration of Conformity
15
Technical Data
16
Laptop
16
Vehicle Communication Interface (VCI)
16
3 Components
19
Overview
19
DAVIE XDC II Laptop
19
DAVIE XDC II Software
20
Vehicle Communication Interface (VCI)
20
Led Status
22
VCI Battery
23
Buffering
23
Charging
23
WLAN RF Exposure
24
4 Operation
25
Power-Up
25
Start-Up and Exit
25
Administrator Login on a Newly Delivered or Installed DAVIE XDC II
25
User Login
32
Touchscreen (Optional)
33
Use of the Screens
34
Logout
36
How to Switch Wired or Wireless Communication
37
5 Vehicle Identification
39
Start of Diagnostic Session
39
Automatic Identification
40
Manual Identification
42
Deselect ECU Installation Variant
45
6 Direct Testing
47
Overview
47
Vehicle Identification
48
Executing Test Procedures
50
Navigation Bar
52
Go to Button
53
Exit
54
Health Check
54
Fault Memory Contents
54
Documents
55
Test Plan
56
ECU Installation Variants
57
Direct Test Selection Screen
57
Use of Illustrations
57
Index Page
58
Explanation of Buttons on the Screen
59
7 Guided Diagnosis
61
Principle Op of Guided Diagnosis
61
Starting Guided Diagnosis
62
Vehicle Identification
62
Guided Entry
63
Guided Entry with Fault Code(S)
63
Health Check
64
Guided Entry with a Symptom
65
Test Plan
67
Test Plan Overview
67
Building a Test Plan Based on Fault Codes and Symptoms
68
Test Plan Screen Lay out
69
Executing Tests
70
Direct Test
71
Symptom Test or Check Test
71
Measurement Test
72
Function Component Selection
73
Extra Options
75
Fault Memory Contents
75
Deselecting Systems
76
Suspend Session
77
Quitting Guided Diagnosis
81
8 Administration
83
Overview
83
Start Administration
83
Select Function
85
Install Update
86
Install Update of a New Runtime CD
86
Install Update of a New Delivered Application CD
86
Install a Second Language
88
Install Update of a New Parts Rapido Subset CD
89
Install Update(S) from DAVIE XDC Download
89
Install Update from Parts Rapido Online
90
Change Language
90
Dealership Identifier
91
Initial Graphic
91
Version Information
92
Contents of Application Data
93
Passwords
93
Log Files
94
Helpdesk Log Files
96
Vehicle Test Files
96
9 VCI Configuration Manager
97
VCI Tray Icon
97
Start up the VCI Configuration Manager Program
99
Status Info
99
Basic Setup
101
Advanced Setup
102
Common Settings
105
10 Help
109
Overview
109
Start Help
109
Help Overview
110
Help on Topics
111
Help on the Selected Button
112
11 Troubleshooting
113
Classification
113
Computer Hardware
114
Laptop Self Test
114
Laptop Does Not Work Correctly
114
Touchscreen (Optional)
115
Software Installation
115
Windows Explorer Popup
115
CD Incompatible with Base-CD
116
Problems with Application Data
116
Problems with Vehicle Communication Interface (VCI)
117
Self-Test of the VCI Configuration Manager
117
VCI Configuration Manager Self-Test Error List
118
Wireless Communication Recovery
120
Fault Report to Local Helpdesk
121
12 Care and Maintenance
123
Visual Check of the DAVIE XDC II Components
123
Cleaning the Components
123
Cleaning the Laptop
123
Cleaning the VCI
123
Batteries
124
Laptop Battery
124
VCI Battery
124
Replace the VCI Battery
124
