DAF DAVIE XDc II User Manual

©
200706 7-11
Guided Diagnosis
DAVIE XDc II
NOTE
It is very important for Guided Diagnosis that the answers and implicitly at the
end of the test is corresponding with the vehicle behaviour.
Incorrect answers will lead to a different suspected element.
7.7.4.1 Direct test
When a Direct Test will be proposed, the same test as used for Direct Testing
will be used to determine the defectiveness of a component.

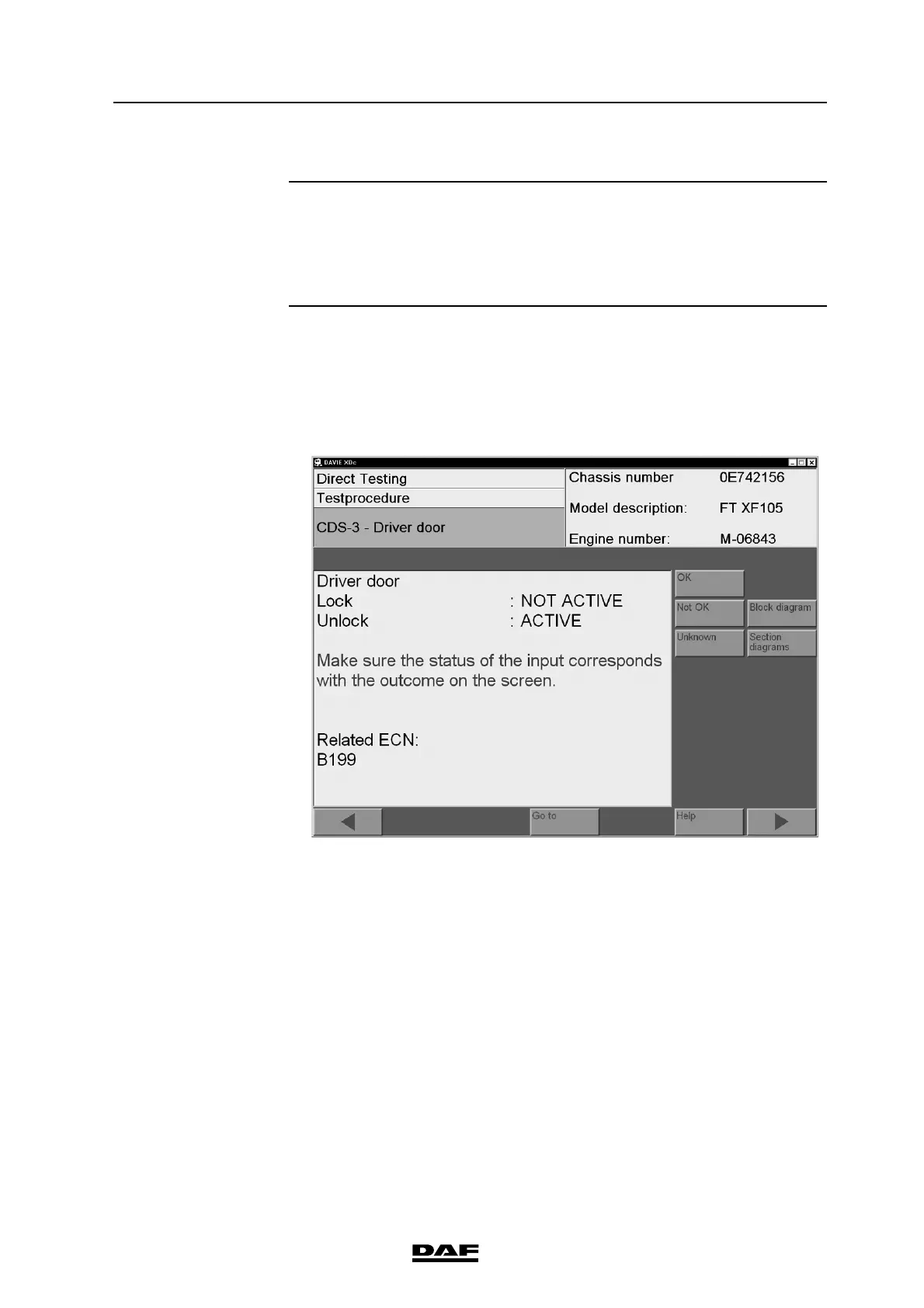

Figure 7-13 Example of a Direct test
7.7.4.2 Symptom test or Check test
When a test is proposed to check a symptom, Guided Diagnosis would like to
have more information on the vehicle behaviour. It will require some actions
from the user and will ask if the behaviour of the vehicle was as expected when
these actions were executed.
